Machine Features:
Semi-Electric Lifting System:
Electric lifting motor ensures smooth, stable vertical movement while reducing operator effort.

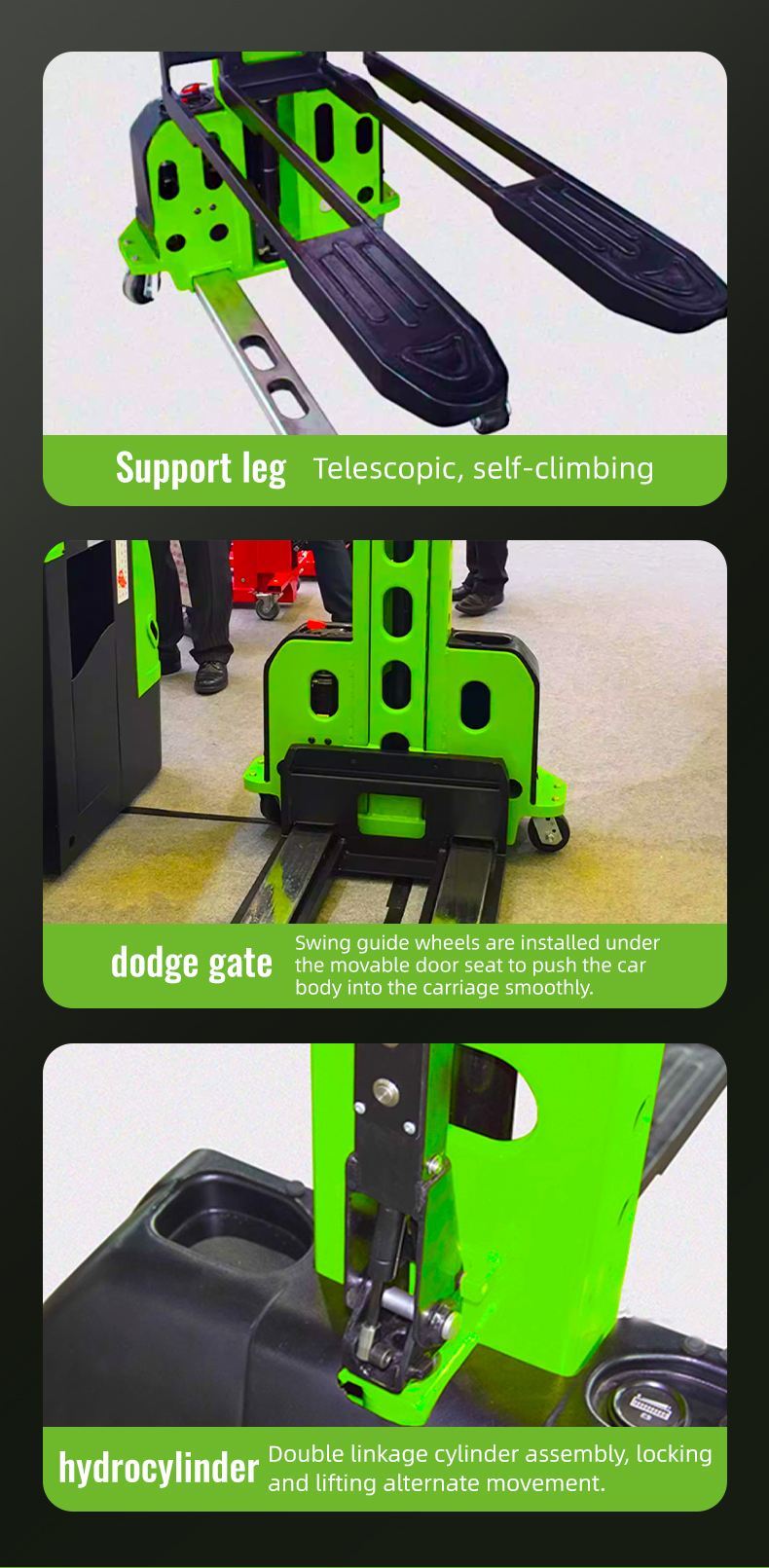

Telescopic Self-Climbing Support Legs:
Enhances adaptability to uneven surfaces and loading scenarios.
Double-Linkage Hydraulic Cylinder Design:
Alternating locking and lifting movements improve safety and lifting stability.
Swing Guide Wheels for Smooth Loading:
Guide wheels under the movable door seat help push the stacker smoothly into containers or trucks.
Solid Tire Configuration:
Wear-resistant solid tires provide reliable performance on indoor and outdoor surfaces.
Compact & Economical Design:
Optimized for warehouses seeking practical performance with controlled investment cost.
Products Specification:
| Item | Specification |
| Product Type | Semi-Electric Pallet Stacker |
| Operation Mode | Standing Operation |
| Drive Type | Rear-Wheel Drive (RWD) |
| Load Capacity | 1500 kg |
| Fork Length | 1150 mm |
| Fork Width | 680 mm |
| Fork Thickness | 60 mm |
| Lift Motor Power | 2 kW |
| Lifting Speed | 80 / 130 mm/s |
| Tire Type | Solid Tires |
| Structure | Platform Structure |
| Terrain Adaptability | Indoor Flooring / Outdoor Pavement / Rough Terrain |
| Support Leg | Telescopic, Self-Climbing |
| Warranty | 1 Year |
Products Pictures:
