Machine Features:
1. Energy-Saving Power System
Efficient electric drive reduces energy consumption while maintaining strong lifting and travel performance.
2. Ergonomic & Maneuverable Design
Compact structure and user-friendly controls allow precise handling in tight spaces and high-traffic work areas.
3. Advanced Technology Integration
Equipped with optimized control systems, enhanced stability, and smooth lift-and-travel performance for improved operational safety.
4. Reliable Construction
Built with high-strength components for long service life, stable operation, and reduced maintenance requirements.
5. Certified Quality Assurance
Manufactured under international safety and quality standards to ensure dependable performance in demanding work environments.
Products Specification:
| Category | Item | Unit | CPD 25 | CPD35 | CPD35 | CPD40 | CPD45 | CPD50 |
| Characteristics | Model Name | - | CPD 25 | CPD35 | CPD35 | CPD40 | CPD45 | CPD50 |
| Power Source | - | Electric | Electric | Electric | Electric | Electric | Electric | |
| Rated Capacity | kg | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | |
| Dimensions | Mast Extended Height(with brackrest) | mm | 4060 | 4275 | 4270 | 4250 | 4250 | 4250 |
| Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Mast Height, Lowered | mm | 2060 | 2080 | 2125 | 2350 | 2350 | 2350 | |
| Free Lift Height | mm | 140 | 145 | 150 | 150 | 150 | 150 | |
| Brackrest Height cauculated from the fork surface | mm | 1010 | 1225 | 1220 | 1250 | 1250 | 1250 | |
| Distance from the surface of the seat to the overhead guard | mm | 1035 | 1035 | 1035 | 1020 | 1020 | 1020 | |
| Overhead Guard Height | mm | 2090 | 2106 | 2106 | 2350 | 2350 | 2350 | |
| Overall Length(without forks) | mm | 2550 | 2690 | 2725 | 3195 | 3195 | 3195 | |
| Overall Length(with forks) | mm | 3620 | 3760 | 3795 | 4265 | 4265 | 4265 | |
| Fork Overhang | mm | 435 | 465 | 465 | 555 | 555 | 555 | |
| Wheel Base | mm | 1600 | 1700 | 1700 | 2100 | 2100 | 2100 | |
| Real Overhang | mm | 515 | 525 | 560 | 540 | 540 | 584 | |
| Min. Ground Clearance(from bottom of mast) | mm | 128 | 145 | 145 | 175 | 175 | 175 | |
| Overall Width | mm | 1150 | 1225 | 1225 | 1420 | 1420 | 1420 | |
| Lateral Fork Adjustment(Outside of Fork) (max./min.) | mm | 1024/240 | 1091/250 | 1091/250 | 1340/300 | 1340/300 | 1340/300 | |
| Front Tread | mm | 970 | 1000 | 1000 | 1180 | 1180 | 1180 | |
| Rear Tread | mm | 970 | 970 | 970 | 1190 | 1190 | 1190 | |
| Min. Turing Radius(Outside) | mm | 2240 | 2420 | 2470 | 2600 | 2900 | 2900 | |
| Tilt of Mast Forward(deg)/ Backward(deg) | / | 45820 | 45820 | 45820 | 45820 | 45820 | 45820 | |
| Fork Size | mm | 1070*120*40 | 1070*125*45 | 1070*125*50 | 1070*150*50 | 1070*150*50 | 1070*150*50 | |
| Specification | Travel Speed(laden/unladen) | km/h | 17/19.5 | 18/19.5 | 18/19.5 | 22/22.5 | 22/22.5 | 22/22.5 |
| Lifting Speed(laden/unladen) | mm/s | 570/600 | 450/500 | 380/450 | 370/400 | 370/400 | 460/500 | |
| Self Weight | kg | 3680 | 4370 | 4750 | 5950 | 6200 | 6400 | |
| Tyre | Number of Drive Wheels | - | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 |
| Tyres Type | - | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |

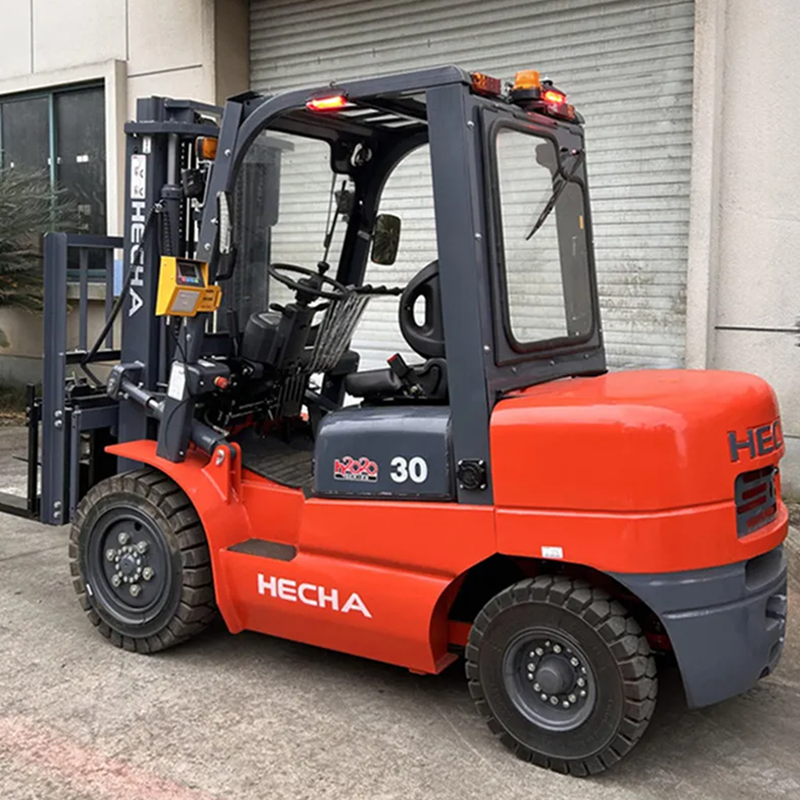

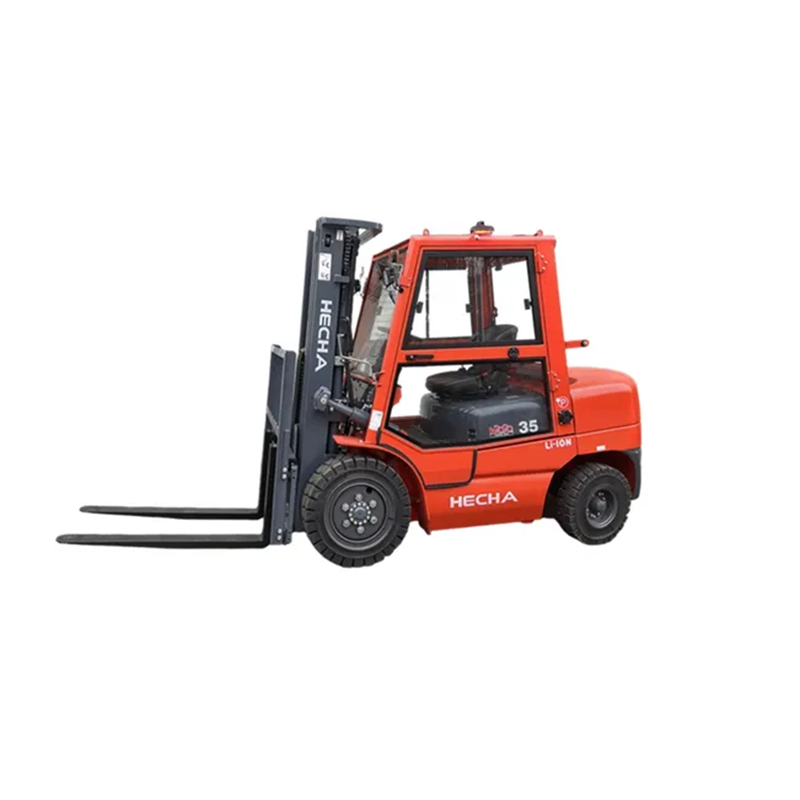

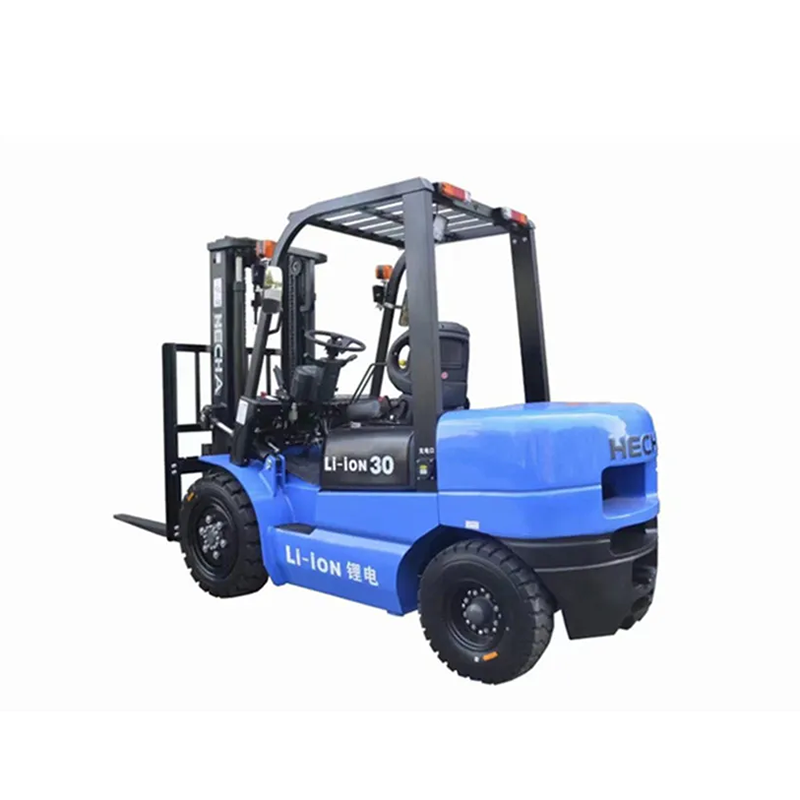

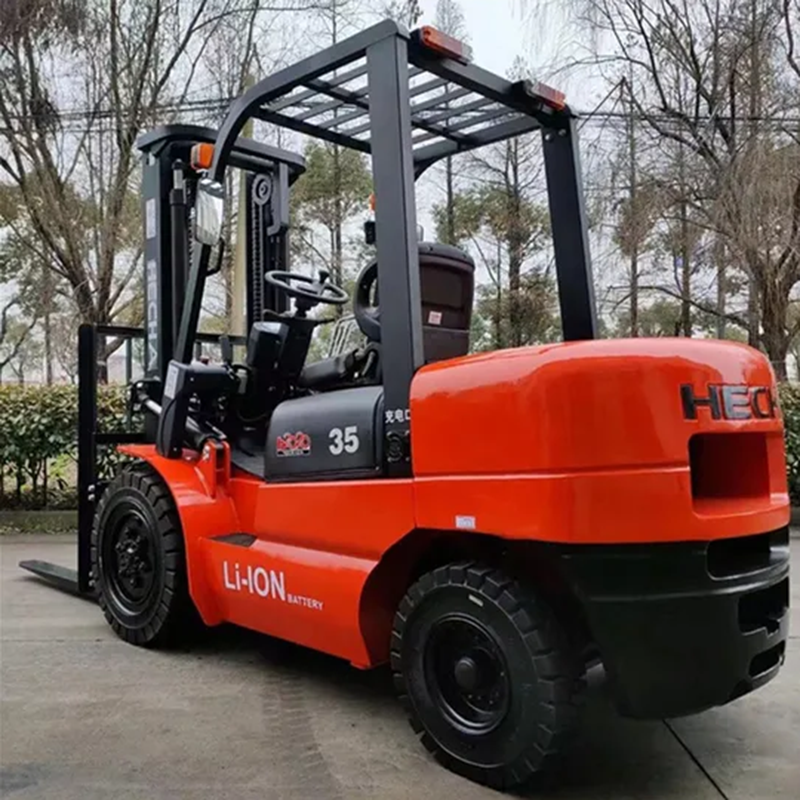

Products Pictures:
