Machine Features:
1. Powerful Performance with Ergonomic Handling
Built for stable and efficient material transport, the forklift features excellent maneuverability and user-friendly controls, allowing operators to move goods smoothly and safely in various environments.
2. Wide-View Mast for Enhanced Safety
The optimized wide-view mast structure significantly improves forward visibility, reduces blind spots, and enhances precision during lifting and stacking operations.
3. Customizable Color Options
The exterior can be customized in a variety of colors, allowing businesses to match corporate branding or improve on-site fleet identification.
4. Advanced Technology Integration
Equipped with energy-saving electric systems, high-efficiency motors, and intelligent control features that boost operational stability, accuracy, and safety in daily use.
5. Reliable Quality & Safety Certification
Manufactured with robust materials and strict quality control, meeting international safety standards and ensuring long-term durability and dependable performance.
Products Specification:
| Category | Item | Unit | CPD 25 | CPD35 | CPD35 | CPD40 | CPD45 | CPD50 |
| Characteristics | Model Name | - | CPD 25 | CPD35 | CPD35 | CPD40 | CPD45 | CPD50 |
| Power Source | - | Electric | Electric | Electric | Electric | Electric | Electric | |
| Rated Capacity | kg | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | |
| Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | |
| Dimensions | Mast Extended Height(with brackrest) | mm | 4060 | 4275 | 4270 | 4250 | 4250 | 4250 |
| Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Mast Height, Lowered | mm | 2060 | 2080 | 2125 | 2350 | 2350 | 2350 | |
| Free Lift Height | mm | 140 | 145 | 150 | 150 | 150 | 150 | |
| Brackrest Height cauculated from the fork surface | mm | 1010 | 1225 | 1220 | 1250 | 1250 | 1250 | |
| Distance from the surface of the seat to the overhead guard | mm | 1035 | 1035 | 1035 | 1020 | 1020 | 1020 | |
| Overhead Guard Height | mm | 2090 | 2106 | 2106 | 2350 | 2350 | 2350 | |
| Overall Length(without forks) | mm | 2550 | 2690 | 2725 | 3195 | 3195 | 3195 | |
| Overall Length(with forks) | mm | 3620 | 3760 | 3795 | 4265 | 4265 | 4265 | |
| Fork Overhang | mm | 435 | 465 | 465 | 555 | 555 | 555 | |
| Wheel Base | mm | 1600 | 1700 | 1700 | 2100 | 2100 | 2100 | |
| Real Overhang | mm | 515 | 525 | 560 | 540 | 540 | 584 | |
| Min. Ground Clearance(from bottom of mast) | mm | 128 | 145 | 145 | 175 | 175 | 175 | |
| Overall Width | mm | 1150 | 1225 | 1225 | 1420 | 1420 | 1420 | |
| Lateral Fork Adjustment(Outside of Fork) (max./min.) | mm | 1024/240 | 1091/250 | 1091/250 | 1340/300 | 1340/300 | 1340/300 | |
| Front Tread | mm | 970 | 1000 | 1000 | 1180 | 1180 | 1180 | |
| Rear Tread | mm | 970 | 970 | 970 | 1190 | 1190 | 1190 | |
| Min. Turing Radius(Outside) | mm | 2240 | 2420 | 2470 | 2600 | 2900 | 2900 | |
| Tilt of Mast Forward(deg)/ Backward(deg) | / | 45820 | 45820 | 45820 | 45820 | 45820 | 45820 | |
| Fork Size | mm | 1070*120*40 | 1070*125*45 | 1070*125*50 | 1070*150*50 | 1070*150*50 | 1070*150*50 | |
| Specification | Travel Speed(laden/unladen) | km/h | 17/19.5 | 18/19.5 | 18/19.5 | 22/22.5 | 22/22.5 | 22/22.5 |
| Lifting Speed(laden/unladen) | mm/s | 570/600 | 450/500 | 380/450 | 370/400 | 370/400 | 460/500 | |
| Self Weight | kg | 3680 | 4370 | 4750 | 5950 | 6200 | 6400 | |
| Tyre | Number of Drive Wheels | - | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 |
| Tyres Type | - | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |

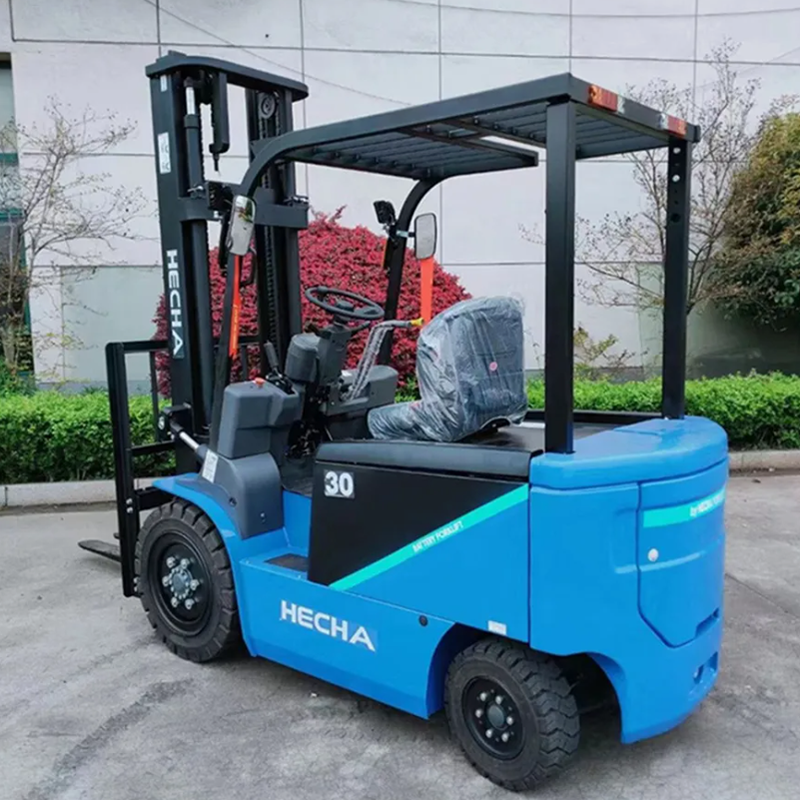

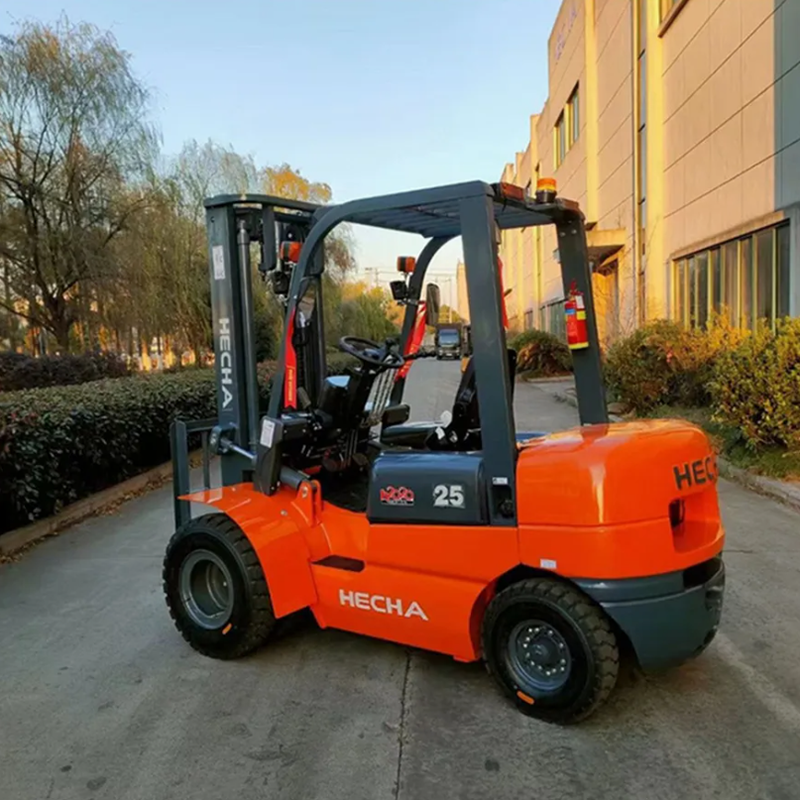

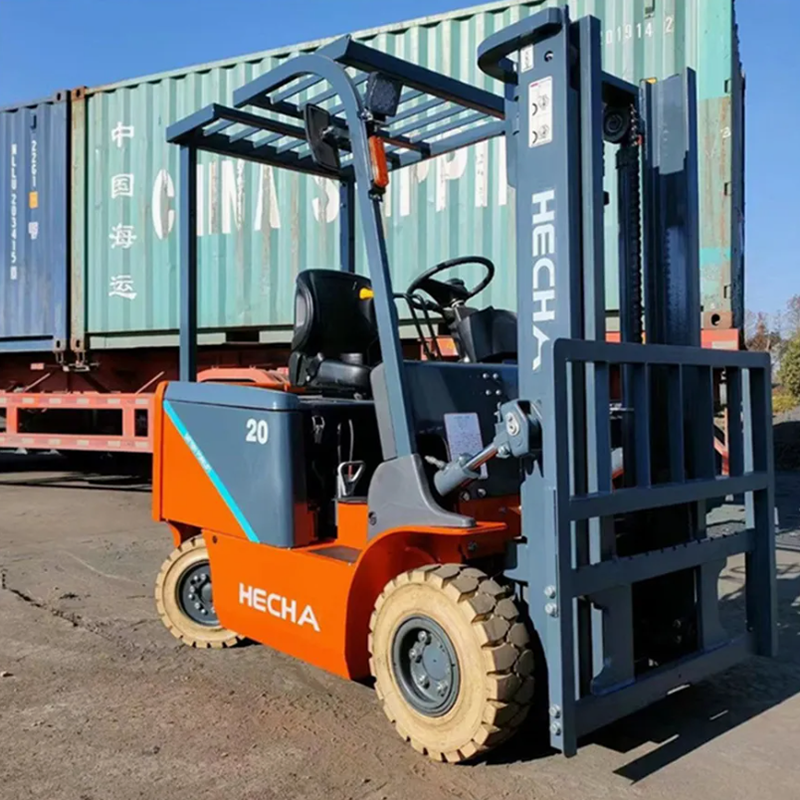

Products Pictures:
