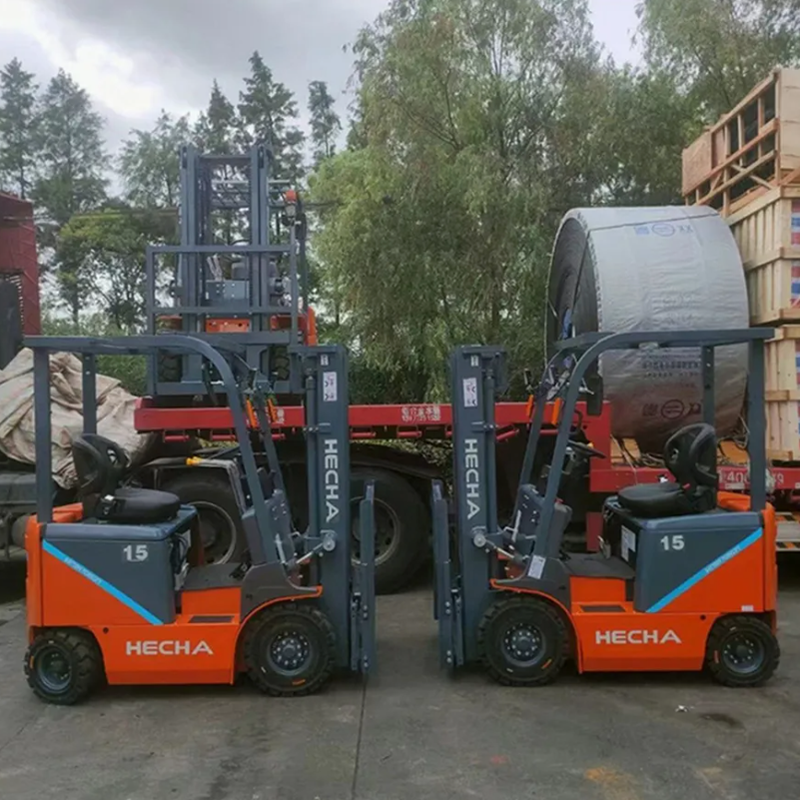

maneuverable electric wheel forklift for narrow aisle lifting

cost effective electric lifting truck for warehouse logistics

Engineering Machinery Mini Electric Wheel Forklift for Easy Lifting

This mini electric wheel forklift is engineered for easy lifting and efficient material transport in compact work environments. Designed with a lightweight structure, reliable electric drive system, and excellent maneuverability, it delivers stable performance for both indoor and outdoor applications. Its combination of strong lifting capability and low operating cost makes it an ideal choice for warehouses, factories, workshops, and small-scale engineering operations.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

1. Powerful & Cost-Effective Electric Drive

Efficient electric power system ensures strong lifting performance while minimizing energy consumption and daily operating costs.

2. Compact & Maneuverable Design

The mini wheel structure allows smooth turning and precise control in narrow aisles, small workshops, and tight construction areas.

3. Ergonomic Operating System

User-friendly controls reduce operator fatigue and improve ease of handling during long working periods.

4. Advanced Control Technology

Equipped with optimized control systems for stable lifting, smooth travel, and enhanced operational safety.

5. Reliable Build Quality

Constructed with durable components and compliant with international safety standards to ensure long service life and dependable operation.

Products Specification:

Category	Item	Unit	CPD 25	CPD35	CPD35	CPD40	CPD45	CPD50
Characteristics	Model Name	-	CPD 25	CPD35	CPD35	CPD40	CPD45	CPD50
	Power Source	-	Electric	Electric	Electric	Electric	Electric	Electric
	Rated Capacity	kg	2500	3000	3500	4000	4500	5000
	Load Center	mm	500	500	500	500	500	500
Dimensions	Mast Extended Height(with brackrest)	mm	4060	4275	4270	4250	4250	4250
	Lifting Height	mm	3000	3000	3000	3000	3000	3000
	Mast Height, Lowered	mm	2060	2080	2125	2350	2350	2350
	Free Lift Height	mm	140	145	150	150	150	150
	Brackrest Height cauculated from the fork surface	mm	1010	1225	1220	1250	1250	1250
	Distance from the surface of the seat to the overhead guard	mm	1035	1035	1035	1020	1020	1020
	Overhead Guard Height	mm	2090	2106	2106	2350	2350	2350
	Overall Length(without forks)	mm	2550	2690	2725	3195	3195	3195
	Overall Length(with forks)	mm	3620	3760	3795	4265	4265	4265
	Fork Overhang	mm	435	465	465	555	555	555
	Wheel Base	mm	1600	1700	1700	2100	2100	2100
	Real Overhang	mm	515	525	560	540	540	584
	Min. Ground Clearance(from bottom of mast)	mm	128	145	145	175	175	175
	Overall Width	mm	1150	1225	1225	1420	1420	1420
	Lateral Fork Adjustment(Outside of Fork) (max./min.)	mm	1024/240	1091/250	1091/250	1340/300	1340/300	1340/300
	Front Tread	mm	970	1000	1000	1180	1180	1180
	Rear Tread	mm	970	970	970	1190	1190	1190
	Min. Turing Radius(Outside)	mm	2240	2420	2470	2600	2900	2900
	Tilt of Mast Forward(deg)/ Backward(deg)	/	45820	45820	45820	45820	45820	45820
	Fork Size	mm	107012040	107012545	107012550	107015050	107015050	107015050
Specification	Travel Speed(laden/unladen)	km/h	17/19.5	18/19.5	18/19.5	22/22.5	22/22.5	22/22.5
	Lifting Speed(laden/unladen)	mm/s	570/600	450/500	380/450	370/400	370/400	460/500
	Self Weight	kg	3680	4370	4750	5950	6200	6400
Tyre	Number of Drive Wheels	-	2X/2	2X/2	2X/2	2X/2	2X/2	2X/2
Tyre	Tyres Type	-	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
