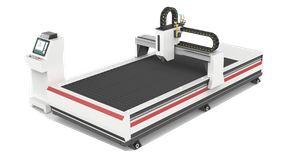

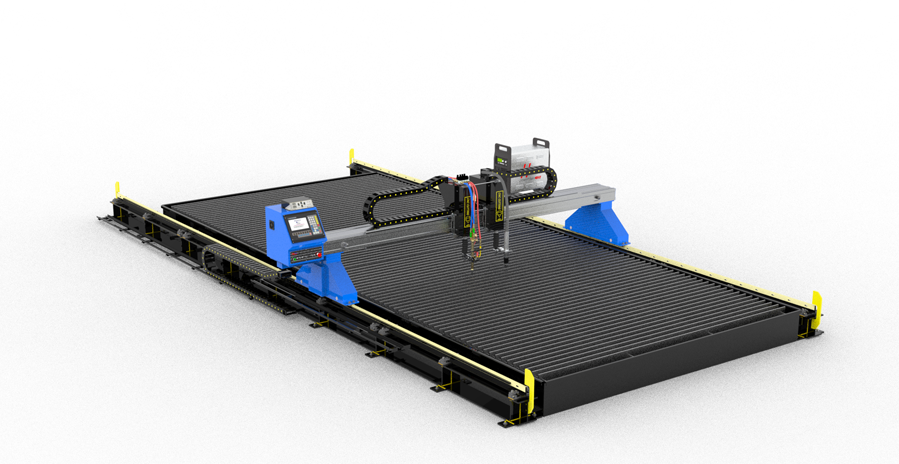

| name | Economical gantry CNC flame cutting machine |
| Model Specifications | SNC-2500 | SNC-3000 | SNC-3500 |
| Input voltage | Single-phase AC 220V±10%50-60Hz 1.DKW, plasma three-phase AC 380V |
| Input Power | Stepper (1200W) Servo (2000W) |
| Cutting Type | Plasma cutting (need matching plasma power supply)/flame cutting/plasma cutting + flame cutting |
| CNC span mm | 2500 | 3000 | 3500 |
| CNC length mm | 7000 (length can be extended according to user needs) |
|
| Effective cutting range mm | 2000*6000 | 2500+8000 | 3000*6000 |
| Cutting torch lifting height (mm) |
| 200 |
| Cutting torch and quantity | 1 set of plasma or 1 set of flame | 1 set of plasma or 1 set of flame | 1 set of plasma or 1 set of flame |
| Number of moving objects | 1 set as standard, optional (up to 2 sets) |
| Plate cutting thickness | Depends on plasma power, flame 6-150 mm |
| Running speed | 0—10000mm/min |
| Cutting speed | 20—8000mm/min |
| Drive type | Double-sided drive (rack and pinion drive |
| Motor Type | Standard 88 series stepper motor + reducer (Dongfu motor optional) |
| CNC system | Shanghai Jiaotong University, 10-inch industrial control large screen |
| Other Configuration | Lifting pipeline drag chain, 1 set of tools |
| Gas supply requirements | The maximum acetylene or propane pressure should not exceed 0.1Mpa (only required when flame cutting is selected) |
| Oxygen supply requirements | The maximum oxygen pressure does not exceed 0.8Mpa (only required when flame cutting is selected) |
| Heightening type | Flame capacitance height adjustment: optional / plasma pressure height adjustment: optional |
| A mobile body can only support one height adjustment method (for example, if the plasma arc voltage is selected for height adjustment, the flame capacitor cannot be added for height adjustment) |
| Nesting software | Standard configuration: FASTCAM Expert Edition or SMARTCUT software |
| Machine tool bare package size | 3230*1000*1000 | 3730*1000*1000 | 4230*1000*1000 |
| Guide rail foundation, cutting rack | The manufacturer provides the drawings and the user makes them by himself |
