Product parameters

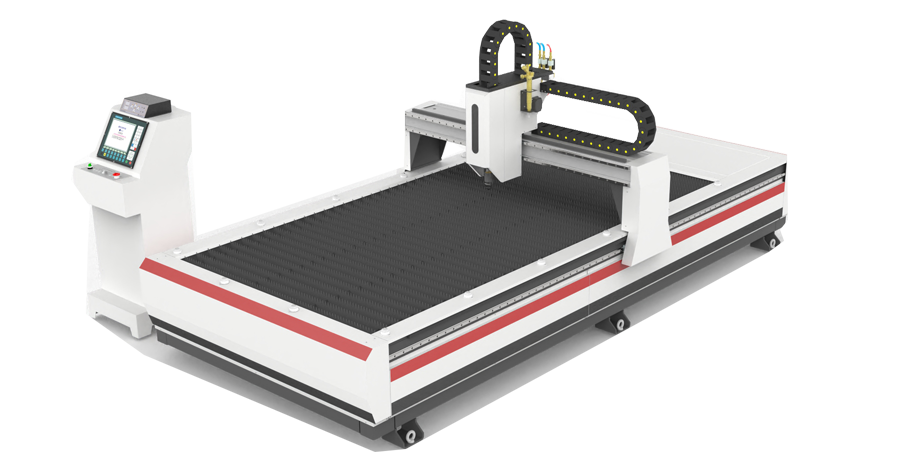

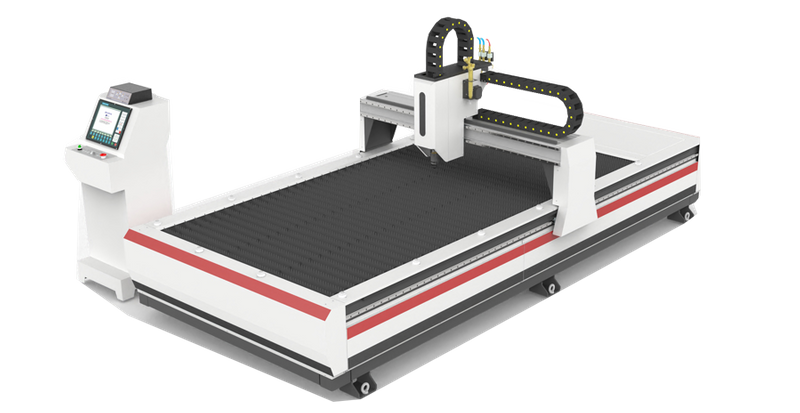

| name | Desktop cutting machine | ||
| Model Specifications | TNC-1325 | TNC-1530 | TNC-1840 |
| Input voltage | Single-phase AC 220V±10%50-60Hz 1.0KW, plasma three-phase AC 380V | ||
| Input Power | Stepper (1200w) / Servo (2000W) | ||
| Cutting Type | Plasma cutting (need matching plasma power supply)/flame cutting/plasma cutting + flame cutting | ||
| Equipment width mm | 1900 | 2100 | 2300 |
| Equipment length mm | 3500 | 4000 | 5000 |
| Customized information | The longitudinal length (effective cutting length Y axis) can be increased or shortened according to user requirements | ||
| Effective cutting range mm | 1300*2500 | 1500*3000 | 1800*4000 |
| Cutting torch lifting stroke mm | 200 | ||
| Number of cutting torches | 1 set of plasma or 1 set of flame | 1 set of plasma or 1 set of flame | 1 set of plasma or 1 set of flame |
| Number of moving objects | 1 set as standard, optional (up to 2 sets) | ||
| Plate cutting thickness | Depends on plasma power, flame 6-150 mm | ||
| Running speed | 0—10000mm/min | ||
| Cutting speed | 20—6000mm/min | ||
| Drive type | Double-sided drive (rack and pinion drive) | ||
| Motor Type | Standard 86 series stepper motor + reducer (servo motor optional) | ||
| CNC system | Shanghai Jiaotong University, 10-inch industrial control large screen | ||
| Other Configuration | Lifting pipeline drag chain, 1 set of tools | ||
| Gas supply requirements | The maximum acetylene or propane pressure should not exceed 0.1Mpa (only required when flame cutting is selected) | ||
| Oxygen supply requirements | The maximum oxygen pressure does not exceed 0.8Mpa (only required when flame cutting is selected) | ||
| Heightening type | Flame capacitance height adjustment: optional / plasma arc voltage height adjustment: optional | ||
| A mobile body can only support one height adjustment method (for example, if the plasma arc voltage is selected for height adjustment, the flame capacitor cannot be added for height adjustment) | |||
| Nesting software | Standard configuration: FASTCAM Expert Edition/or StarCAM | ||
| Machine size | 3500*1700*1600 | 4000*2000*1600 | 5000*2300*1600 |
| Cutting table | (Water jet cutting table as standard) Optional: (Exhaust type dust removal cutting table) | ||
Products Features
1）Cutting Capability
Plasma Cutting: Requires an external plasma power supply; cutting thickness depends on power.

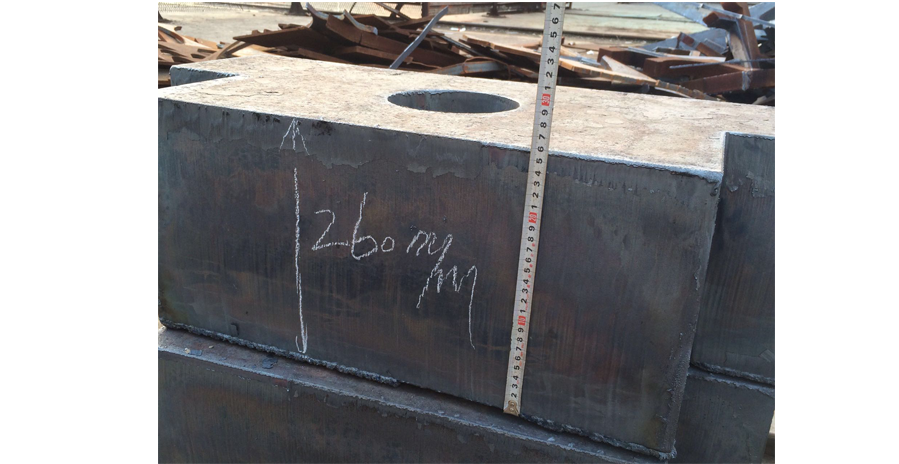

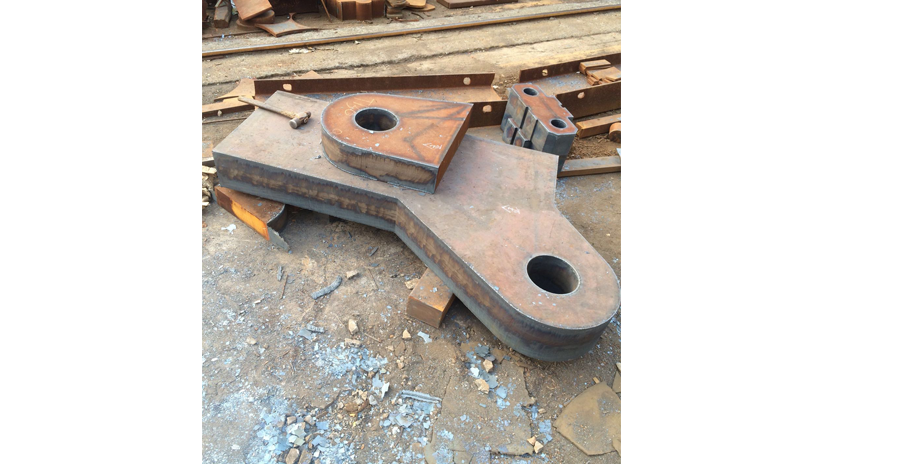

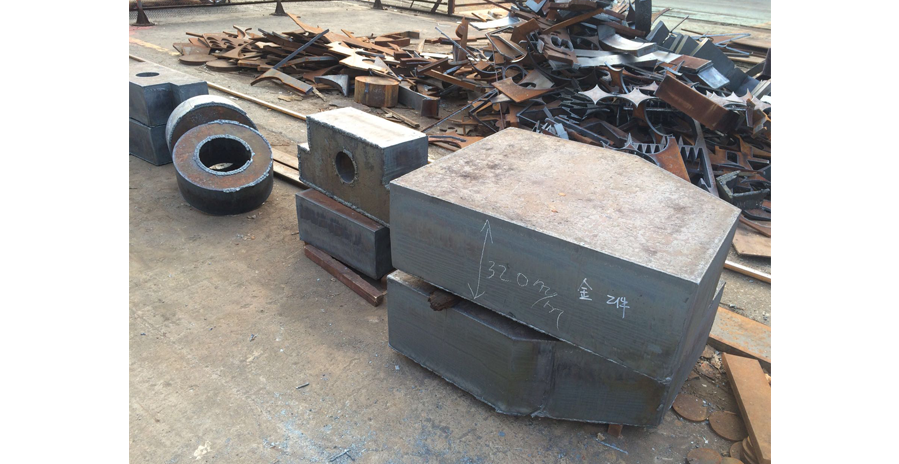

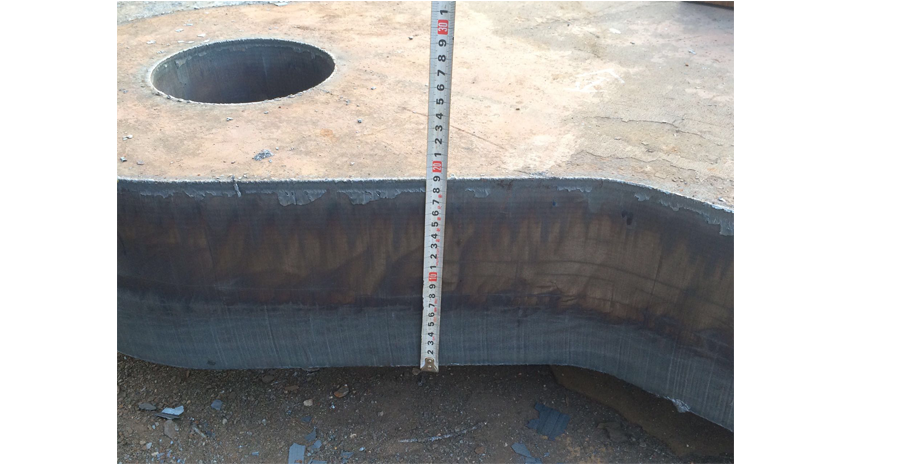

Flame Cutting: Suitable for 6-150mm metal plates, using acetylene/propane (≤0.1MPa) and oxygen (≤0.8MPa).
Cutting Speed: 20-6000mm/min (max. travel speed: 10000mm/min).
（2）Mechanical Structure
Drive System: Dual-side gear-and-rack transmission with stepper motors (servo motors optional).
Effective Cutting Area: TNC-1325 (1300×2500mm), TNC-1530 (1500×3000mm), TNC-1840 (1800×4000mm).
Torch Configuration: Standard 1 set (plasma or flame), expandable to 2 sets (height control mode must match).
（3）Control System
CNC System: 10-inch industrial touchscreen (Shanghai Jiao Tong University system).
Height Control: Capacitive sensing (flame) or arc voltage tracking (plasma) – only one mode per moving body.
Nesting Software: Includes FASTCAM Basic or StarCAM for material optimization.
（4）Customization Options
Cutting Length (Y-axis): Adjustable upon request.
Cutting Table: Standard water table; optional downdraft dust extraction table.
Moving Body Expansion: Supports up to 2 sets (must match height control mode).
