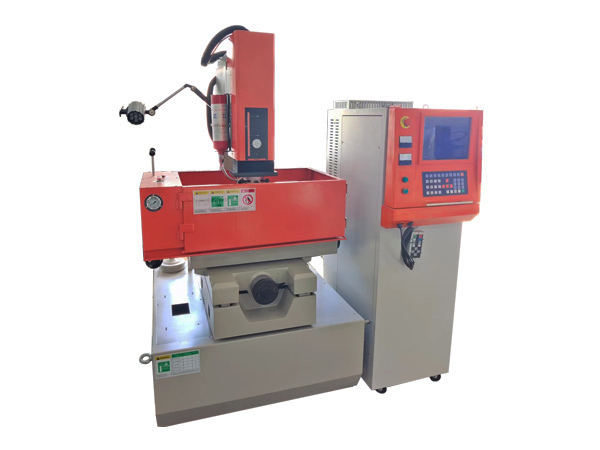

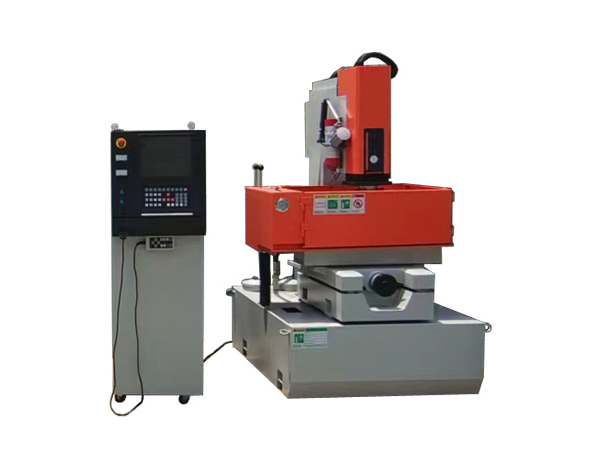

Product parameters
| Model number | ZNC350 |
| Workbench size | 600*300 |
| Inner diameter of work slot | 780*500*350 |
| Left and right itinerary | 350 |
| Front and back travel | 250 |
| Z-axis travel mm | servo | 160 |
| hand movement | 180 |
| Maximum distance between spindle and worktable | 420 |
| Maximum electrode weight | 30 |
| kgs | 680 |
| Mechanical weight | 1000 |
| packing size | 1460*1490*2230 |
| Filter box capacity | 200 liters |
| Filter box weight | built-in |
Products Features
Electric discharge machining has become an important component of the field of mechanical manufacturing, with wide applications in molds, electronic instruments, precision machining, automotive parts, military and other fields. Mainly suitable for the processing of precision stamping dies, cavity molds (such as plastic bags, glued laminated wood molds, compression molds, etc.), small holes, irregular holes, etc. It is an ideal processing equipment for mechanical processing workshops and mold workshops.
1. The structure of this machine has been analyzed and designed by computer for tensile, compressive, and reactive forces, ensuring mechanical precision forever.
2. The casting is made of FC-35 resin sand and has undergone natural weathering and various treatments, making it durable and accurate.
3. Mechanical design uses computer-aided design (CAD) to assist in the design process, ensuring that the machine body structure remains unchanged and machining accuracy is maintained
4. The slide rail adopts a V-shaped and flat design, which slides lightly under heavy pressure and has excellent precision.
5. The workbench is subjected to high wave heat treatment and grinding, making the surface less prone to wear and tear.
6. Both the X and Y axes use imported or equivalent double nut ball screws, which are lightweight in transmission and easy to use.

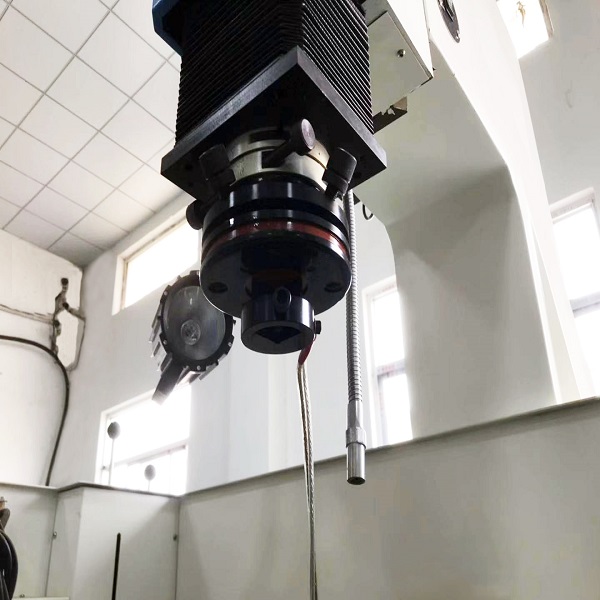

7. The spindle adopts a linear slide rail, which maintains precision and durability forever.
8. The trailer adopts imported "Iron Furong" guide rail veneer.
ZNC spark machine safety
1. Automatic fire detection
2. The discharge positioning electrode head automatically lifts and stops processing
3. When the circuit is short circuited, the safety switch automatically cuts off the power supply
