Machine Features:
1. High-Endurance Lithium Power System
The 24V/72Ah battery supports long operating hours with stable discharge performance, ideal for continuous warehouse use.
2. Strong Structural Durability
Full-metal body construction ensures excellent impact resistance and long service life, even in high-intensity environments.
3. Smooth and Efficient Handling
Polyurethane tires, universal wheel configuration, and an electric side shifter allow precise steering and effortless movement.
4. Compact & Easy to Operate
Small turning radius and narrow aisle adaptability (685 mm) allow efficient maneuverability in tight operational spaces.
5. Simplified Hydraulic Structure
Integrated hydraulic pump architecture reduces oil piping, lowers failure rates, and simplifies maintenance.
Products Specification:
| Item | Details |
| Product Type | Electric Pallet Truck / Lithium Battery Forklift |
| Condition | New |
| Fork Size (L×W×H) | 1220 × 125 × 50 mm |
| Battery Type | Lithium-Ion |
| Battery Voltage / Capacity | 24V / 72Ah |
| Drive Type | Forward Drive |
| Fork Height (Lowered) | 115 mm / 80 mm |
| Fork Length | 1150 mm |
| Fork Width | 560 mm |
| Tire Type | Polyurethane |
| Wheelbase | 1200 mm |
| Load Center Distance | 600 mm |
| Gradeability (Laden / Unladen) | 15% / 8% |
| Mast Tilt Angle | 6–12° |
| Mast Type | Two-Stage |
| Operating Mode | Manual Operation |
| Self Weight | 154 kg |
| Aisle Width | 685 mm |
| Side Shifter | Electric |
| Terrain Adaptability | Indoor, Pavement, Rough Terrain |
| Travel Speed (Laden / Unladen) | 4 km/h / 5 km/h |
| Applications | Warehousing, Retail, Manufacturing, Logistics |

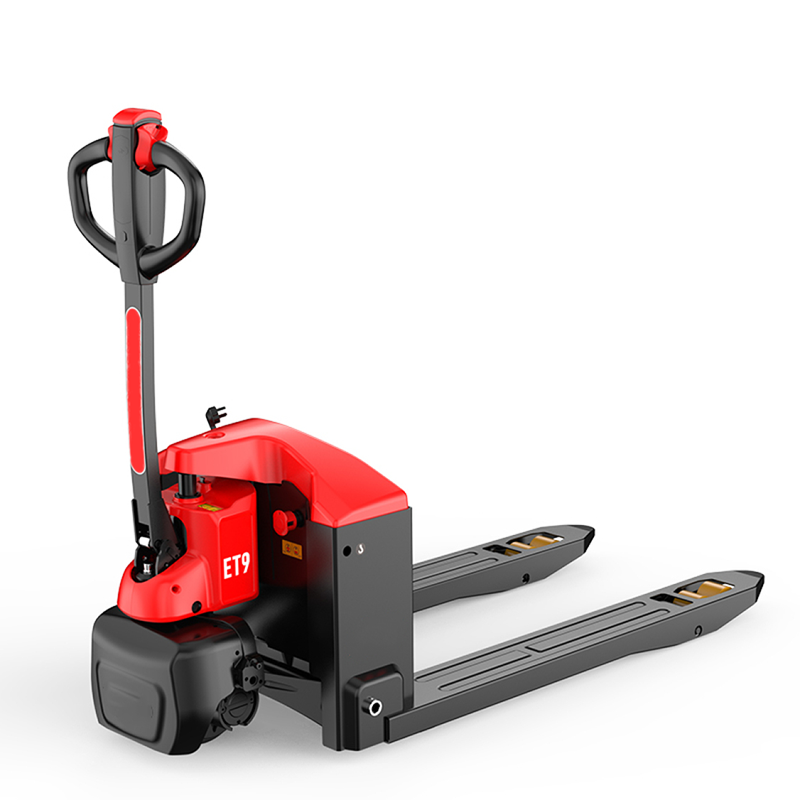

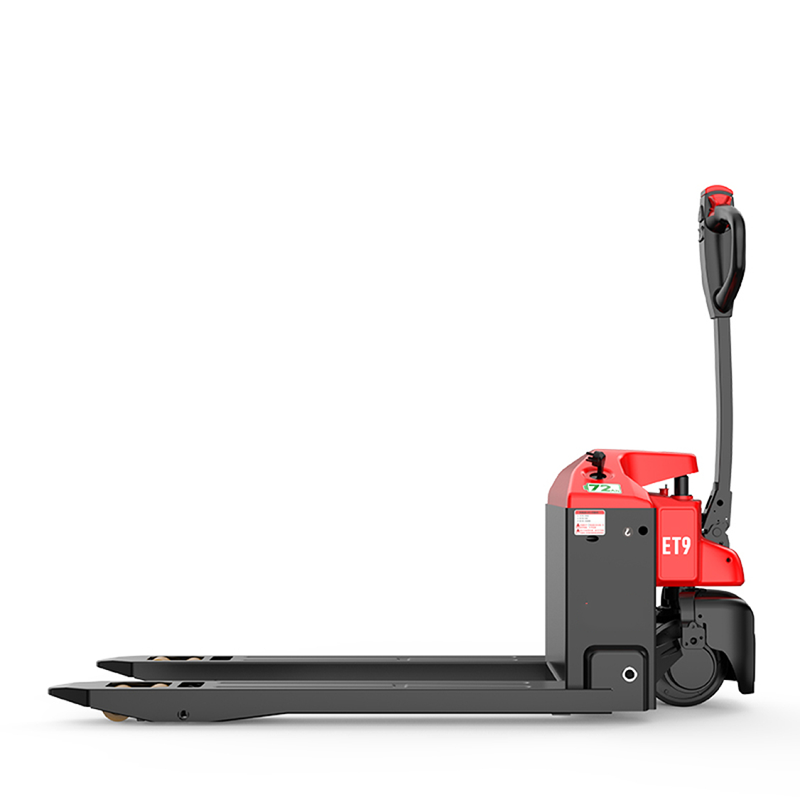

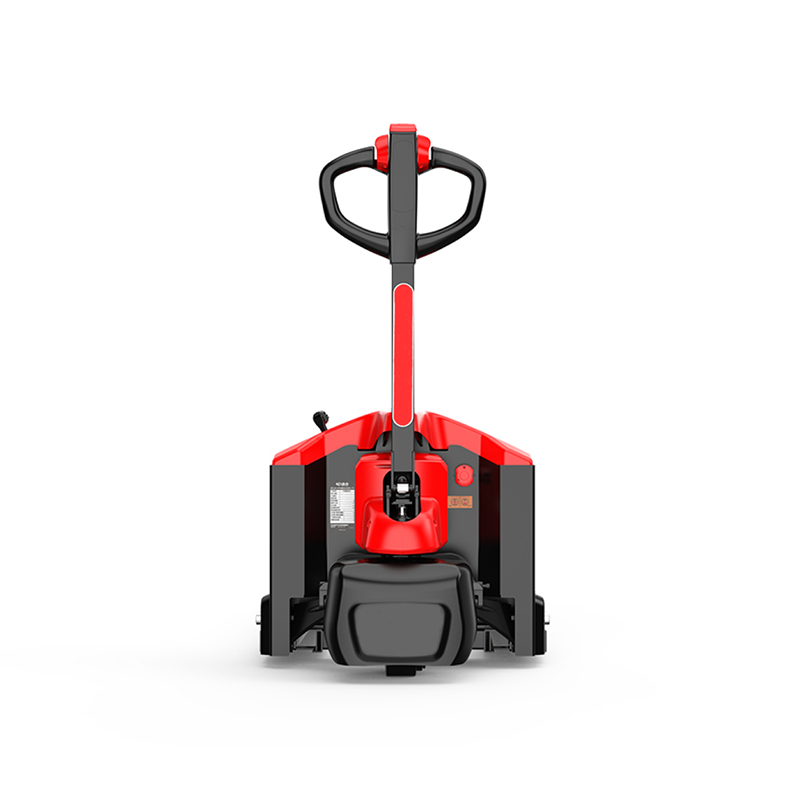

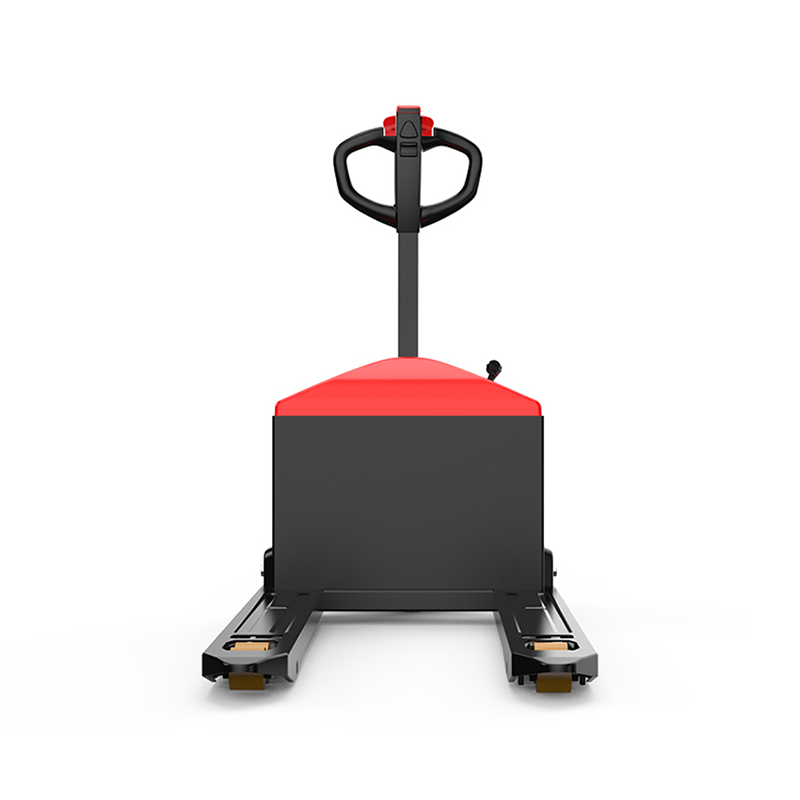

Products Pictures:
