Machine Features:
1: The CNC-controlled convex compensation system automatically adjusts to eliminate slider deformation, ensuring bending accuracy and convenience.
2: A fully functional rear stopper mechanism with multiple stopper shafts provides flexible and precise control.
3: The all-steel welded body undergoes vibration or annealing stress relief treatment, delivering excellent rigidity and long-term stability.
4: Key components such as the body and slider are analyzed using ANSYS finite element software to guarantee reliability.
5: The German gantry structure design allows smooth feeding without being affected by the throat.
6: The rear positioning system adopts linear guide rails and ball screw drive, achieving high positioning accuracy.
Control System Features:
Tooling: Tool library 30 punches/30 dies, Al phanumerictool identification, Hemming tools, Radius tools
Standard: 10.1'' wide screenTFT, Industrial grade touchscreen, Storage capacity lGB, Data backup/restore via USB, USBflash memory stick, Integrated valve amplifier, Power-down memorisation, Profile-53T Loffline software
Control: Servo control, Unipolar/frequency inverter control, Pressure valve control, Proportional valve control, Crowning control, Multiple digital function outputs
Programming: Alphanumerical productnaming, Hemmed products programming, Radius programming (bumping), One page programmingtable, Programmable material properties, Programmable axis speed, Millimetres/Inches, KN/Ton selection, tock counter
Machine Specifications:

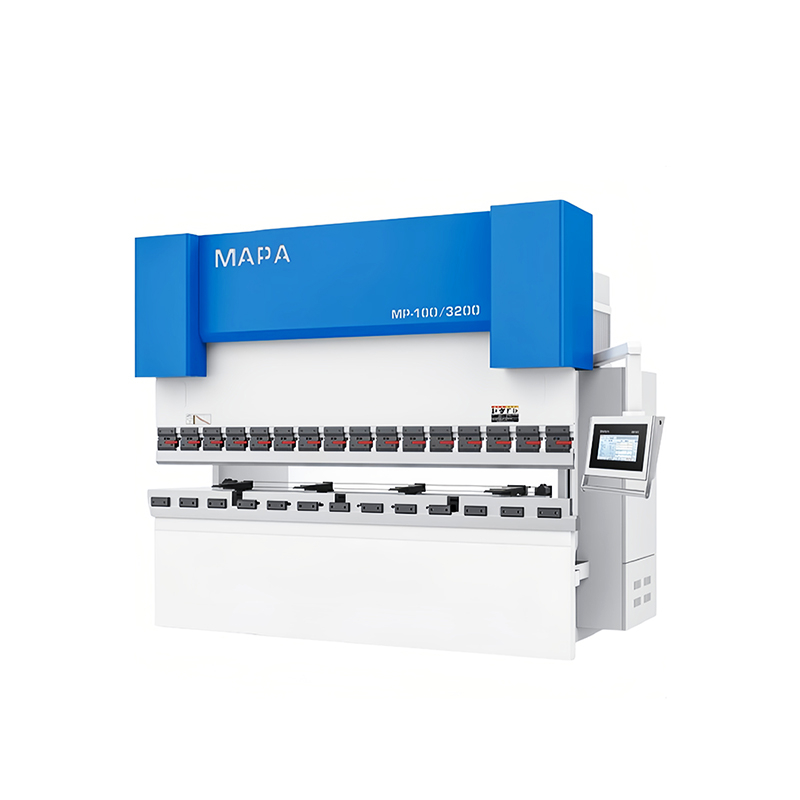

| ITEM | Unit | MP-100/3200 | MP-160/3200 | MP-200/4100 |
| Bending force | Kn | 1000 | 1600 | 2000 |
| Effective bending length | mm | 3200 | 3200 | 4100 |
| Max.opening height | mm | 460 | 460 | 500 |
| Column spacing | mm | 2700 | 2700 | 3600 |
| Throat depth | mm | 400 | 400 | 400 |
| Slide stroke | mm | 200 | 200 | 240 |
| Quick descent speed | mm/s | 210 | 170 | 170 |
| Working speed | mm/s | 12 | 11 | 10 |
| Return speed | mm/s | 150 | 150 | 130 |
| Power | KW | 7.5 | 15 | 15 |
| Tank capacity | L | 400 | 420 | 550 |
| Size(LxWxH) | mm | 3400×1600×2500 | 3500×1650×2630 | 4300×1900×2750 |
| Weight | Kg | 9800 | 11800 | 16000 |
