Control System Features:
1: The work interface is concise and clear, with dual functions of manual programming and computer import.
2: Manual programming has the characteristics of fewer input items and assists in intelligent calculation. One-page quick programming allows operators to input fewer corresponding sizes to complete the addition.
3: The computer import function supports USB and WiFi local area network sharing, directly importing CAD drawings. The system automatically generates programs, and processing can be completed without the need for manual programming by operators.
4: The arc bending mode automatically calculates the number of tool bends and arc length by inputting the radius.
5: The system supports handwheel control and fine-tuning, making it convenient for operators to observe and operate the multilateral bending center.
6: The system supports multiple languages such as Chinese, English, and Japanese.
7: The system can store a large number of programs, with 3G of memory, and each program only occupies 11KB.
High Quality Spare Parts:
Taiwan HIWIN linear guide、Taiwan TBI motion ball screw、Yaskawa or Sanyo servo motors、Japanese NSK bearing、Taiwan APEX gear reducer
Product Specifications:

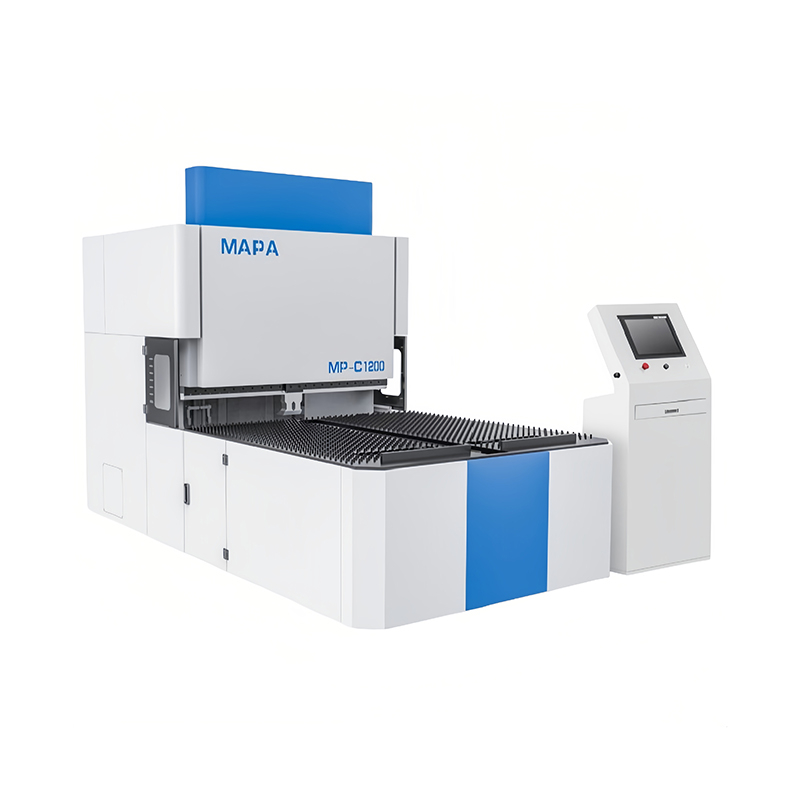

| ITEM | Unit | MP-C1200 | MP-C1500 |
| Bending length | mm | 1200 | 1500 |
| Plate length | mm | 1250 | 1600 |
| Plate width | mm | 1000 | 1250 |
| Bending height | mm | 120 | 170/300(optional) |
| Min forming size (foursides) | mm | 270x200 | 310x230 |
| Min forming size(one side) | mm | 200 | 230 |
| Min.radius | mm | 1.2 | 1.2 |
| Max.continuous bending speed | S | 0.2 | 0.2 |
| Opening height | mm | 120 | 170 |
| Bending angle | / | 0-360° | 0-360° |
| Max.material thickness | mm | Aluminum plate: 2.0 |
| Coldrolled plate:1.5 |
| Stainless steel:0.8 |
| Control system | / | Star300-LGx |
| Operating system | / | Win7+OS+Sucking disc |
| Axis | / | Standard 10 axis configuration |
| Machine dimension(LxWxH) | mm | 3000x1500x2050 | 3700x1800x2500 |
| Machine weight | Kg | 5800 | 9500 |
