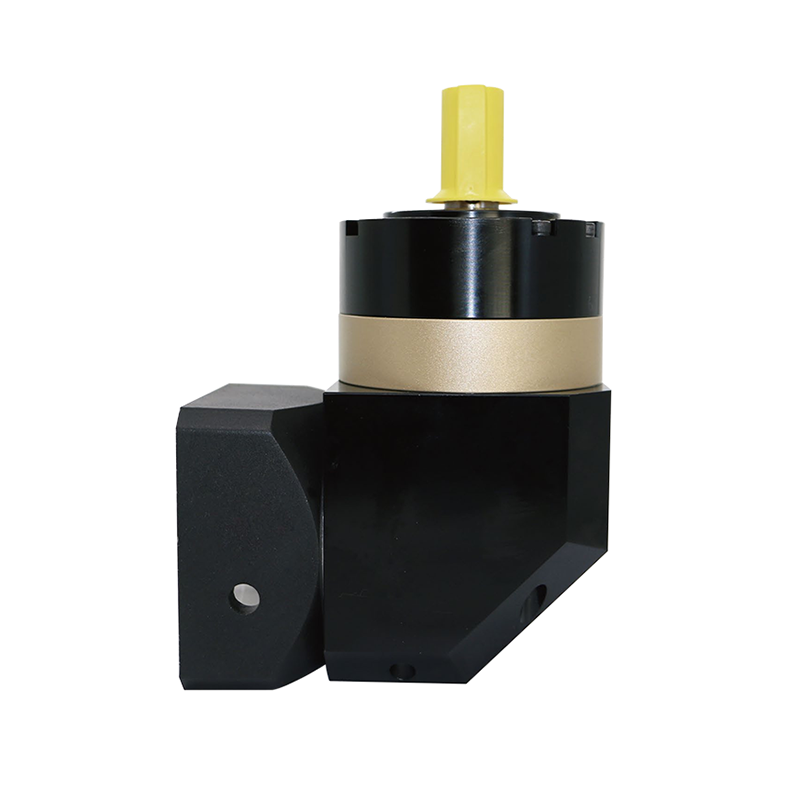

ZPE series precision planetary reducer with compact design for servo and automation use

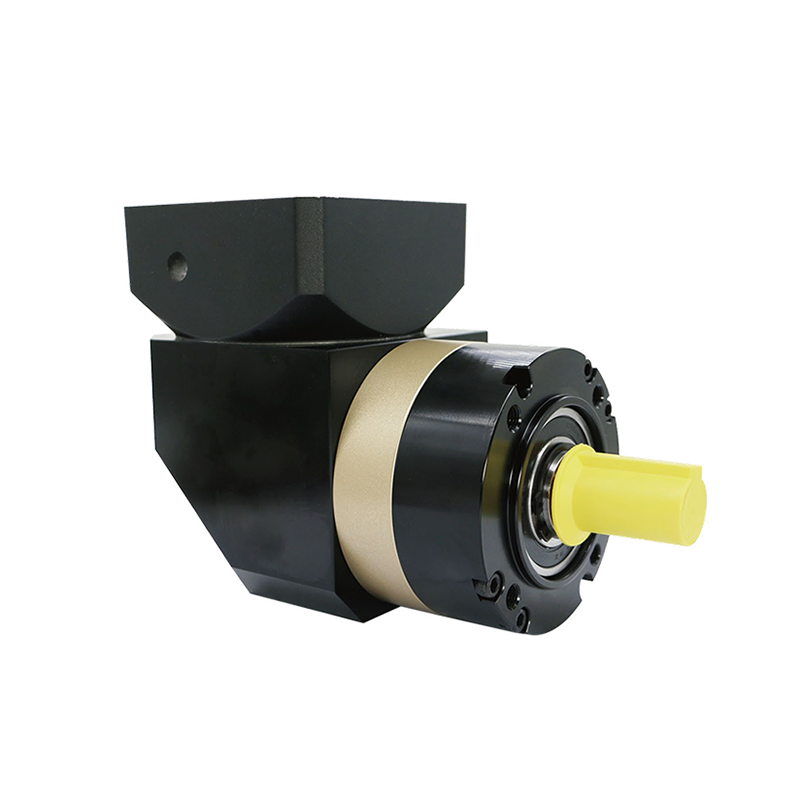

Compact high precision gearbox for robotics and motion control systems

ZY ZPE Series High Precision Planetary Reducer

ZPE Series Precision Planetary Reducer is a new-generation gearbox engineered for applications requiring superior accuracy, stability, and compact design. With ultra-low backlash, enhanced torque transmission, and a one-piece rigid housing, it guarantees smooth operation under high load conditions. Ideal for high-speed automation, robotics, packaging, and motion control systems demanding long service life and minimal maintenance.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

Ultra Precision Design: Backlash below 5 arc minutes ensures stable, repeatable positioning.

Advanced Gear Processing: ISO-4 level grinding and ultra-precision machining guarantee efficiency and smooth motion.

High Strength & Durability: Carburized and quenched alloy steel gears achieve up to HRC60 hardness.

Compact & Rigid Structure: One-piece output shaft and planetary carrier deliver high rigidity and load capacity.

Full Needle Bearing Support: Boosts torque output and operational stiffness.

Universal Compatibility: Adaptable to global servo motor standards.

Sealed & Maintenance-Free: IP65 protection with synthetic grease ensures leak-free operation.

ZPE Series Reducer Rotation Inertial Meter:

Speed Ratio	Pitch Number	ZPE60 (kg.cm²)	ZPE90 (kg.cm²)	ZPE120(kg.cm²)	ZPE160(kg.cm²)
3	1	0.16	0.61	3.25	12.31
4	1	0.14	0.48	2.74	7.54
5	1	0.13	0.47	2.71	7.42
7	1	0.13	0.47	2.62	7.25
8	1	0.13	0.44	2.57	7.25
10	1	0.13	0.44	2.62	7.14
9	2	0.127	0.43	2.56	12.35
12	2	0.127	0.44	1.5	12.35
15	2	0.12	0.43	1.75	7.47
16	2	0.075	0.43	1.49	6.65
20	2	0.075	0.43	1.49	5.81
25	2	0.075	0.43	1.3	6.34
28	2	0.064	0.44	1.3	5.36
30	2	0.064	0.43	1.3	5.36
35	2	0.064	0.43	1.3	4.08
40	2	0.064	0.43	1.3	4.08
50	2	0.064	0.43	1.3	4.08
70	2	0.064	0.43	1.3	4.08
100	2	0.064	0.43	1.3	7.5
64	3	0.064	0.43	1.3	7.5
80	3	0.064	0.43	1.3	7.3
100	3	0.064	0.43	1.3	7.3
150	3	0.064	0.43	1.3	6.2
200	3	0.064	0.43	1.3	6.2
250	3	0.064	0.43	1.3	6.2
350	3	0.064	0.43	1.3	6.2
400	3	0.064	0.43	1.3	6.2
500	3	0.064	0.43	1.3	6.2
700	3	0.064	0.43	1.3	6.2
1000	3	0.064	0.43	1.3	6.2

Precision Bevel Teeth ZPE Series Technical Parameters:

Moment of Inertia		ZPE60	ZPE90	ZPE120	ZPE160	Speed Ratio	Pitch Number
Rated Output Torque	Nm	44.2	135	245	490	3	1
		46.32	162	320	650	4	1
		46.32	162	320	650	5	1
		38.9	130	232	520	7	1
		18.5	72	165	320	10	1
		27.8	115	245	490	9	2
		27.8	162	245	490	12	2
		27.8	162	245	650	15	2
		46.32	162	245	650	16	2
		46.32	162	320	650	20	2
		46.32	162	320	650	25	2
		27.8	162	320	650	28	2
		27.8	135	245	490	30	2
		46.32	162	320	650	35	2
		46.32	162	320	650	40	2
		46.32	162	320	650	50	2
		38.9	130	232	520	70	2
		18.5	72	165	320	100	2
		46.32	162	320	650	64	3
		46.32	162	320	650	80	3
		46.32	162	320	650	100	3
		46.32	162	320	650	150	3
		46.32	162	320	650	200	3
		46.32	162	320	650	250	3
		46.32	162	320	650	350	3
		46.32	162	320	650	400	3
		46.32	162	320	650	500	3
		38.9	130	232	520	700	3
		18.5	72	165	320	1000	3
Emergency stop torque	Nm	2.5 times rated output torque
Maximum radial force	N	1550	3250	6700	9400	/	/
Maximum axial force	N	775	1625	3350	4700	/	/
Rated input speed n1	rpm	4000	3000	3000	2500	3-1000	/
Maximum input speed n1	rpm	6000	6000	6000	5000	3-1000	/
Super precision backspace P0	arcmin	/	/	/	/	/	/
Super precision backspace P0	arcmin	/	/	/	/	/	/
Precise backspace P1	arcmin	≤5	≤5	≤5	≤5	/	1
Precise backspace P1	arcmin	≤8	≤8	≤8	≤8	/	2
Standard backspace P2	arcmin	≤7	≤7	≤7	≤7	/	1
Standard backspace P2	arcmin	≤10	≤10	≤10	≤10	/	2
Torsional rigidity	Nm/arcmin	2.8	7.5	15.5	48.5	3-100	1、2
Service temperature	℃	-20℃-+90℃
Average service life	h	20000
Full load efficiency	%	97					1
		95					2
		93					3
Protection class	/	IP65					1
							2
							3
Mounting direction	/	Any direction					1、2、3
Noise value	dba/m	≤68	≤68	≤68	≤68	3-100	1、2、3
Lubrication mode	/	All synthetic lubricating oils				3-100	1、2、3

ZPE Series Planetary Reducer Technical Parameters

	Model	ZPE60			ZPE90			ZPE120			ZPE160
	Stage	1	2	3	1	2	3	1	2	3	1	2	3
D	D1	59.5			88			119			165
	D2	M5*15			M6*15			M10*25			M12*30
	D3	52			70			100			145
	D4	5			6			8			12
	D5	16			22.5			28			43
	D6	M5*15			M6*15			M10*25			M12*25
	D7	40			60			80			130
	D8	14			20			25			40
L	L1	79	95	111	104	124	144	138	168	196.5	182.6	227.6	259.6
	L2	32			41			55.5			86
	L3	3			4			4			5
	L4	28			36			50			80
	L5	3			3			4			7
	L6	20			30			45			65
	L7	/			/			/			/
C	C1	14			19			22			35
	C2	50			70			110			114.3
	C3	5			8			10			10
	C4	33			47			65			82
	C5	58			89			119			154
	C6	M4*10			M6*15			M8*20			M12*24
	C7	70			90			145			200
	C8	60			90			120			180
