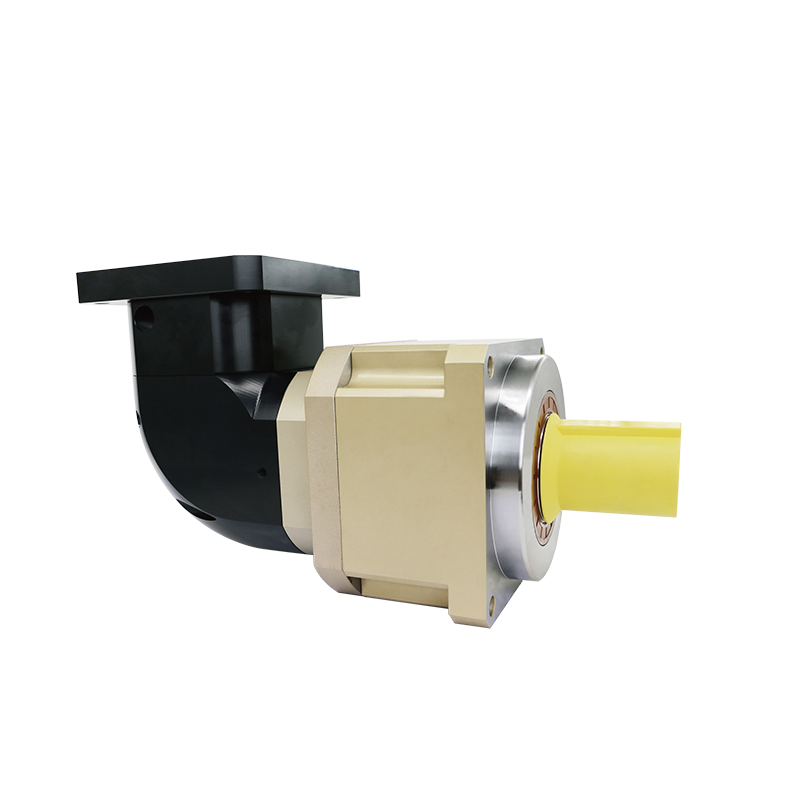

ZY ZPLX Series High Precision Planetary Reducer

ZPLX Series Precision Planetary Reducer is developed for advanced automation, motion control, and precision servo systems. It features an optimized gear transmission system with minimal backlash, high torsional stiffness, and superior torque output. Designed with an integrated rigid housing and advanced sealing technology, ZPLX offers exceptional stability, reliability, and maintenance-free performance for industrial applications.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High Precision Transmission: Backlash less than 5 arc minutes ensures accurate positioning and smooth motion.

Superior Gear Quality: ISO-4 class tooth grinding guarantees efficient, quiet, and durable operation.

Strengthened Alloy Gears: Carburized and quenched to HRC60 hardness for long service life.

Integrated High Rigidity Design: One-piece output shaft and planetary support structure ensure strong torque stability.

Enhanced Bearing Support: Full needle bearing system increases torque and stiffness.

Universal Motor Compatibility: Fits a wide range of servo motors used in automation and robotics.

IP65 Sealing & Long Life: Synthetic grease and advanced sealing design ensure leak-free, maintenance-free operation.

ZPLX Series Reducer Rotation Inertial Meter:

Speed Ratio	Pitch Number	ZPLX180 (kg.cm²)	ZPLX220 (kg.cm²)	ZPLX240(kg.cm²)	ZPLX280(kg.cm²)	ZPLX330(kg.cm²)
3	1	22.4	34.8	36.8	/	/
4	1	21.37	33.6	35.47	/	/
5	1	21.35	32.7	33.46	/	/
7	1	20.48	30.48	31.86	/	/
/	1	/	/	/	/	/
10	1	16.3	14.3	15.4	/	/
9	2	12.35	/	/	/	/
12	2	12.35	/	/	/	/
15	2	12.35	/	/	/	/
16	2	7.54	25.68	26.14	22.5	62.5
20	2	7.42	22.75	26.14	22.5	62.5
25	2	7.54	22.75	26.14	22.5	62.5
28	2	7.42	22.59	26.14	22.5	62.5
30	2	7.14	/	/	/	/
35	2	7.14	22.59	26.14	22.5	62.5
40	2	7.14	22.59	26.14	22.5	62.5
50	2	7.14	22.59	26.14	22.5	62.5
70	2	7.14	22.59	26.14	/	/
100	2	7.14	22.59	26.14	/	/
64	3	7.54	22.75	26.14	22.5	62.5
80	3	7.42	22.75	26.14	22.5	62.5
100	3	7.14	22.75	26.14	22.5	62.5
150	3	7.14	22.75	26.14	/	/
200	3	7.14	22.75	26.14	22.5	62.5
250	3	7.14	22.75	26.14	22.5	62.5
350	3	7.14	22.75	26.14	22.5	62.5
400	3	7.14	22.75	26.14	/	/
500	3	7.14	22.75	26.14	/	/
700	3	7.14	22.75	26.14	/	/
1000	3	7.14	22.75	26.14	/	/

Precision Bevel Teeth ZPLX Series Technical Parameters:

Moment of Inertia		ZPLX180	ZPLX220	ZPLX240	ZPLX280	ZPLX330	Speed Ratio	Pitch Number
Rated Output Torque	Nm	1320	/	/	/	/	3	1
		1650	2420	2560	5620	9800	4	1
		1650	2420	2560	5620	9800	5	1
		1250	1830	2010	/	/	7	1
		/	/	/	3520	/	8	1
		820	1150	1250	/	/	10	1
		1320	/	/	/	/	9	2
		1320	1150	1250	3520	8200	12	2
		1650	1150	1250	3520	8200	15	2
		1650	2420	2560	5620	9800	16	2
		1650	2420	2560	5620	9800	20	2
		1650	2420	2560	5620	9800	25	2
		1650	2420	2560	3520	9800	28	2
		1320	/	/	/	/	30	2
		1650	2420	2560	5620	9800	35	2
		1650	2420	2560	5620	9800	40	2
		1650	2420	2560	5620	9800	50	2
		1320	1830	2010	/	5000	70	2
		820	1150	1250	/	/	100	2
		1650	2420	2560	5620	9800	64	3
		1650	2420	2560	5620	9800	80	3
		1650	2420	2560	5620	9800	100	3
		1650	/	/	5620	9800	150	3
		1650	2420	2560	5620	9800	200	3
		1650	2420	2560	5620	9800	250	3
		1650	2420	2560	5620	9800	350	3
		1650	2420	2560	5620	9800	400	3
		1650	2420	2560	5620	9800	500	3
		1320	1830	2080	3520	5000	700	3
		820	1150	1250	/	3500	1000	3
Emergency stop torque	Nm	2times rated output torque
Maximum radial force	N	14500	50000	60000	95000	125000	/	/
Maximum axial force	N	7250	25000	30000	70000	90000	/	/
Rated input speed n1	rpm	3000	2500	2500	2000	1500	3-1000	/
Maximum input speed n1	rpm	4000	4000	4000	3000	2500	3-1000	/
Super precision backspace P0	arcmin	/	/	/	/	/	/	/
Super precision backspace P0	arcmin	/	/	/	/	/	/	/
Precise backspace P1	arcmin	≤8	≤8	≤8	≤8	≤8	3-1000	1
		≤12	≤12	≤12	≤12	≤12	/	2
		≤15	≤15	≤15	≤15	≤15	/	3
Standard backspace P2	arcmin	≤10	≤10	≤10	≤10	≤10	/	1
		≤15	≤15	≤15	≤15	≤15	/	2
		≤18	≤18	≤18	≤18	≤18	/	3
Torsional rigidity	Nm/arcmin	2.8	7.5	15.5	48.5	77.2	3-100	1、2
Service temperature	℃	-20℃-+90℃
Average service life	h	20000
Full load efficiency	%	97						1
		95						2
		93						3
Protection class	/	IP65						1
								2
								3
Mounting direction	/	Any direction						1、2、3
Noise value	dba/m	≤70	≤70	≤70	≤70	≤70	3-100	1、2、3
Lubrication mode	/	All synthetic lubricating oils					3-100	1、2、3

ZPLX Series Planetary Reducer Technical Parameters

	Model	ZPLX180			ZPLX220			ZPLX240			ZPLX280			ZPLX330
	Stage	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
D	D1	180			220			240			280			340
	D2	13			17			19			18			22
	D3	215			250			265			315			370
	D4	16			20			20			22			25
	D5	59			79.5			79.5			85			95
	D6	M20*35			M20*35			M20*35			M20*35			M20*35
	D7	160			180			225			250			290
	D8	55			75			75			80			90
L	L1	188.1	226.6	274.1	232.6	305.6	342.6	232.6	305.6	342.6	260	325.6	403	-	408.1	495.6
	L2	106			140			140			145			153
	L3	20			30			30			35			30
	L4	85			108			108			105			120
	L5	10			10			10			10			10
	L6	65			90			90			90			100
	L7	25			25			25			30			30
C	C1	35			35			35			35			35
	C2	114.3			114.3			180			114.3			114.3
	C3	10			10			10			10			10
	C4	82			82			82			82			82
	C5	154			154			154			154			154
	C6	M12*30			M12*30			M12*30			M12*30			M12*30
	C7	200			200			215			200			200
	C8	180			180			190			180			180
