Machine Features:
• 140 Ton Hydraulic Clamping Force
– Suitable for medium-size molds and industrial plastic parts
– Stable clamping performance for electric box covers
• High Injection Capacity
– Injection weight up to 239 g
– Plasticizing capacity 144 g/s for efficient material melting
– Injection rate 144 g/s ensures stable cavity filling
• Wide Mold Compatibility
– Tie bar spacing: 460 × 410 mm
– Mold height range: 150–450 mm
– Mold opening stroke: 380 mm
• Reliable Screw & Injection System
– Screw diameter 42 mm
– Screw speed adjustable from 1–240 rpm
– Optimized L/D ratio for uniform plasticizing
• Strong Ejector System
– 5 ejectors for balanced part release
– Ejector stroke 120 mm
– Ejector force up to 42 kN
• Automatic & Energy-Efficient Operation
– Automatic control for stable production cycles
– Optimized hydraulic system reduces energy consumption
• Wide Material Compatibility
– Suitable for PP, PC, ABS, PET, PVC, HDPE, PA and other thermoplastics
– Ideal for electrical housings, covers, and industrial plastic components
Products Specification:
| Category | Specification |
| Machine Type | Hydraulic |
| Structure | Horizontal |
| Clamping Force | 140 Ton |
| Plastic Type | Thermoplastic |
| Compatible Materials | PP, PC, ABS, PET, PVC, HDPE, PA, blended plastics |
| Injection Weight | 239 g |
| Theoretical Shot Volume | 263 cm³ |
| Plasticizing Capacity | 144 g/s |
| Injection Rate | 144 g/s |
| Screw Diameter | 42 mm |
| Screw Speed | 1–240 rpm |
| Screw L/D Ratio | 20 |
| Distance Between Tie Bars | 460 × 410 mm |
| Mold Height Range | 150–450 mm |
| Mold Opening Stroke | 380 mm |
| Ejector Number | 5 |
| Ejector Stroke | 120 mm |
| Ejector Force | 42 kN |
| Installed Power | 23 kW |
| Machine Weight | 4,300 kg |
| Machine Dimensions (L×W×H) | 4.6 × 1.25 × 2.0 m |
| Control System | PLC-controlled automatic operation |
| Application | Electric box covers, industrial plastic housings |
| Inspection | Machinery test report and video inspection available |

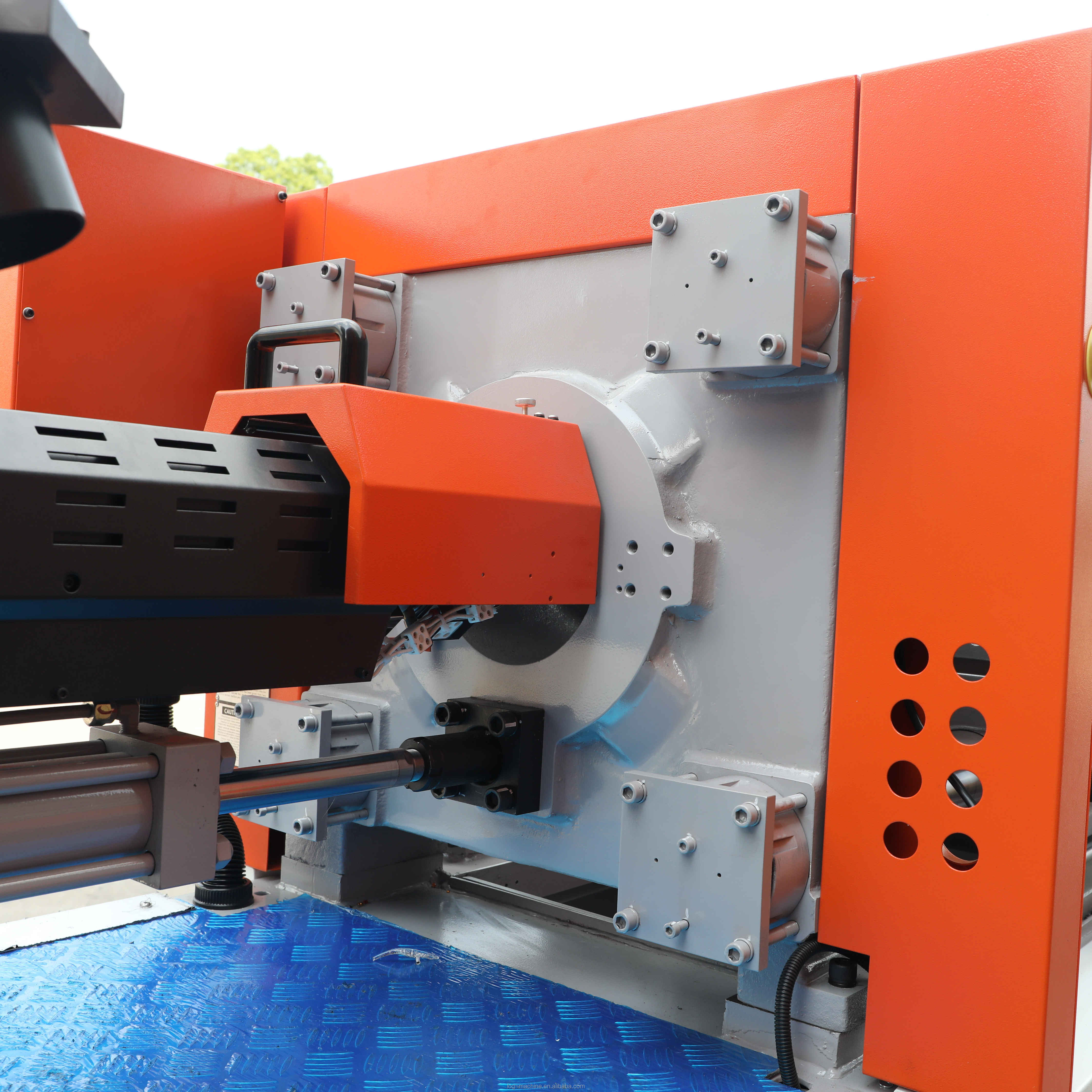

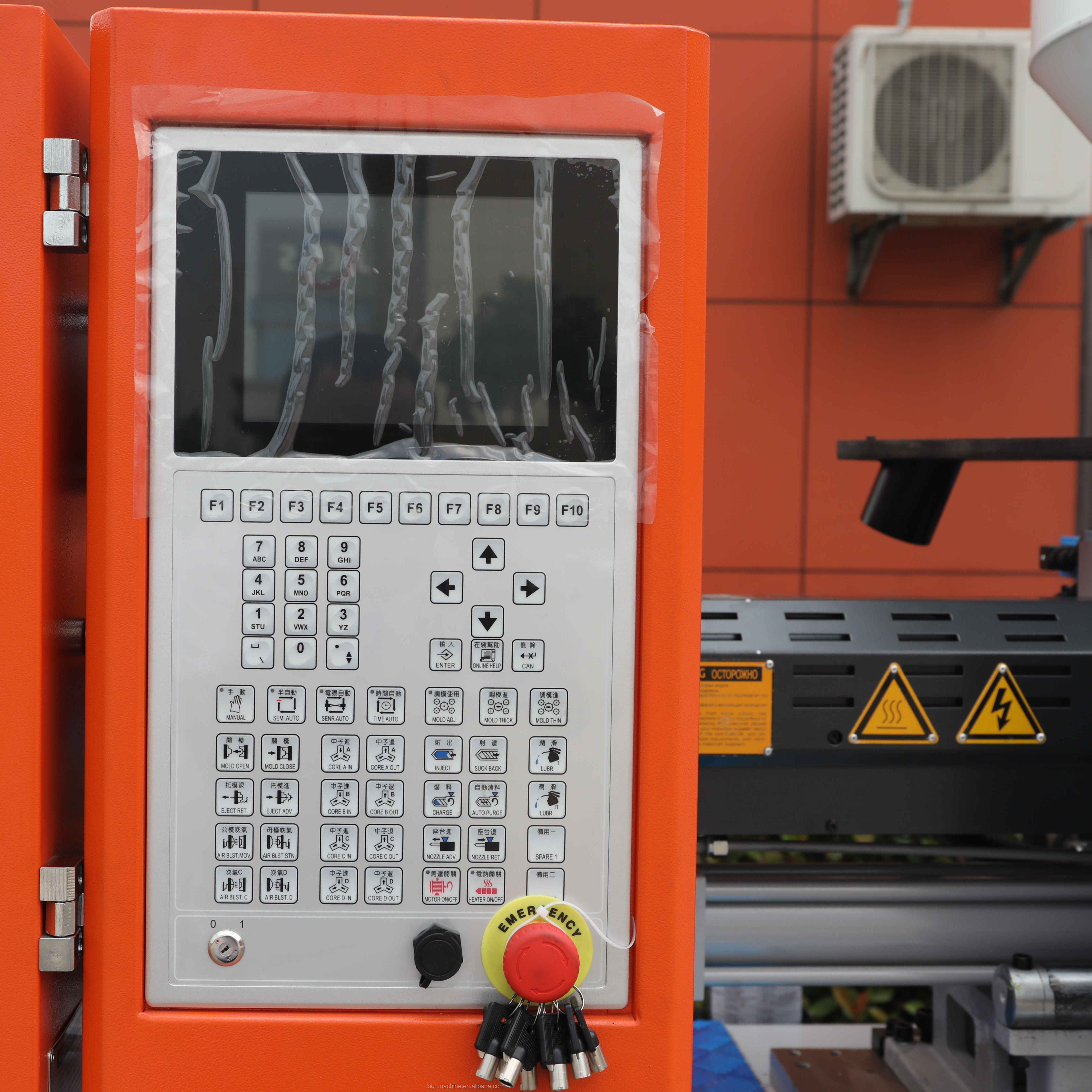

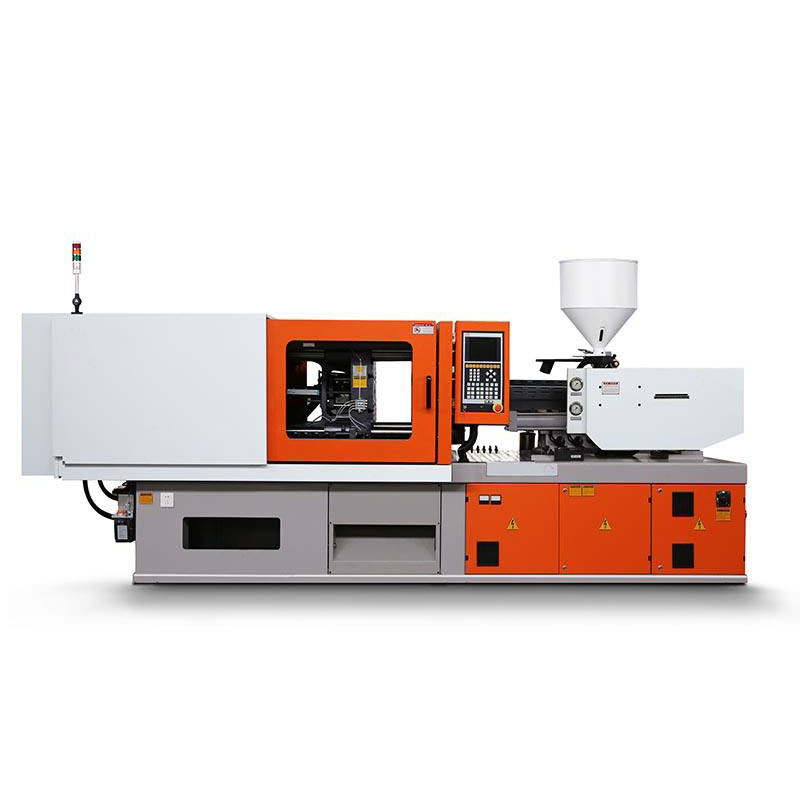

Products Pictures:
