Machine Features:
• Hybrid Drive System (Electric + Servo Hydraulic)
– Electric drive for injection and material storage ensures high precision
– Servo hydraulic system for mold clamping, ejector and core pulling
– Optimized balance of energy saving and stable performance

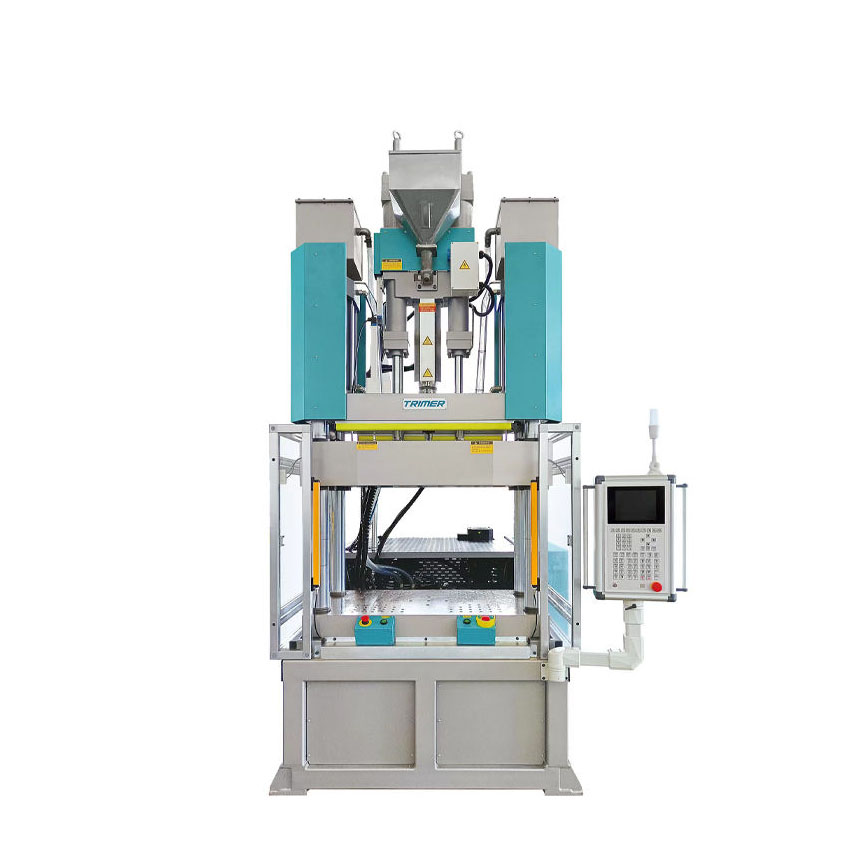

• Vertical Structure for Insert Molding
– Vertical mold opening suitable for insert molding applications
– Supports one upper mold with dual lower molds
– Optional rotary or sliding table improves productivity by 30%–50%
• Stable Injection & Plasticizing Performance
– Injection weight up to 30 g
– Injection rate up to 80 g/s
– Plasticizing capacity 30 g/s for consistent material flow
• Precision Temperature & Pressure Control
– Multi-stage electrothermal mold temperature control
– Real-time monitoring of injection and back pressure via load cell
– Optimized insulation design reduces heat loss
• Durable Injection Components
– Alloy screw and barrel suitable for engineering plastics
– Water-cooled screw, barrel and closed nozzle design
– Nozzle buffer device reduces wear on nozzle and mold
• Intelligent Control & User-Friendly Operation
– 12-inch human-machine interface
– Dual operation modes: touchscreen and physical buttons
– Automatic lubrication system for injection unit
• Safety & Quality Enhancement Options
– Optional vacuum system to prevent product bubbles
– Integrated mold protection and core pulling functions
– Designed for stable long-term industrial operation
Products Specification:
| Category | Specification |
| Machine Type | Hybrid (Electric Injection + Servo Hydraulic Clamping) |
| Structure | Vertical |
| Application | Insert molding, plastic parts production |
| Compatible Materials | ABS, PET, PP, PVC, TPE, PA, POM and engineering plastics |
| Injection Weight | 30 g |
| Theoretical Shot Volume | 120 cm³ |
| Plasticizing Capacity | 30 g/s |
| Injection Rate | 80 g/s |
| Mold Height Range | 200–350 mm |
| Mold Opening Stroke | 350 mm |
| Ejector Number | 2 |
| Ejector Stroke | 350 mm |
| Ejector Force | 80 kN |
| Screw Diameter | 120 mm |
| Installed Power | 11 kW |
| Machine Weight | 1,200 kg |
| Drive System | Electric + Servo Hydraulic |
| Control System | PLC with HMI |
| Table Type | Fixed / Sliding / Rotary (optional) |
| Monitoring | Real-time pressure monitoring |
| Lubrication | Automatic lubrication system |
Products Pictures:
