| Quantity: | |
|---|---|
Machine Features:
• Dedicated PET Preform Production Design
– Optimized for PET bottle preform injection molding
– Supports multi-cavity preform molds
– Suitable for continuous, high-volume production
• High-Speed & Large Injection Capacity
– Injection weight up to 1165 g
– Injection rate up to 1200 g/s
– Large theoretical shot volume for thick and long preforms
• Stable Electric Injection System
– Electric-driven injection ensures fast response and precise control
– Consistent plasticizing and melt stability
– Reduced energy consumption compared with traditional systems
• Large Mold Installation Space
– Wide tie bar spacing for large PET preform molds
– Mold height range: 400–480 mm
– Long mold opening stroke up to 600 mm
• Strong Clamping & Ejector System
– High clamping force suitable for high-pressure PET injection
– Five ejectors ensure smooth and stable demolding
– Ejector force up to 800 kN for reliable part release
• Advanced Control & Automation
– PLC-controlled system with LCD display
– Multi-stage injection speed and pressure control
– Automatic mold height adjustment and melt decompression control
• High Product Consistency & Quality
– Precise control of injection, back pressure and screw rotation
– High qualified product rate suitable for industrial production
– Designed for long-term stable operation
Products Specification:
| Category | Specification |
| Machine Type | Electric PET Preform Injection Moulding Machine |
| Structure | Horizontal |
| Application | PET bottle preform production |
| Plastic Material | PET |
| Injection Weight | Up to 1165 g |
| Theoretical Shot Volume | 1375 cm³ |
| Injection Rate | Up to 1200 g/s |
| Plasticizing Capacity | 1375 g/s |
| Screw Diameter | 67 mm |
| Screw Speed | 1–190 rpm |
| Screw L/D Ratio | 25 |
| Clamping Force | 1600 kN |
| Distance Between Tie Bars | 800 × 600 mm |
| Mold Height Range | 400–480 mm |
| Mold Opening Stroke | 600 mm |
| Ejector Number | 5 |
| Ejector Stroke | 800 mm |
| Ejector Force | 800 kN |
| Installed Power | 25 kW |
| Control System | PLC with LCD display |
| Operation Mode | Fully automatic |
| Production Type | Continuous high-volume production |

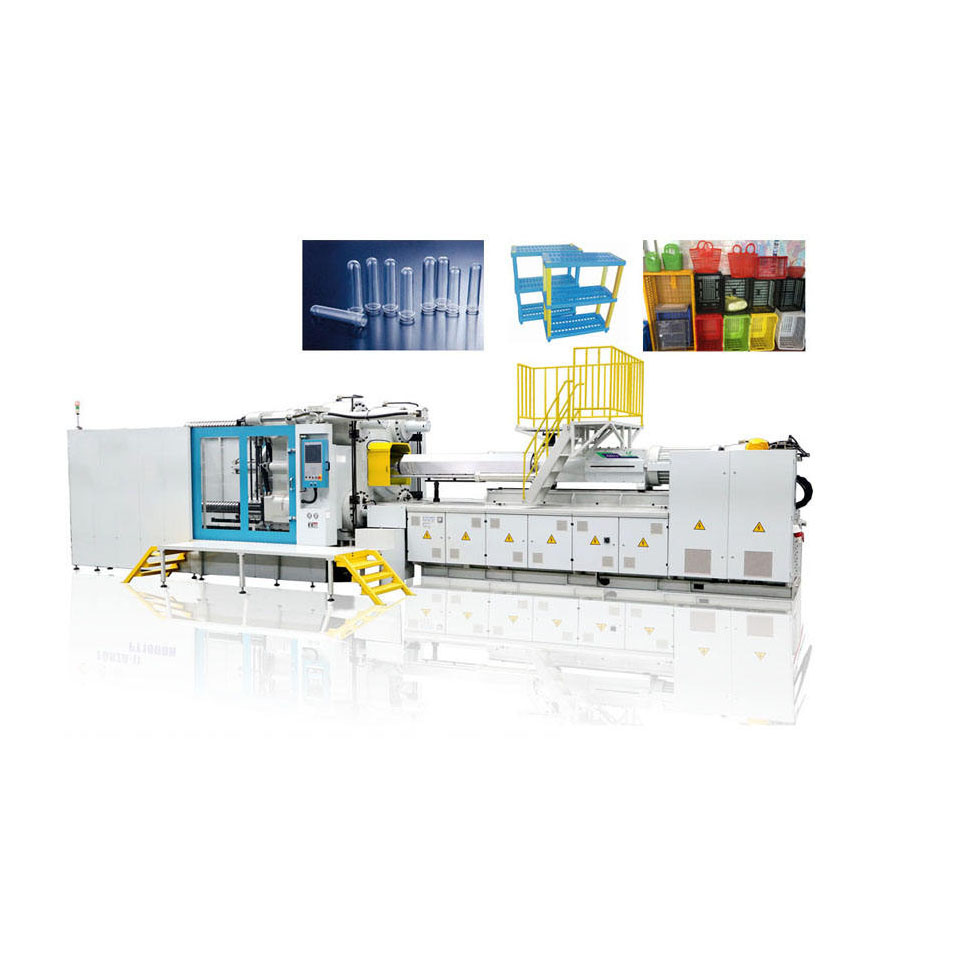

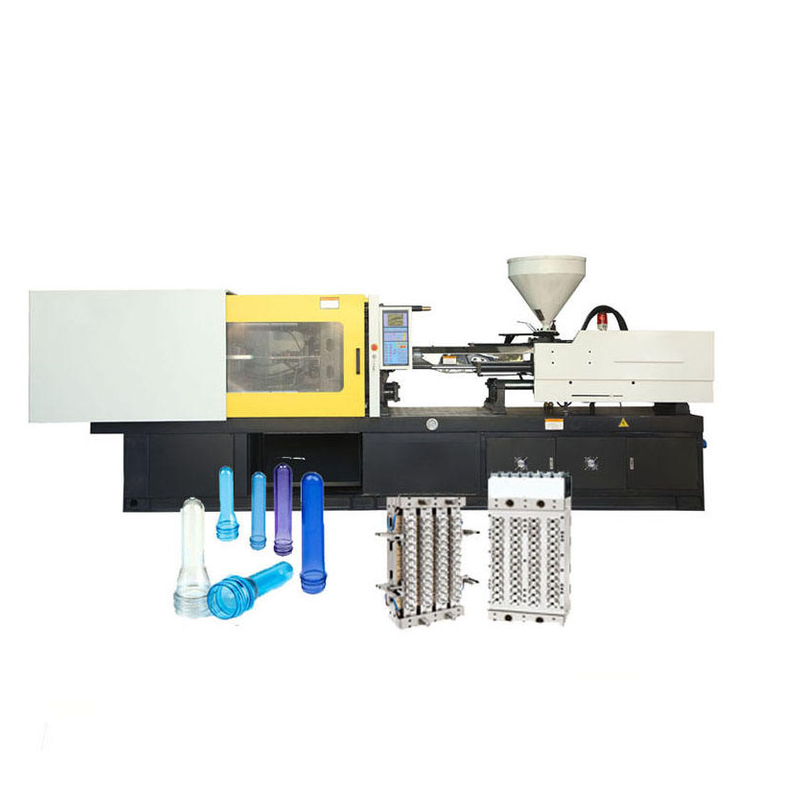

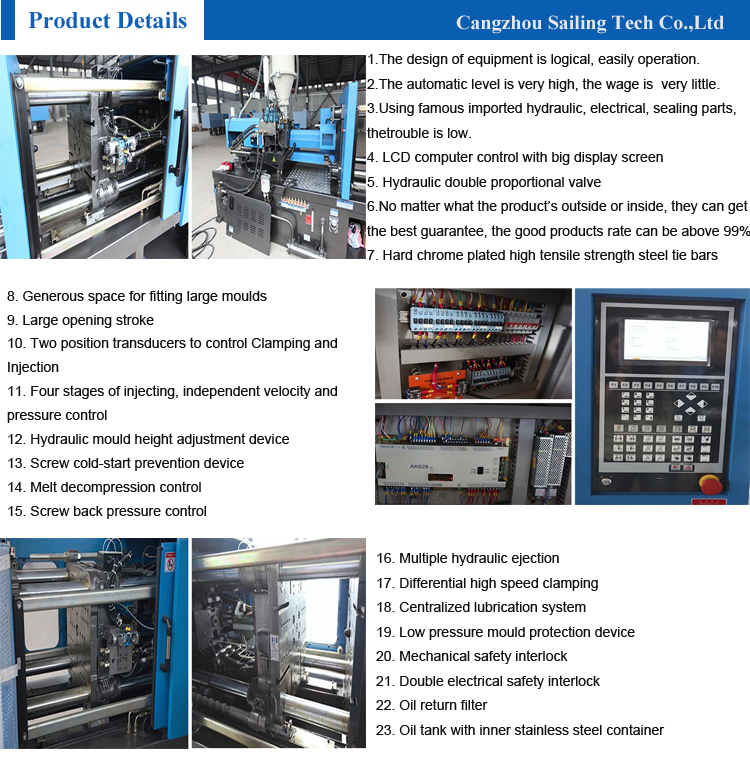

Products Pictures:
