Machine Features:
• Fully Electric Servo Drive Technology
– All-electric structure for precise and stable injection control
– Eliminates hydraulic oil, ensuring clean and energy-efficient operation
• High-Rigidity Clamping Unit
– Newly designed clamping structure with enhanced rigidity
– Reduces deformation and contraction defects
– Ideal for precision plastic products
• High-Speed & High-Precision Injection
– Injection speed up to 350 mm/s
– Injection weight up to 102 g
– Injection pressure up to 211 MPa for accurate cavity filling
• Powerful Injection Performance
– Plasticizing capacity 280 g/s
– Injection rate 280 g/s ensures short cycle times
• Advanced Control System
– High-performance controller with real-time data processing
– High-speed communication bus ensures precise and stable motion control
• Modular Injection Unit Design
– Injection unit can be configured according to product requirements
– Suitable for a wide range of molded plastic parts
• Energy-Saving & Automatic Operation
– Optimized electric drive reduces overall power consumption
– Fully automatic operation improves production efficiency
Products Specification:
| Category | Specification |
| Machine Type | Fully electric injection molding machine |
| Structure | High-precision, stable performance design |
| Injection Weight | 102 g |
| Theoretical Shot Volume | 113 cm³ |
| Plasticizing Capacity | 280 g/s |
| Injection Rate | 280 g/s |
| Injection Speed | Up to 350 mm/s |
| Injection Pressure | 211 MPa |
| Screw Diameter | 32 mm |
| Screw L/D Ratio | 20.5 |
| Mold Height Range | 150 – 500 mm |
| Distance Between Tie Bars | 470 × 470 mm |
| Platen Size | 705 × 705 mm |
| Mold Opening Stroke | 400 mm |
| Ejector Stroke | 100 mm |
| Ejector Force | 30 kN |
| Installed Power | 35.8 kW |
| Machine Weight | 5,300 kg |
| Machine Dimensions (L×W×H) | 5.5 × 1.5 × 2.1 m |
| Control System | High-performance controller with high-speed bus communication |
| Application | Automotive parts, electronics components |
| Inspection | Machinery test report and video inspection available |

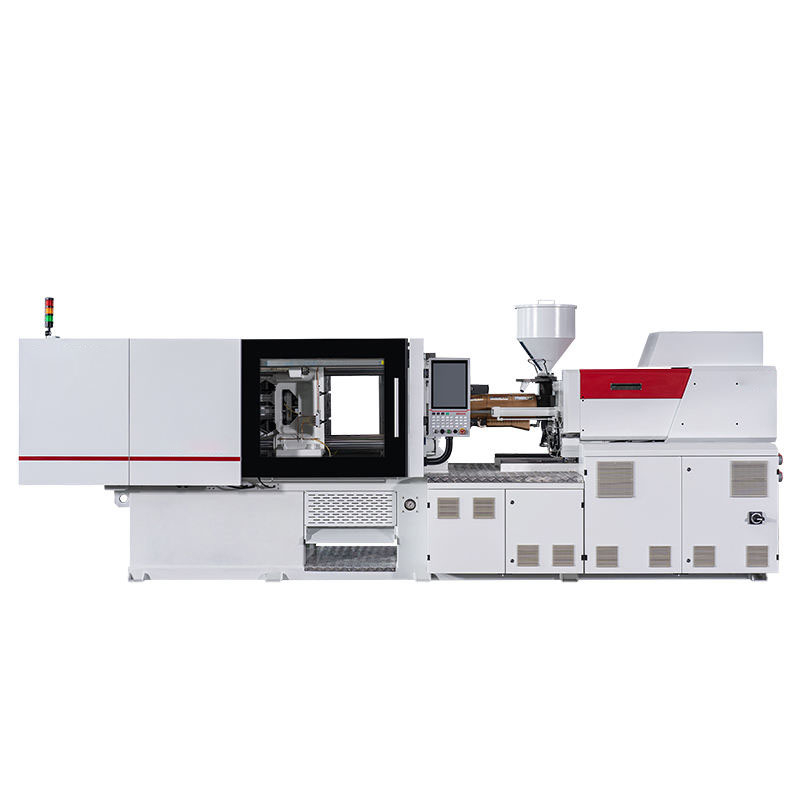

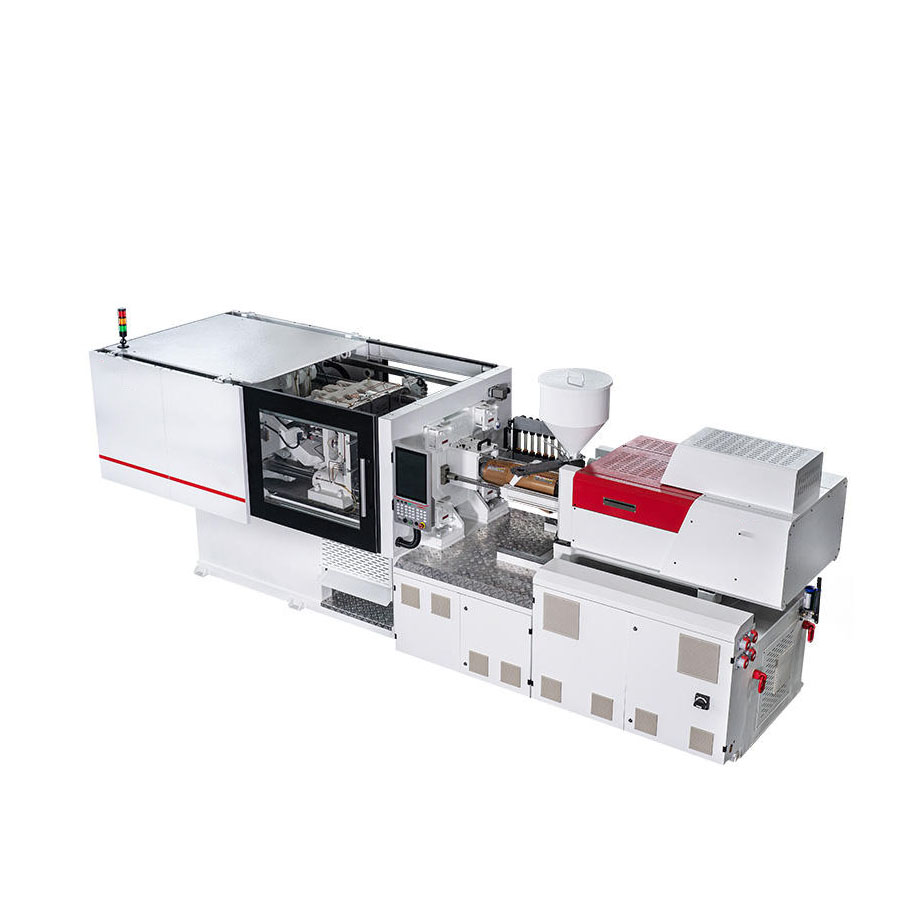

Products Pictures:
