Machine Features:
• Vertical Injection Structure
– Vertical mold opening and vertical injection
– Suitable for insert molding applications
– Fixed bottom mold with movable upper mold design
• Electric Drive System
– Electric injection system for stable and precise control
– Low energy consumption with installed power of 2.4 kW
– Clean operation with reduced maintenance requirements
• Precise Plasticizing & Injection
– Injection weight up to 84 g
– Injection rate up to 83 g/s
– Plasticizing capacity 44 g/s for uniform material melting
• Flexible Parameter Adjustment
– Multi-stage temperature control
– Adjustable screw speed, injection speed and back pressure
– Suitable for various thermoplastic materials
• Reliable Ejector System
– Five ejectors for smooth and stable product removal
– Ejector force up to 12.7 kN
• Mold Protection & Safety
– Low-pressure mold closing system
– Helps protect molds and extend service life
– Stable and safe operation during production
Products Specification:
| Category | Specification |
| Machine Type | Electric |
| Structure | Vertical |
| Application | Insert molding, small plastic parts |
| Compatible Materials | ABS, PET, PP, PC, PVC |
| Injection Weight | 84 g |
| Theoretical Shot Volume | 10 cm³ |
| Plasticizing Capacity | 44 g/s |
| Injection Rate | 83 g/s |
| Screw Diameter | 20 mm |
| Screw Speed | 30–50 rpm |
| Ejector Number | 5 |
| Ejector Force | 12.7 kN |
| Installed Power | 2.4 kW |
| Machine Weight | 1,200 kg |
| Drive System | Electric |
| Control System | PLC control |
| Mold Structure | Fixed bottom mold, movable upper mold |
| Operation Mode | Automatic |

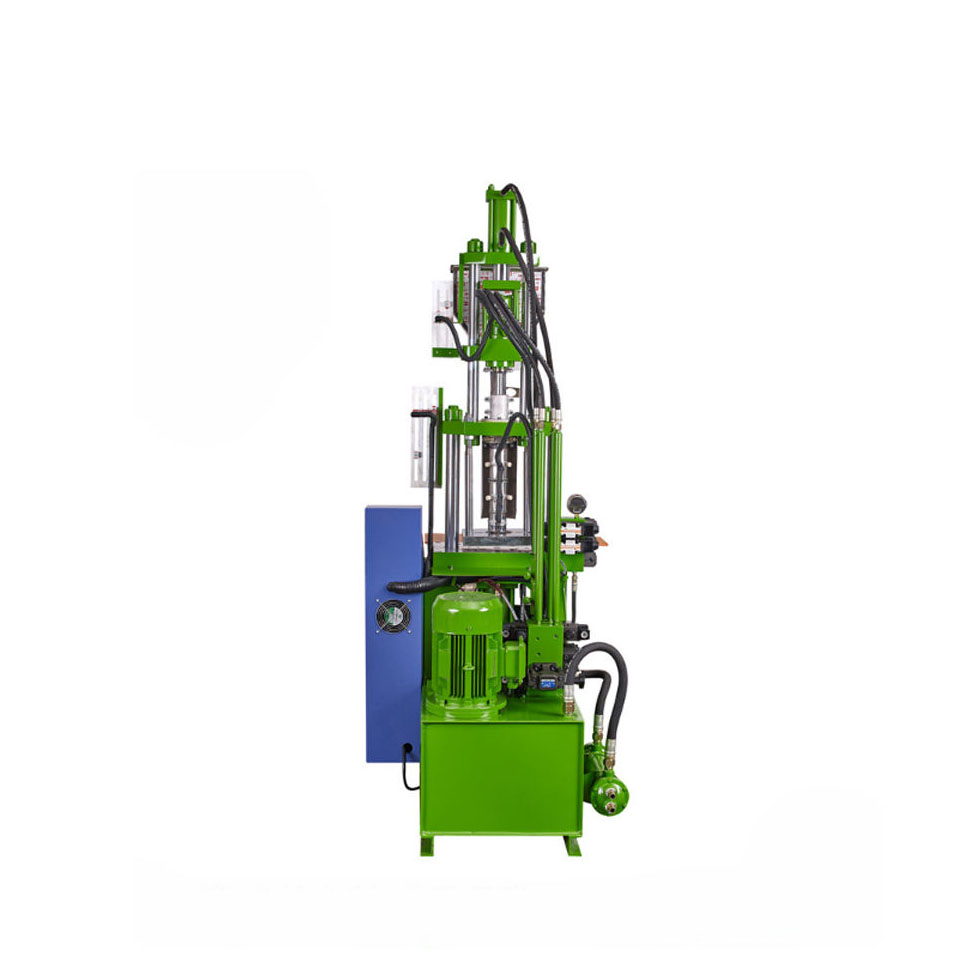

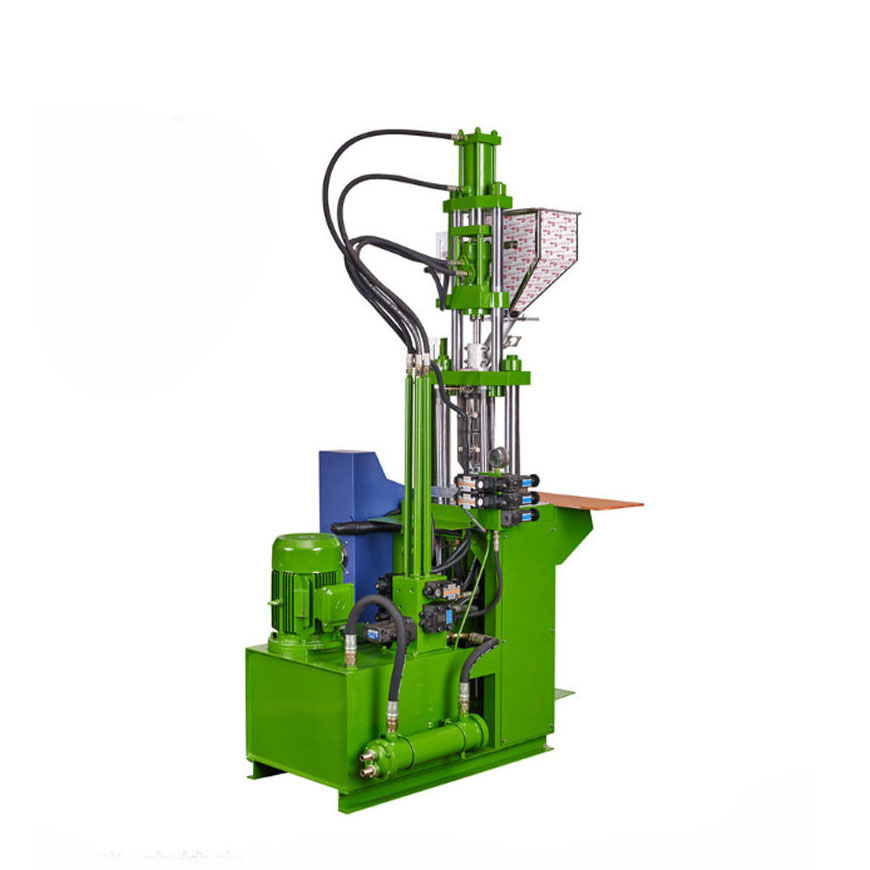

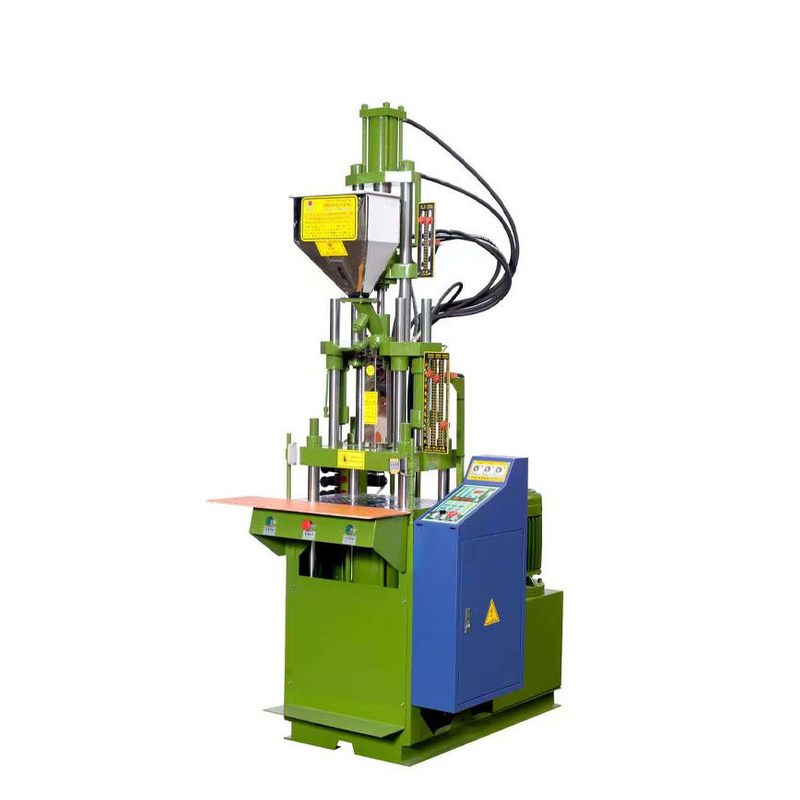

Products Pictures:
