| Quantity: | |
|---|---|
Machine Features:
• Hydraulic Horizontal Injection Structure
– Stable hydraulic drive system
– Horizontal clamping design suitable for mass production
• High Injection Capacity
– Injection weight up to 200 g
– Plasticizing capacity 130 g/s for efficient material melting
– Injection rate up to 100 g/s
• Wide Plastic Material Compatibility
– Suitable for PC, ABS, PET, PVC, PA, HDPE, LDPE and blended materials

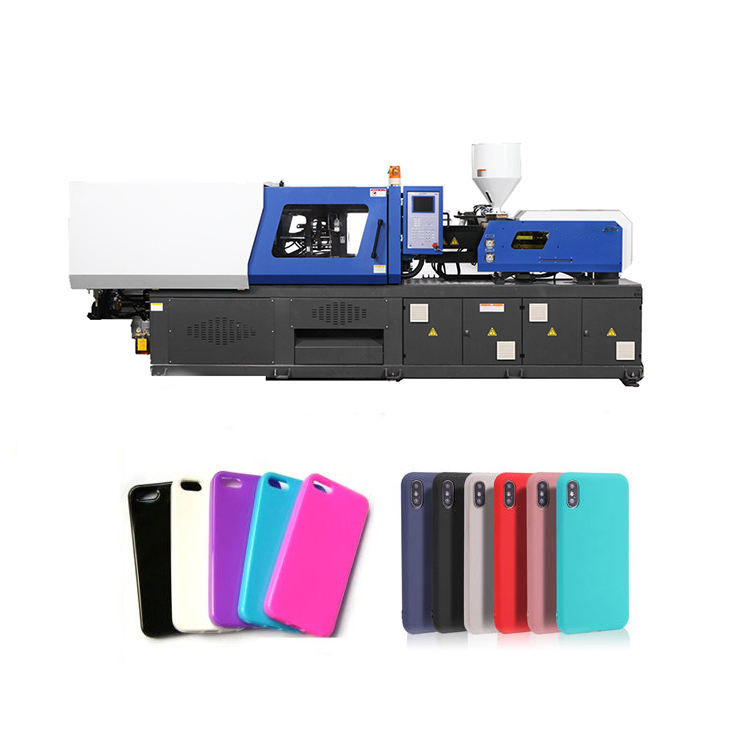

– Ideal for phone cases and consumer plastic products
• Precision Screw & Injection Control
– Screw diameter 40 mm
– Screw speed adjustable from 150–450 rpm
– Injection pressure up to 182 MPa for accurate filling
• Multi-Ejector System
– 5 ejectors with 130 mm stroke
– Ejector force up to 45 kN ensures smooth part removal
• Industrial-Grade Components
– Motor, pump and PLC as core components
– Designed for stable long-term operation
• High Precision & Consistent Output
– Suitable for high-precision plastic molding
– Supports continuous production cycles
Products Specification:
| ITEM | UNIT | DATA | |||
| Injection Unit | Screw Diameter | mm | 40 | 45 | 50 |
| Screw L/D Ratio | L/D | 23.6 | 21 | 18.9 | |
| Injection Volume | cm3 | 264 | 334 | 412 | |
| Shot Weight | g | 240 | 304 | 375 | |
| Injection Pressure | Mpa | 228 | 180 | 146 | |
| Clamping Unit | Clamping Force | kN | 1700 | ||
| Opening Stroke | mm | 440 | |||
| Mould Thickness(Min-Max) | mm | 180-520 | |||
| Space Between Tie-Bars | mm | 470×470 | |||
| Ejector Force | kN | 45 | |||
| Ejector Stroke | mm | 140 | |||
| General | Motor Power | kW | 15 | ||
| Heater | kW | 11 | |||
| Pump Pressure | Mpa | 16 | |||
| Machine Dimension | m | 5.39×1.27×2.01 | |||
| Machine Weight | T | 5 | |||
| Mould Orientation Ring Diameter | mm | Φ125 | |||
| Nozzle Radius | mm | SR15 | |||
Products Pictures:
