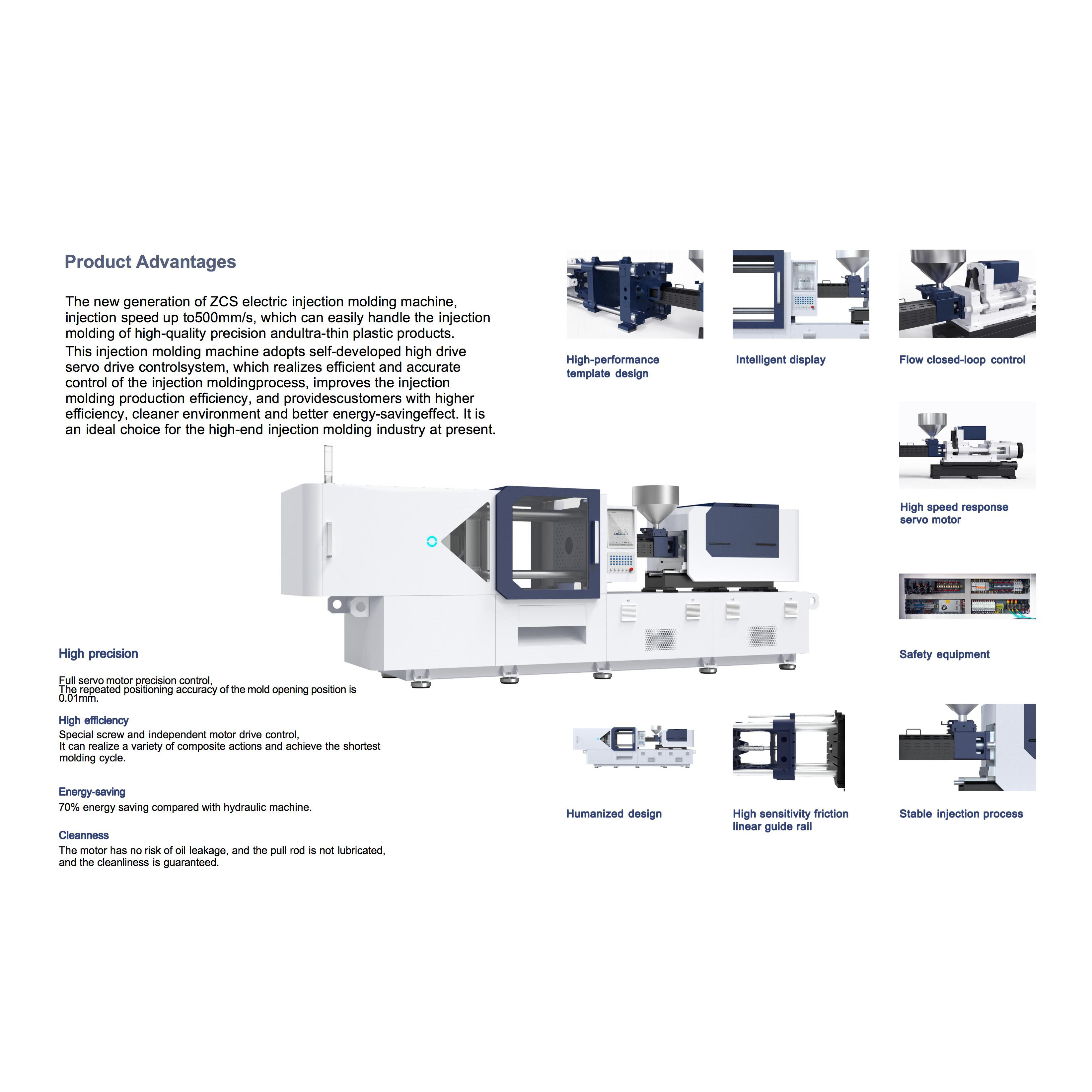

Machine Features:

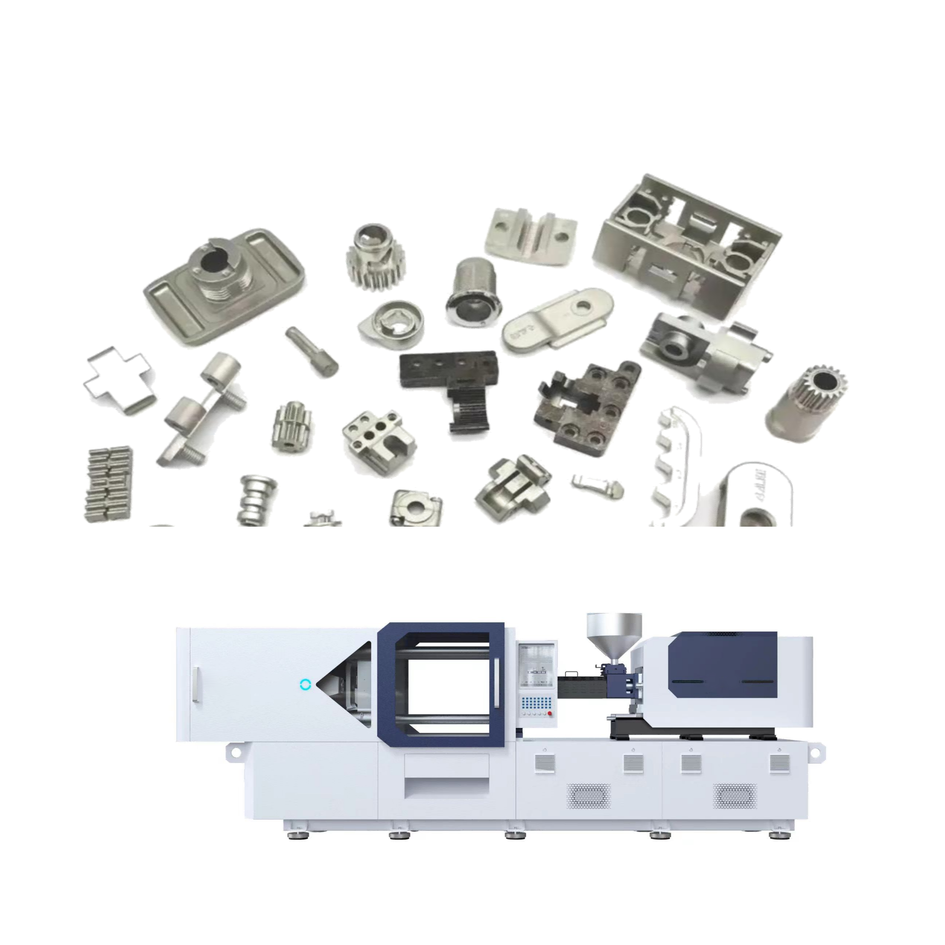

• Fully Electric Servo Drive System
– All-electric structure with full servo motor control
– Accurate and stable control of injection and mold movement
• High Precision Injection Performance
– Repeated mold positioning accuracy up to 0.01 mm
– Suitable for precision and ultra-thin plastic products
• High Efficiency Production
– Injection rate up to 6 g/s
– Optimized screw and independent motor drive enable shorter molding cycles
• Energy-Saving & Clean Operation
– Up to 70% energy saving compared with hydraulic machines
– No hydraulic oil, no leakage risk, clean production environment
• Compact Horizontal Structure
– Horizontal clamping design suitable for small and medium molds
– Space-saving footprint for workshops with limited space

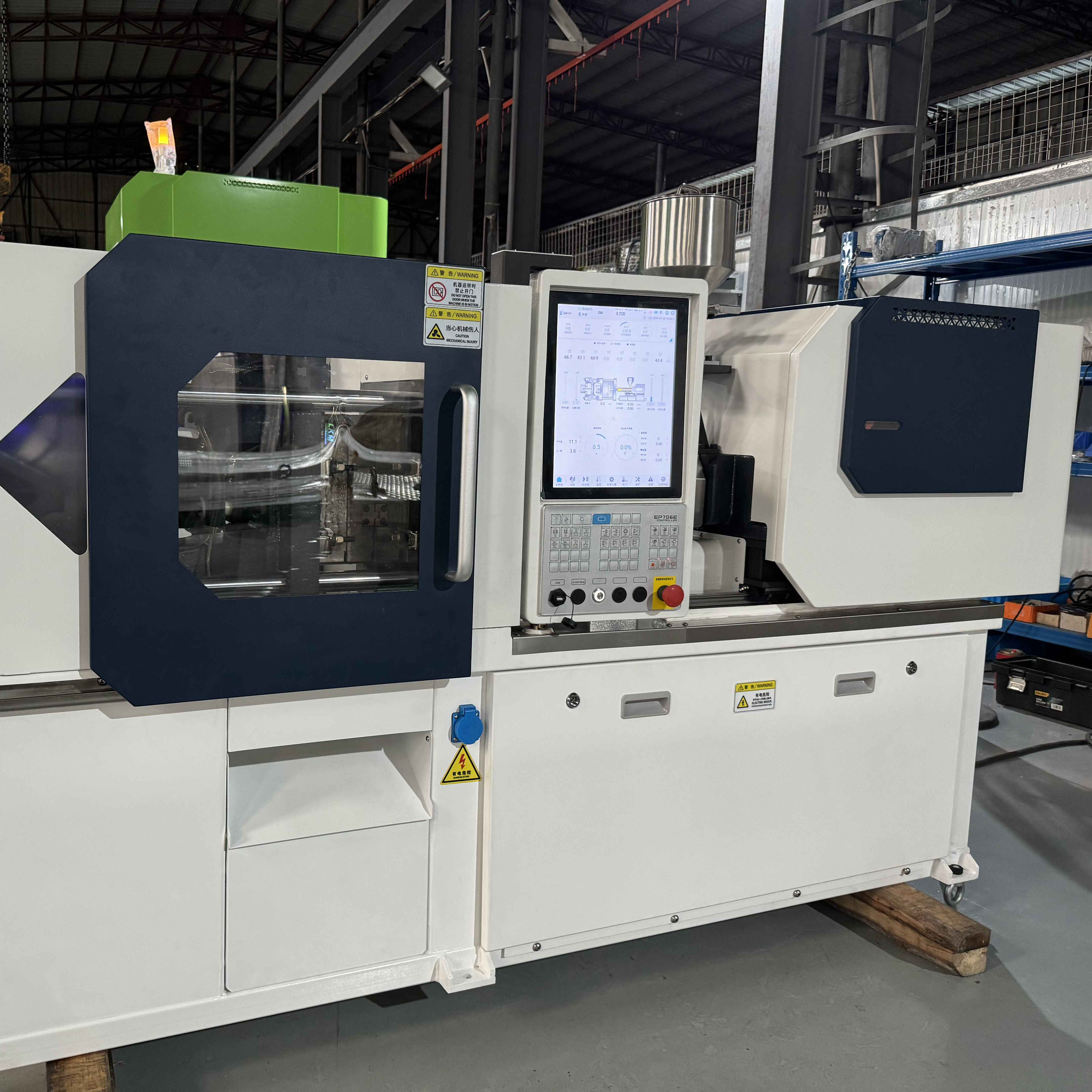

• Designed for Phone Case Manufacturing
– Optimized for PET, PC, ABS and blended plastics
– Ideal for mobile phone cases and small consumer plastic products
• Stable Ejector System
– 4 ejectors with 35 mm stroke
– Ensures smooth and reliable part removal
Products Specification:
| Category | Specification |
| Machine Type | Fully electric |
| Structure | Horizontal |
| Plastic Type | Thermoplastic |
| Compatible Materials | PP, PC, ABS, PET, PVC, ABS/PP |
| Injection Weight | 22 g |
| Plasticizing Capacity | 30 g/s |
| Injection Rate | 6 g/s |
| Theoretical Shot Volume | 11 cm³ |
| Screw Diameter | 20 mm |
| Screw Speed | 0–380 rpm |
| Screw L/D Ratio | 22 |
| Distance Between Tie Bars (W × H) | 255 × 275 mm |
| Mold Opening Stroke | 340 mm |
| Ejector Number | 4 |
| Ejector Stroke | 35 mm |
| Ejector Force | 7 kN |
| Installed Power | 12 kW |
| Machine Weight | 800 kg |
| Control System | PLC with servo motor drive |
| Application | Phone cases, thin-wall plastic products |
| Inspection | Machinery test report and video inspection available |

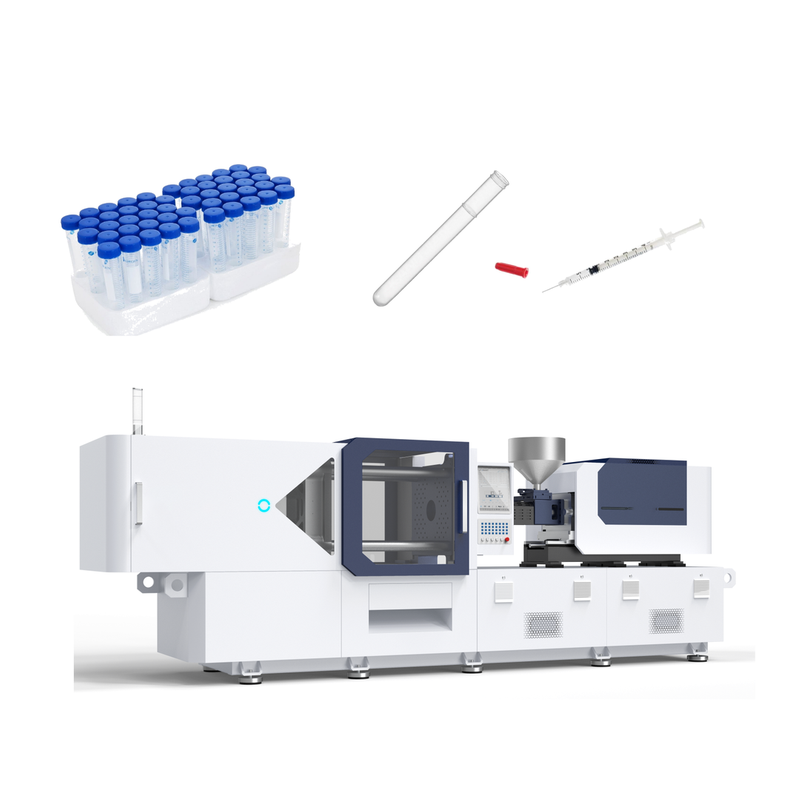

Products Pictures:
