Machine Features:
• Vertical Injection Structure
– Vertical mold opening and vertical injection
– Ideal for insert molding applications
– Easy manual or automated insert placement
• Stable Plasticizing & Injection Performance
– Nitrided steel screw and barrel for durability
– Plasticizing capacity up to 50 g/s
– Injection weight up to 64 g
• Precise Multi-Stage Control
– Multi-stage injection pressure and speed control
– Stepless adjustment of back pressure
– Suitable for precision plastic parts
• Safe & Reliable Clamping System
– Direct pressure mold locking cylinder
– Fast mold clamping with low-pressure safety protection
– Improves mold service life and operation safety
• Intelligent Control & Protection
– PLC-controlled electrical system
– Automatic fault display for quick maintenance
– Electrical protection devices for operator safety
• Compact & Energy-Efficient Design
– Installed power: 4 kW
– Machine weight: 1,500 kg
– Optional servo energy-saving motor available
• Flexible Production Capability
– Supports automatic insert loading and extraction
– Programmable for semi-automatic or fully automatic production
Products Specification:
| Screw Diameter | Mm | 26 | 28 | 30 |
| Injection Pressure | kg/cm² | 1530 | 1278 | 886 |
| Theoretical Shot Volume | cm³ | 61 | 70.8 | 81 |
| Max.Shot Weight(ps) | g | 56 | 64 | 74 |
| Safe Shot Weight(ps) | OZ | 2 | 2.27 | 2.6 |
| Max.Shot Weight(ps) | cm³/sec | 57 | 66 | 75.5 |
| Injection Rate | mm | 115 | ||
| Screw Speed Max. | rpm | 0-205 | ||
| Nozzle Comtact Force | Tons | 4.45 | ||
| Nozzle Retraction Stroke | mm | 170 | ||
| Clamping Force | Tons | 35 | ||
| Platen Size | mm | 540*380 | ||
| Distance between tie bere | mm | 375*205 | ||
| Min.Mold Height | mm | 158/58 | ||
| Opening Stroke | mm | 180 | ||
| Max.Open Daylight | mm | 338/238 | ||
| Ejetor Force | Tons | 1.3 | ||
| Ejetor Stoke | mm | 35 | ||
| Max.Hydaulic Pressure | kg/cm² | 140 | ||
| Pump Output | l/min | 34.5 | ||
| Oil Resservoir Capacity | l | 100 | ||
| Cooling Waer Consumption | l/hr | 400-600 | ||
| Pump Motor Power | KW/HP | 3.75/5.5HP | ||
| Berrel Heating Power | KW | 2.4 | ||
| Total Electricity | KW | 6.3 | ||

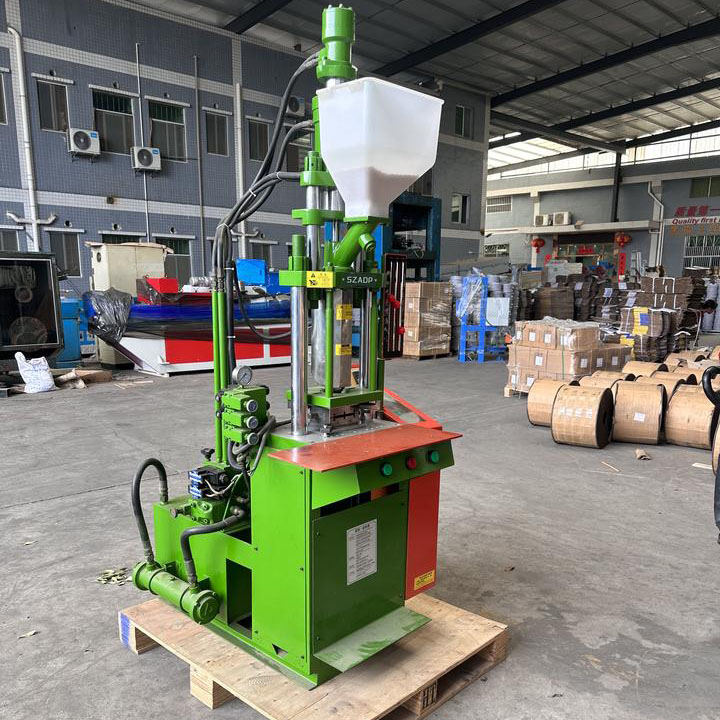

Products Pictures:
Machine Features:
• Vertical Injection Structure
– Vertical mold opening and vertical injection
– Ideal for insert molding applications
– Easy manual or automated insert placement
• Stable Plasticizing & Injection Performance
– Nitrided steel screw and barrel for durability
– Plasticizing capacity up to 50 g/s
– Injection weight up to 64 g
• Precise Multi-Stage Control
– Multi-stage injection pressure and speed control
– Stepless adjustment of back pressure
– Suitable for precision plastic parts
• Safe & Reliable Clamping System
– Direct pressure mold locking cylinder
– Fast mold clamping with low-pressure safety protection
– Improves mold service life and operation safety
• Intelligent Control & Protection
– PLC-controlled electrical system
– Automatic fault display for quick maintenance
– Electrical protection devices for operator safety
• Compact & Energy-Efficient Design
– Installed power: 4 kW
– Machine weight: 1,500 kg
– Optional servo energy-saving motor available
• Flexible Production Capability
– Supports automatic insert loading and extraction
– Programmable for semi-automatic or fully automatic production
Products Specification:
| Screw Diameter | Mm | 26 | 28 | 30 |
| Injection Pressure | kg/cm² | 1530 | 1278 | 886 |
| Theoretical Shot Volume | cm³ | 61 | 70.8 | 81 |
| Max.Shot Weight(ps) | g | 56 | 64 | 74 |
| Safe Shot Weight(ps) | OZ | 2 | 2.27 | 2.6 |
| Max.Shot Weight(ps) | cm³/sec | 57 | 66 | 75.5 |
| Injection Rate | mm | 115 | ||
| Screw Speed Max. | rpm | 0-205 | ||
| Nozzle Comtact Force | Tons | 4.45 | ||
| Nozzle Retraction Stroke | mm | 170 | ||
| Clamping Force | Tons | 35 | ||
| Platen Size | mm | 540*380 | ||
| Distance between tie bere | mm | 375*205 | ||
| Min.Mold Height | mm | 158/58 | ||
| Opening Stroke | mm | 180 | ||
| Max.Open Daylight | mm | 338/238 | ||
| Ejetor Force | Tons | 1.3 | ||
| Ejetor Stoke | mm | 35 | ||
| Max.Hydaulic Pressure | kg/cm² | 140 | ||
| Pump Output | l/min | 34.5 | ||
| Oil Resservoir Capacity | l | 100 | ||
| Cooling Waer Consumption | l/hr | 400-600 | ||
| Pump Motor Power | KW/HP | 3.75/5.5HP | ||
| Berrel Heating Power | KW | 2.4 | ||
| Total Electricity | KW | 6.3 | ||

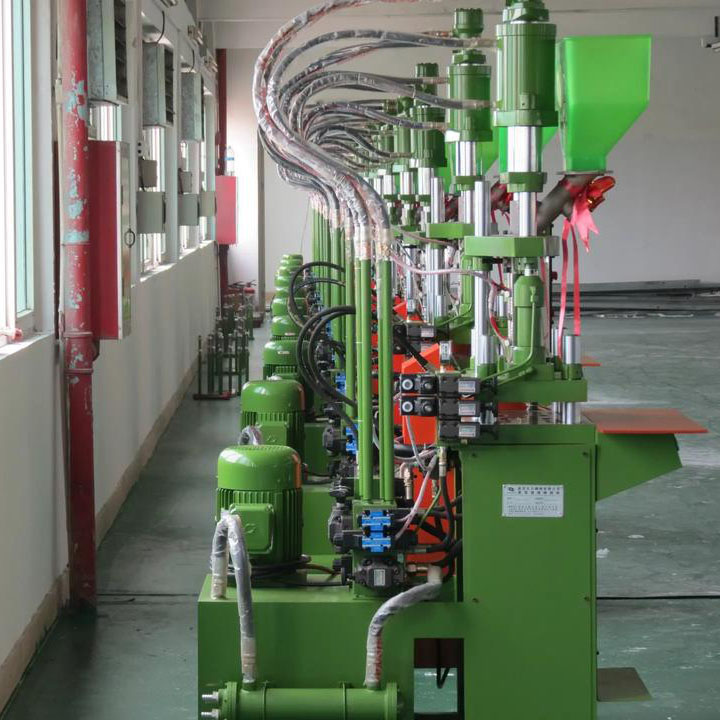

Products Pictures:
