Machine Features:
• Dual-Station Rotary Table Design
– 2-station rotary table enables parallel operation
– Molding and loading can be performed simultaneously
– Improves productivity and cycle efficiency
• Vertical Hydraulic Clamping Structure
– Vertical structure ideal for insert molding applications
– Stable hydraulic system ensures consistent clamping force
• Wide Material Compatibility
– Suitable for PP, PE, ABS, PC, PET, PVC, PA and engineering plastics
– Supports multi-material and composite plastic processing
• Precise Injection Performance
– Injection weight up to 89 g
– Injection rate 55 g/s for stable material filling
– Screw diameter 42 mm for balanced plasticizing
• Compact & Space-Saving Design
– Vertical layout reduces floor space requirement
– Suitable for workshops with limited space
• Reliable Ejector System
– Single ejector with 65 mm stroke
– Ejector force up to 22 kN ensures smooth part release
• Energy-Efficient Operation
– Hydraulic drive with optimized power consumption
– 18.3 kW installed power for stable industrial use
Products Specification:
| Specification | |||||
| Model | Unit | DV-850.2R | |||
| Injection Unit | Screw diameter | mm | Ф36 | Ф42 | Ф48 |
| Maximum injection pressure | Kg/cm2 | 2074 | 1523 | 1166 | |
| Theoretical shot volume | cm3 | 162 | 221 | 289 | |
| Maximum shot weight（PS） | g/Oz | 150（5.3） | 203（7.1） | 266（9.4） | |
| Injection rate | cm3/sec | 81 | 110 | 144 | |
| Clamping Unit | Clamping force | ton | 85 | ||
| tie bar distance | mm | -- | |||
| Minimum mold thickness | mm | 200/300（customization） | |||
| Opening stroke | mm | 250 | |||
| Open daylight | mm | 450/550（customization） | |||
| Ejector force | T | 2.7 | |||
| Ejector stroke | mm | 65 | |||
| Others | Pump motor power | Kw | 15 | ||
| Hydraulic system pressure | Kg/cm2 | 160 | |||
| Barrel heating power | Kw | 7.3 | |||
| Total wattage | Kw | 22.3 | |||
| Oil tank capacity | L | 280 | |||
| Machine weight (approx.) | T | 5.2 | |||
| Machine dimensions(approx.) | m | 3.3×1.8× 3.5 | |||

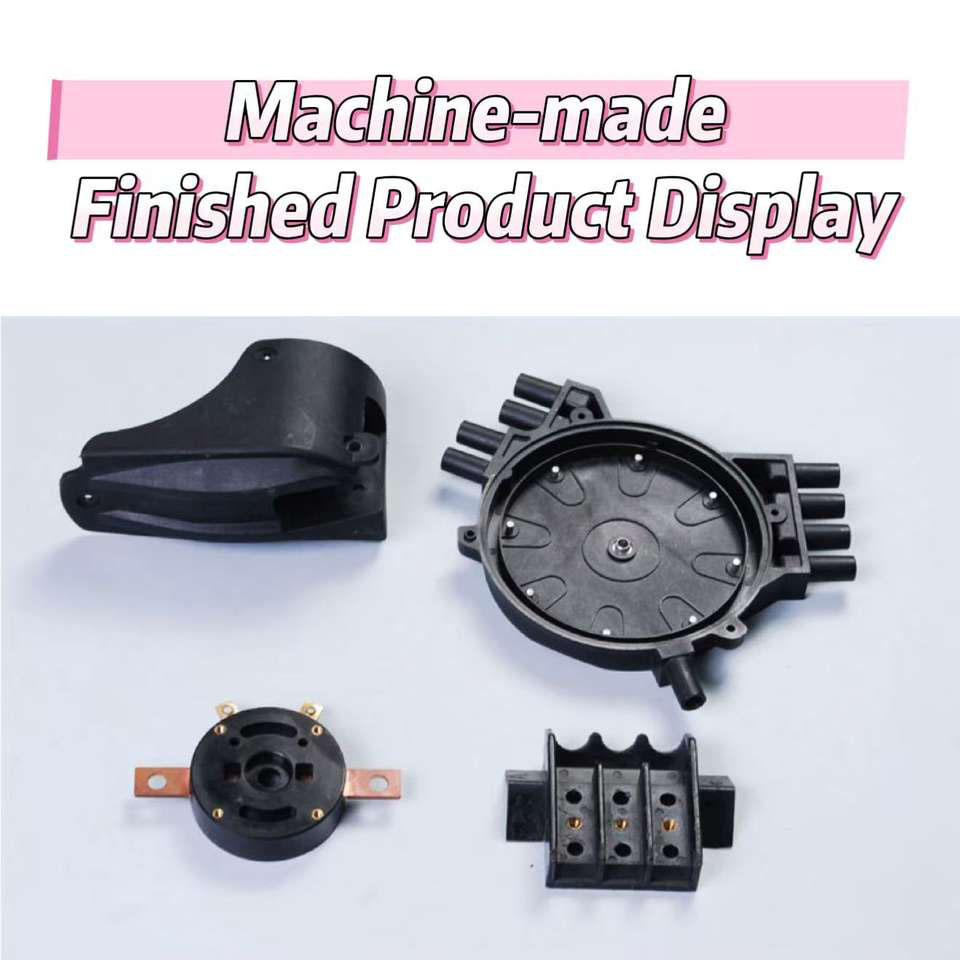

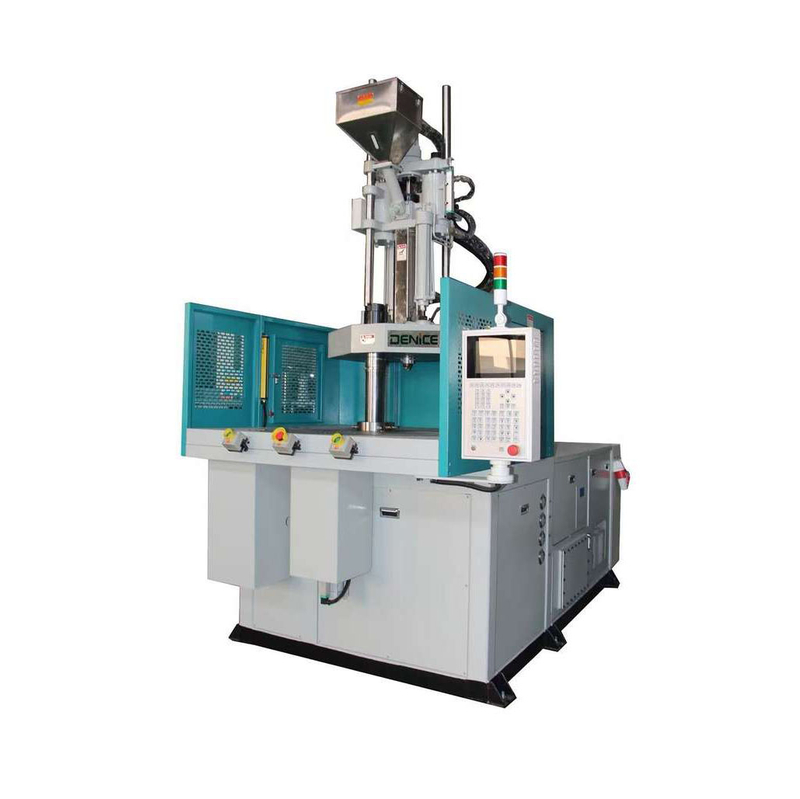

Products Pictures:
