Machine Features:

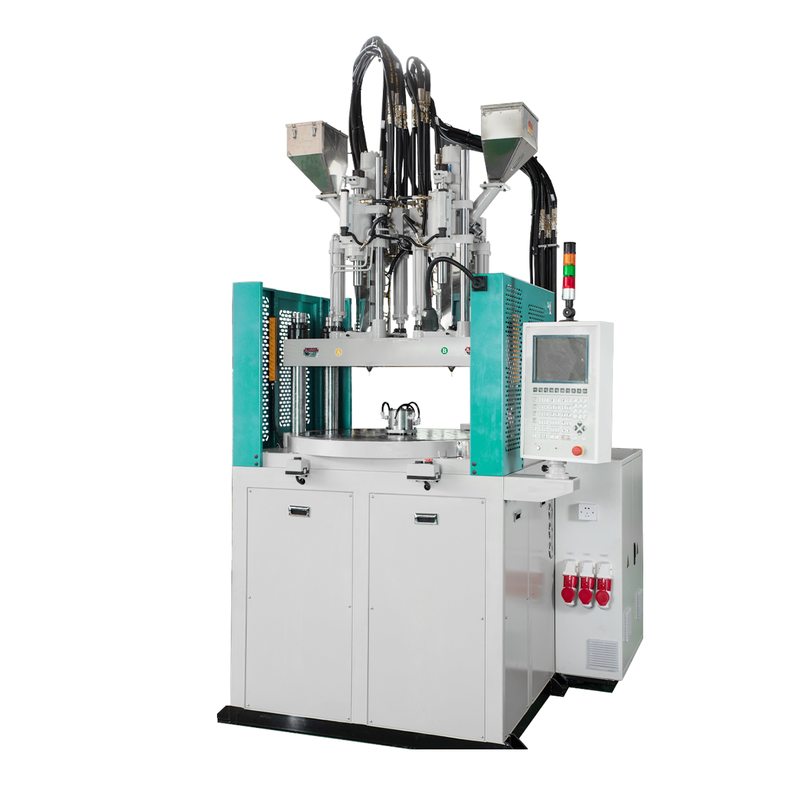

• Vertical Injection Structure

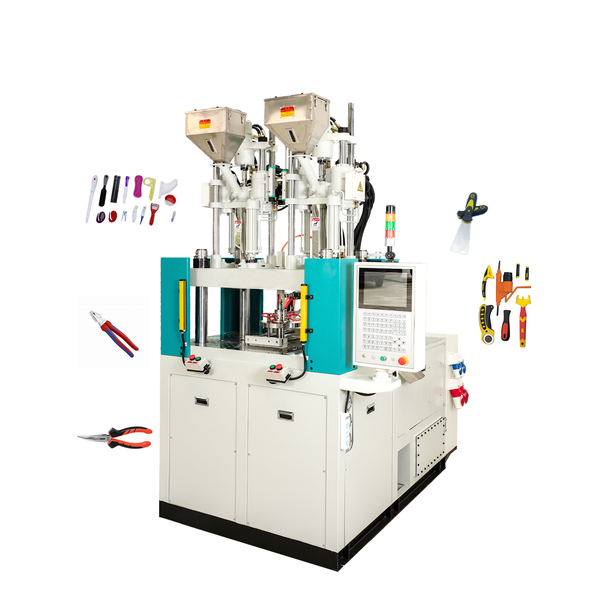

– Vertical clamping design ideal for insert molding
– Easy manual or automated insert placement
– Reduced material waste and improved molding accuracy
• Stable Hydraulic Injection System
– Hydraulic drive ensures consistent pressure and injection stability
– Suitable for continuous and repeatable production cycles
• Precise Injection Performance
– Injection weight up to 113 g
– Theoretical shot volume 122 cm³
– Injection rate 70 g/s for smooth cavity filling
• Flexible Mold Compatibility
– Mold height range: 200–550 mm
– Mold opening stroke: 250 mm
– Suitable for various small and medium molds
• Reliable Screw & Plasticizing System
– Screw diameter: 36 mm
– Plasticizing capacity: 70 g/s
– Ensures uniform melting and material flow
• Compact & Energy-Efficient Design
– Installed power: 7.5 kW
– Machine weight: 2,200 kg
– Space-saving vertical layout for workshop efficiency
• Typical Applications
– Screwdriver handles
– Electronic thermometer housings
– Insert molded plastic parts
– Small electronic and hardware components
Products Specification:
| Category | Specification |
| Machine Type | Hydraulic |
| Structure | Vertical |
| Application | Insert molding, plastic component production |
| Injection Weight | 113 g |
| Theoretical Shot Volume | 122 cm³ |
| Plasticizing Capacity | 70 g/s |
| Injection Rate | 70 g/s |
| Screw Diameter | 36 mm |
| Mold Height Range | 200–550 mm |
| Mold Opening Stroke | 250 mm |
| Ejector Number | 1 |
| Ejector Stroke | 45 mm |
| Ejector Force | 17 kN |
| Installed Power | 7.5 kW |
| Machine Weight | 2,200 kg |
| Control Mode | Automatic control |
| Structure Feature | Vertical clamping for insert molding |
| Inspection | Machinery test report and video inspection available |
