Machine Features:
• Heavy-Duty 800 Ton Vertical Clamping System
– Clamping force up to 8000 kN
– Four-column vertical structure ensures high rigidity and durability
– Excellent platen parallelism for stable molding
• Large Injection Capacity for Rubber Products
– Injection volume up to 10,000 cc
– Suitable for large and thick rubber components
– Supports complex mold structures
• Flexible Mold & Platen Configuration
– Heating platen size: 1000 × 1000 mm
– Space between platens: 1400 mm
– Maximum clamping stroke: 1000 mm
– Minimum mold thickness: 410 mm
• Multi-Stage Injection Control
– Multi-phase injection pressure and speed control
– Adapts to different rubber compounds and mold designs
– Improves product consistency and surface quality
• Precision Temperature Control System
– Platen temperature tolerance within ±2 °C
– PID temperature control for stable heating
– Insulation plates reduce heat loss and improve efficiency
• Advanced PLC Control & Monitoring
– PLC monitors the entire production process
– Storage of up to 300 production recipes
– Convenient data transfer via USB interface
• Safe & Ergonomic Machine Design
– Rational layout of oil tank, electrical cabinet and control panel
– Improved operating space for mold movement
– Designed with operator safety and ergonomics in mind
• Expandable Demolding & Feeding Options
– Multiple demolding device configurations available
– Optional rubber material feeding system for automated production
Products Specification:
| Category | Specification |
| Machine Type | Vertical Rubber Injection Molding Machine |
| Clamping Force | 8000 kN (800 Ton) |
| Structure | Four-column vertical structure |
| Injection Volume | 10,000 cc |
| Heating Platen Size | 1000 × 1000 mm |
| Space Between Platens | 1400 mm |
| Maximum Clamping Stroke | 1000 mm |
| Minimum Mold Thickness | 410 mm |
| Power Supply | 220 V |
| Installed Power | 60 kW |
| Control System | PLC control |
| Temperature Control | PID control, ±2 °C tolerance |
| Injection Control | Multi-stage pressure and speed |
| Machine Dimensions (L×W×H) | 4.3 × 2.8 × 5.0 m |
| Machine Weight | 50,000 kg |
| Applicable Industry | Industrial rubber product manufacturing |
| Inspection | Machinery test report & video inspection available |

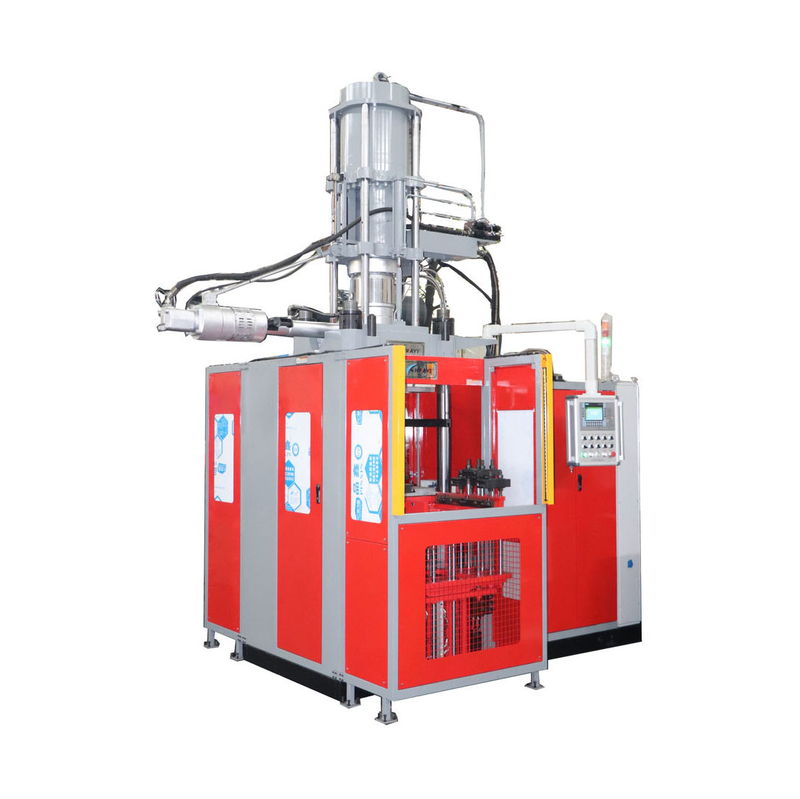

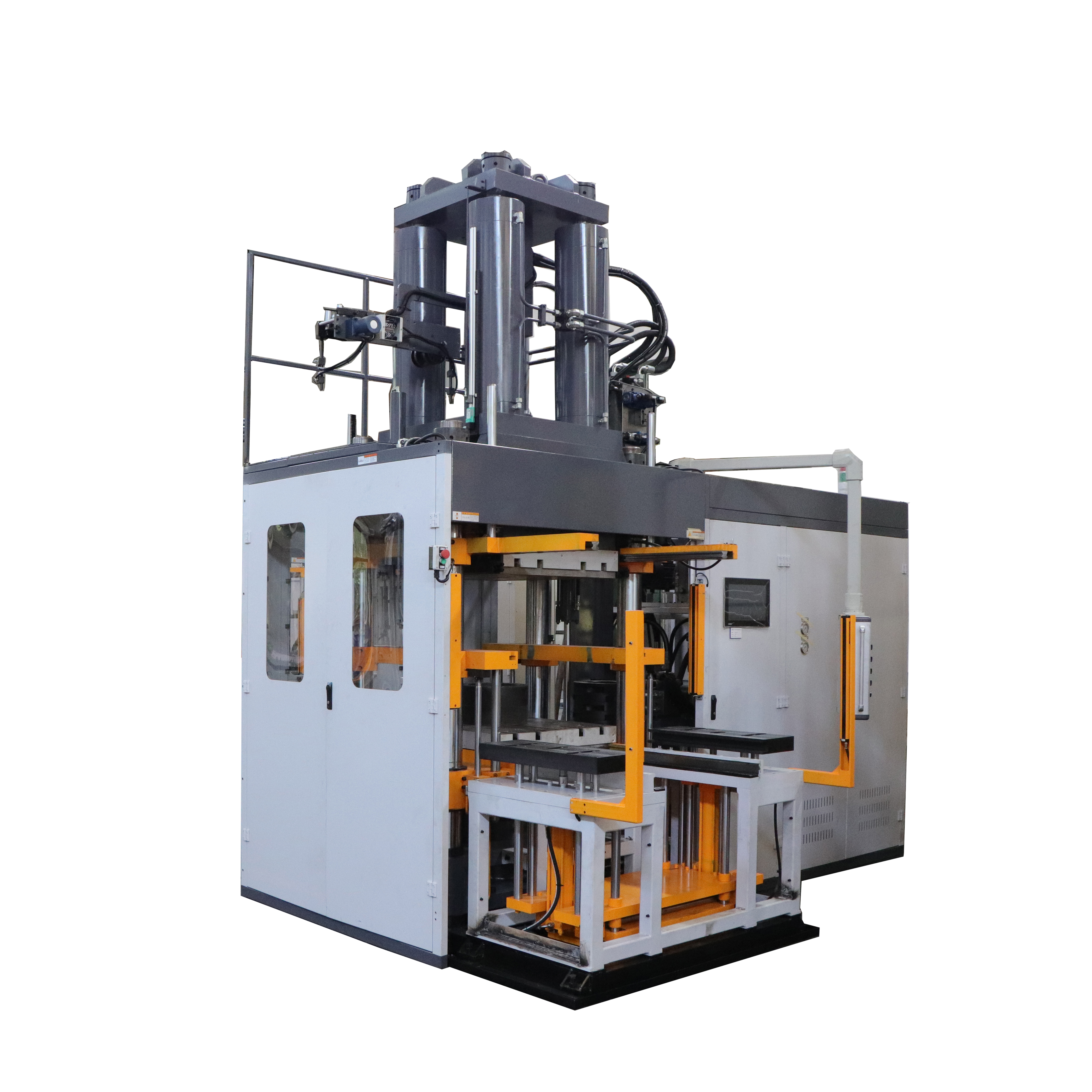

Products Pictures:
