Machine Features:
High productivity PET preform production:
Large injection weight and fast injection rate support multi-cavity, high-output bottle preform manufacturing.
Servo energy-saving drive system:
Servo motor provides up to 50% stronger driving force and 30% faster response, reducing electricity consumption by around 30%.
Dedicated PET plasticizing screw:
Optimized screw design ensures uniform melting, stable viscosity, and improved preform quality.
Wide mold compatibility:
Large tie-bar spacing and adjustable mold height support various PET preform mold sizes.
Stable hydraulic structure:
Hydraulic system ensures reliable long-term operation with low maintenance requirements.
Multi-ejector configuration:
Equipped with multiple ejectors for smooth demolding and high-cycle automated production.
Multi-language operation interface:
User-friendly control system suitable for global operators and overseas factories.
Products Specification:
| Technical Parameter | Unit | HD290PET | HD330PET | HD390PET |
| Injection Volume | cm³ | 1325 | 2268 | 3177 |
| Opening Stroke | mm | 610 | 660 | 710 |
| Space Between Tie-Bars | mm | 630*630 | 680*680 | 730*730 |
| Mould Thickness（Min-max) | mm | 230-630 | 250-680 | 280-730 |
| Hydraulic Ejection | KN | 113 | 181 | 181 |
| Ejector Stroke | mm | 165 | 170 | 200 |

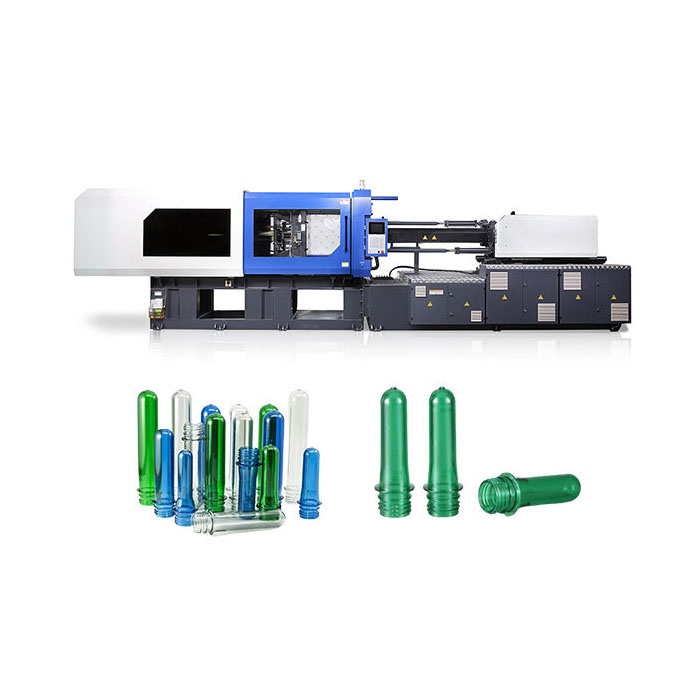

Products Pictures:
