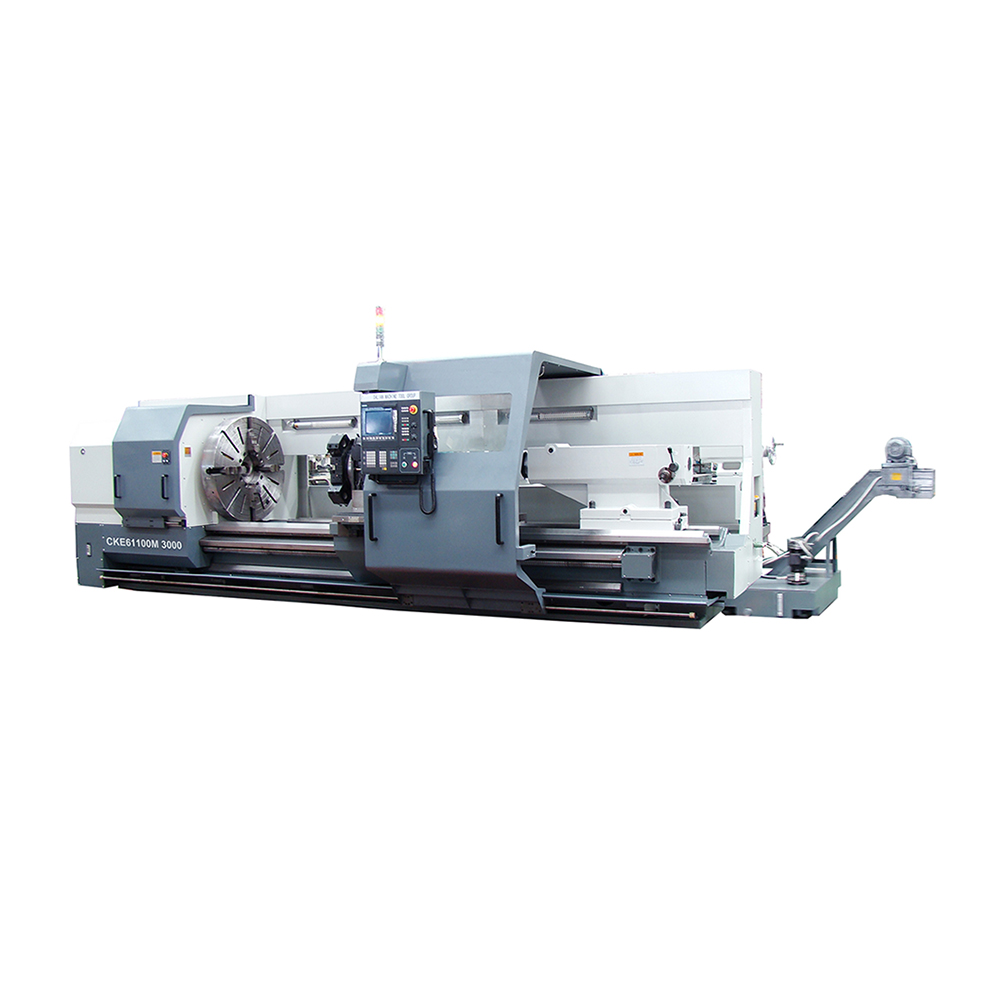

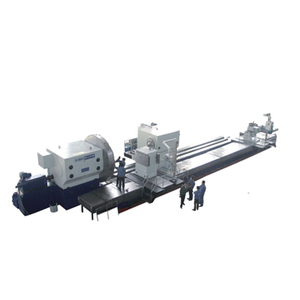

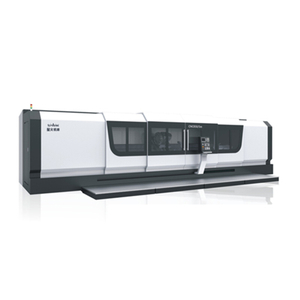

CKE-M Series CNC Horizontal Lathe Machine

This machine tool is a CNC horizontal lathe with two-axis control: vertical (Z) and horizontal (X). It is capable of automatically performing cutting processes such as internal and external cylindrical surfaces, conical surfaces, circular arc surfaces, end faces, grooving, and chamfering for large shaft-like and disc-like parts. It can also perform various turning processes, including metric straight threads, end face threads, imperial straight threads, and tapered threads. The CKA61100M and CKA61125M models utilize CNC systems from well-known domestic and international companies such as FANUC and Siemens, enabling multiple repetitive machining cycles for workpieces. It is suitable for the production of a variety of products in large quantities and excels particularly in the machining of complex and high-precision parts.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Specification

Specification	Unit	CKA61100M	CKA61125M
Max.swing diameter over bed	mm	φ1000	φ1250
Max.swing diameter over cross slide	mm	Φ630	中 1 2 5 0
Max.workpiece length	mm	1500、2000、3000、4000、5000、6000
Max.cutting length	mm	1400、1900、2900、3900、4900、5900
Max.turning diameter	mm	φ1000	φ1250
Spindle center height	mm	500	625
Bed guideway width	mm	750	755
Spindle motor power (Servo motor)	kw	22/26(FANUC)
Spindle bore	mm	φ130
Chuck size	mm	φ1000	φ1250
Taper of spindle bore		Front end φ140mm 1:20
Type of spindle nose		A2-15
Spindle speed ranges	r/min	2~500 (L2~87、M 5~201、H11~500)
Spindle speed ranges(with chuck)	r/min	2~315	2~280
Tailstock quill diameter	mm	φ200
Tailstock quill travel	mm	300
Tailstock quill taper		MT 6
Max.travel of X-axis	mm	520	640
Max.travel of Z-axis	mm	1500、2000、3000、4000、5000、6000
Rapid traverse of X/Z axis	m/min	6/8
Tool shank size (Vertical 4-positon)	mm	40X40
X/Z axis positioning accuracy	mm	021/0.026(1500、2000)、0.03(3000、4000、5000、600
X/Z axis repeatability accuracy	mm	0.008/0.014(1500、2000、3000、4000、5000、6000)
Machine dimensions(LXWXH)	mm	6320X2300X2000(1500) 6820X2300X2000(2000) 7820X2300X2000(3000) 8820X2300X2000(4000) 9820X2300X2000(5000) 10820X2300X2000(6000)	6320X2520 X2250(1500) 6820X2520X2250(2000) 7820X2520X2250(3000) 8820X2520X2250(4000) 9820X2520X2250(5000) 10820X2520X2250(6000)
Machine weight	kg	13.5/14/15/16/17/18	14.5/15/16/17/18/19

Products Configuration

Standard Configurations:

Servo spindle motor

FANUC Oi-TF(1)Plus system

4-Jaw manual chuck

Vertical 4-position turret

Manual tailstock(S4000mm).Electric tailstock(>4000)

Chip conveyor

Heat exchanger

Optional Configurations:

Siemens system

Steady rest

Follow rest

Air conditioner

Products Features

1: The machine tool adopts a traditional horizontal lathe layout. The overall design features good sealing and complies with safety standards. Major foundation components such as the bed, headstock, saddle, and tailstock are all manufactured using resin sand casting, contributing to the machine's superior stability.

2: For parts related to precision, such as the bed, saddle, lead screws, and supports, the structure and machining accuracy have been carefully optimized. Additional assembly control measures have been incorporated to enhance the machining precision of the machine tool, ensuring consistent, stable, and reliable processing of workpieces.

3: The machine tool's CNC system is sourced from internationally renowned manufacturers, ensuring high reliability of the machine.

4: The machine tool employs a design that integrates mechanical and electrical components, resulting in a compact and rational overall layout. It offers user-friendly operation and ease of maintenance.

5: The machine tool features a modular design, allowing for different configurations based on user requirements (such as system configurations). This design flexibility caters to various needs for machining different types of parts.

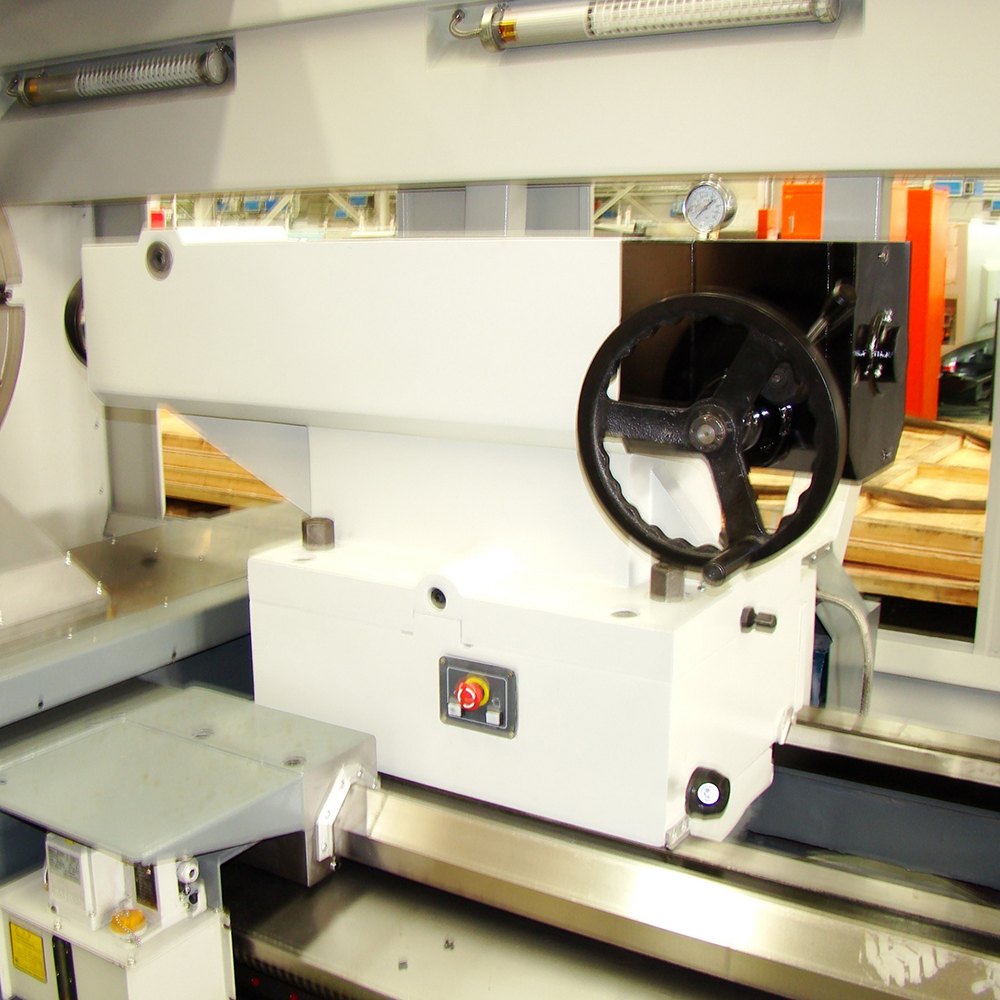

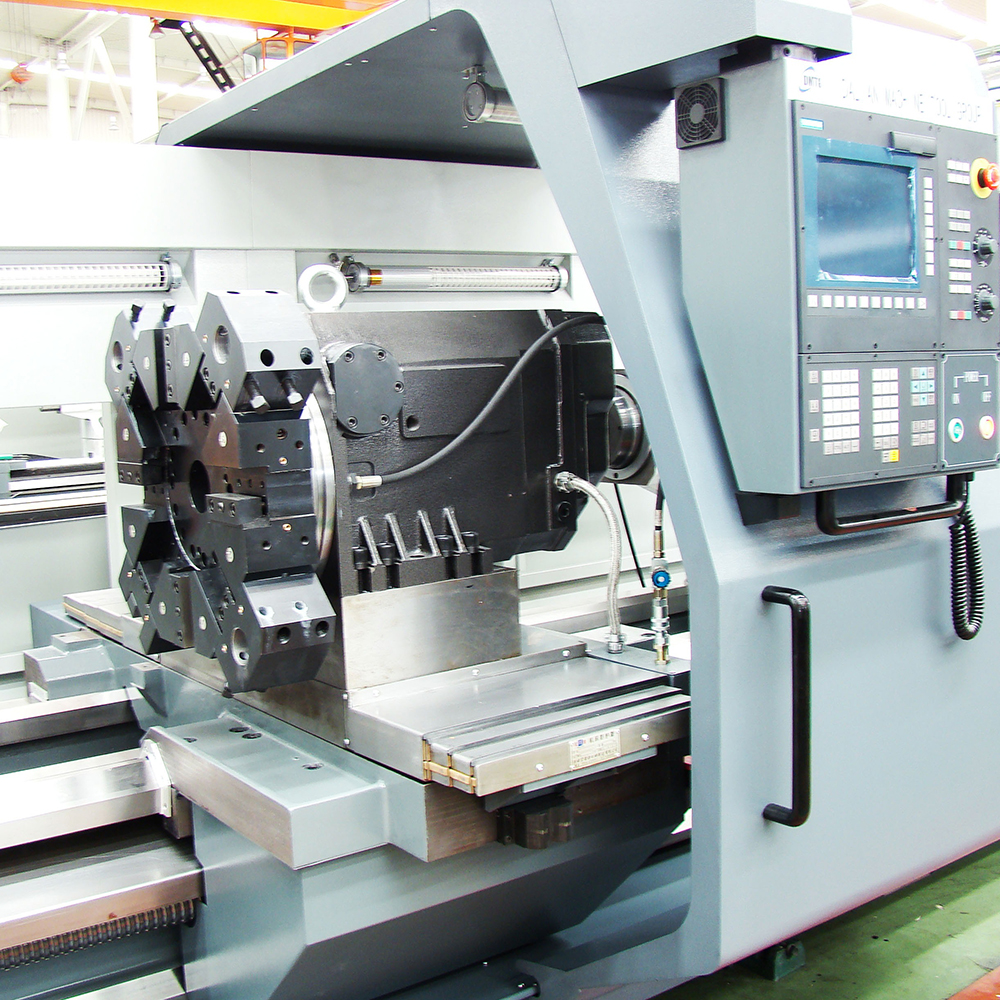

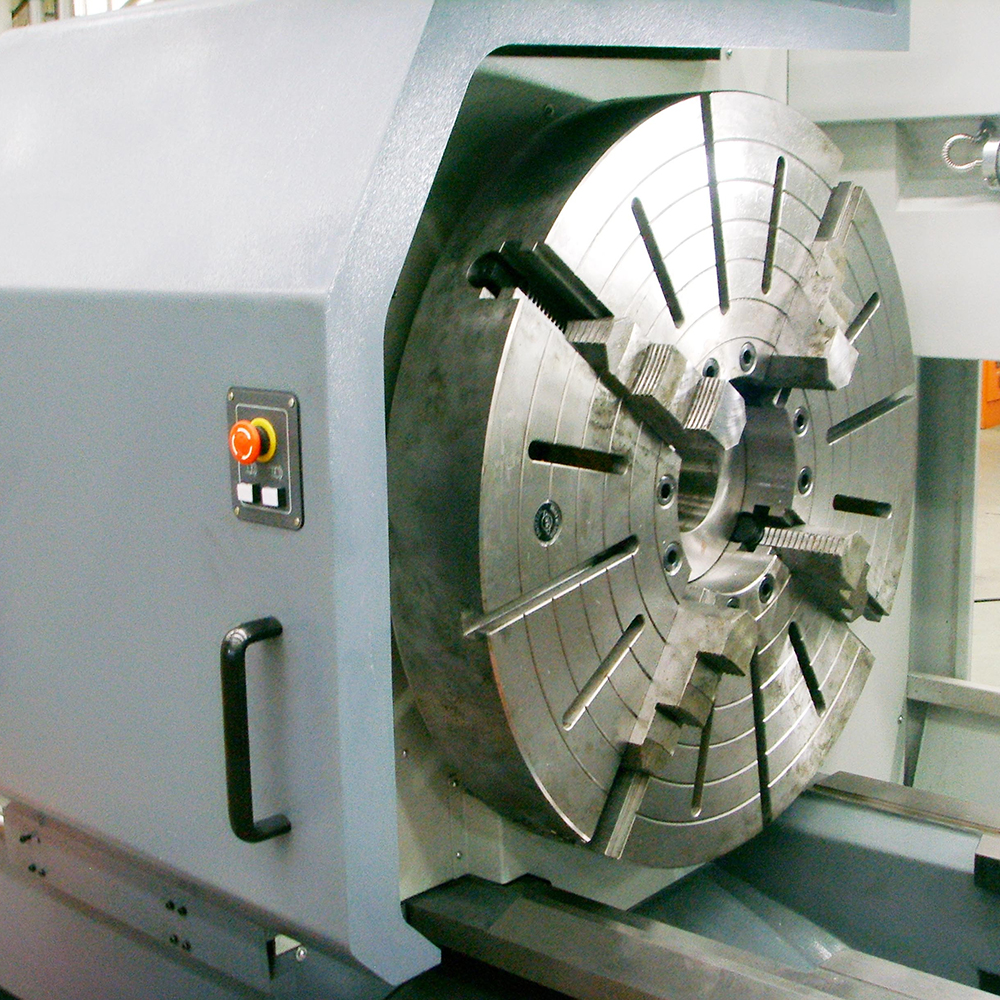

Products Pictures
