QKA1246 Oil Country CNC Pipe Threading Screw-cutting Lathe Machine
QKA1246 Oil Country CNC Pipe Threading Screw-cutting Lathe Machine QKA1246 Oil Country CNC Pipe Threading Screw-cutting Lathe Machine

loading

QKA1246 Oil Country CNC Pipe Threading Screw-cutting Lathe Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
QKA-series CNC pipe thread lathes were developed mainly for the turning of oil-field pipe threads. But now they are also used to the turning of pipe threads of various kinds,e,g. cylindrical and conical threads, threads connected continuously one another, and end-face threads as well, and they can also be used as universal CNC lathes for the turning of circumgyration bodies of various curving generatrices. These machines are suitable for varified work-pieces machining in medium and small batches, and are for good flexibility, high efficiency, finishing up with good conformity, and are easy to program, simple to operate. So they are ideal medium-type mechanical machining equipment.
SKU:
Availability:
Quantity:

Products Specification

ITEM UNIT QK1212 QK1219 QKP1212 QKP1223 QKA1226/1235 QKA1246
External Dia.of pipes mm 120 190 190 230 260/340 460
Swing over bed mm 800 800 1000/1100 1250
Swing over carriage mm 450 480 630/730 900
Max.length of workpiece mm 750/1000/1500/2000/3000 1000/1500/2000/3000/4000/5000/6000 1500/3000/5000 2800
Max.length of turning mm 550 800 1350 1800 2800 800/1300/1800/2800/3800/4800/5800 1300/2800/4800 2600
Span of guideway mm 550 600 755 1100
SPINDLE






Spindle nose
C15 A2-15 A2-20 A2-28
Taper hole of spindle
metricl40 metric213 metric213 1-20 1:20 metric140
Spindle bore mm 130 200 200 240 275/355 465
Top taper of spindle
6#
Range of spindle speed r/min 20~1000 20~600 20~600 400/320 2~200
Chuck mm 3-JAW400 3-JAW 500 3/4 JAW630 630/800 compound1000
FEED






Min feed of X/Z-axis mm 0.001/0.001
Rapid of X/Z-axis m/min 3/6 4/5
Max.travel of X mm 390 420 570/540 850
TURRET






Turret type
V4 □240 V4 □300 V4 □380
Section of tool shank mm 40X40 40x40 50x50
Indexing repeatability mm 0.008
Max.cutting force N 19600 29400 39200
TAILSTOCK






Dia.oftailstock mm 100 160 260
Travel of tailstovk mm 250 300 300
Taper hole of tailstock
Morse5 Morse6 Morse6 Metric80
OTHERS






Main power kw 22 30 15 185 28
Accuracy
IT6~IT7
Roughness
RA1.6
Length mm 2912 3227 3677 4177 5177 3605/4105/4645/5600/6430/7600/8485 4800/6300/8300 6300
Width mm 1800 2219/2330 2520 2720
Hight mm 1850 1830/2100 2120 2320
Weight t 3.73.94.24.75.2 4.8/5.3/5.6/6.0/6.8/7.6/8.3 2009/11/13 18
CNC system
0i-mate-TD/0i-TD




Height mm 2280/2580/2655



Optional Specifications

External dia.of pipes :460MM

Swing over bed :1250MM

Max.turning length :2800MM

Pan of guideway :1100MM

Swing over carriage :900MM

Spindle bore :465MM

Main motor power :28KW

Max weight of workpiece :16000KGS


Products Pictures

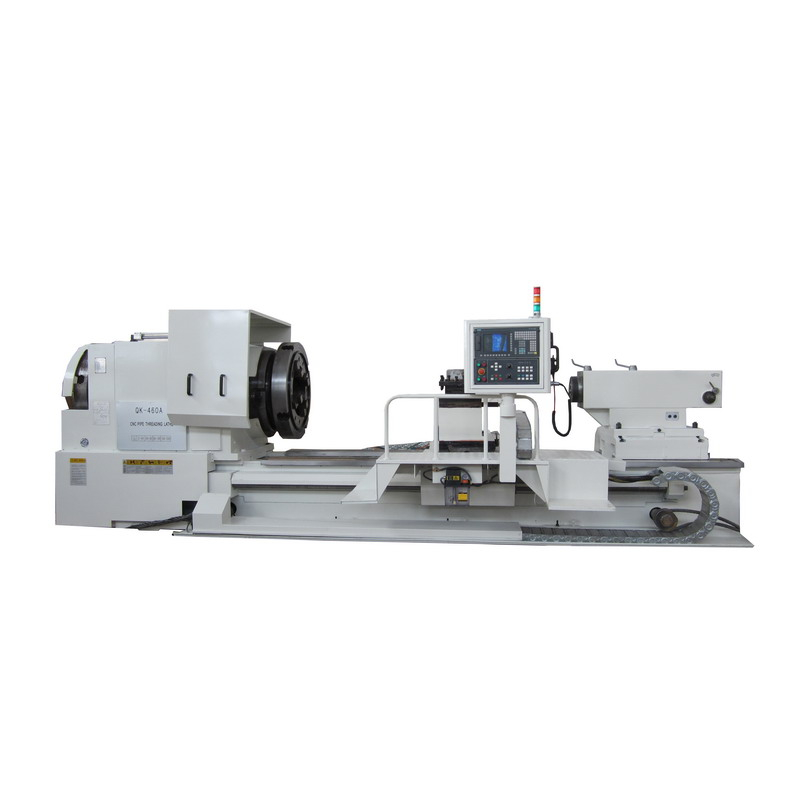

qka1246_800
