Product Specifications
| Item | Unit | Model and specification | |||||||
| Gearbox structure | Independent spindle structure | Independent single main transmission + Dual triangle guide structure | |||||||
| CY-K6150B | CY-K6150L | CY-K6180H | CY-K360 | CY-K510n | CY-K660T | ||||
| Processing range | Rotation diameter on bed | mm | 500 | 500 | 800 | 400 | 510 | 660 | |
| Max.rotation diameter on slide | mm | 285 | 290 | 480 | 200 | 290 | 365 | ||
| Maximum turning diameter | Disc type | mm | 500 | 500 | 800 | 360 | 500 | 600 | |
| Axle type | mm | 270 | 270 | 470 | 190 | 270 | 350 | ||
| Maximum workpiece length (center distance) | mm | 750-3000 | 750-2000 | 1500-3000 | 750 | 750-2000 | 750-1500 | ||
| Spindle | Spindle end type | A2-8 | D8 | C11 | A2-6 | A2-8 | D8 | ||
| Spindle through hole diameter | mm | middle82 | middle105 | middle104 | middle62 | middle82 | middle82 | ||
| Spindle speed | Rpm | 44-1600 | 40-1200 | 40-950 | 35-3000 | 35-2500 | 35-2000 | ||
| Spindle motor power | Kw | 7.5 | 11 | 11 | 5.5 | 11 | 11 | ||
| Others | X/Z guide span | mm | 210/390 | 210/390 | 330/600 | 170/300 | 210/390 | 240/390 | |
| Tool section | mm | 25×25 | 25×25 | 32×32 | 20×20 | 25×25 | 25×25 | ||
| Same series machine model | CY-K6150D CY-K6163Q | CY-K6166L | CY-K6163B CY-K6180B CY-K61100 | — | CY-K410n CY-K630n(B) CY-K800n(B) | CY-K360T CY-K520T | |||
Products Features
1: This equipment features high processing capacity, stable precision, and high efficiency. The machine control system is equipped with strict protective measures to ensure the safety of both personnel and equipment.
2: It is suitable for industries like automotive, shipbuilding, bearings, and military, where parts require large cutting volumes, high efficiency, and mass production.

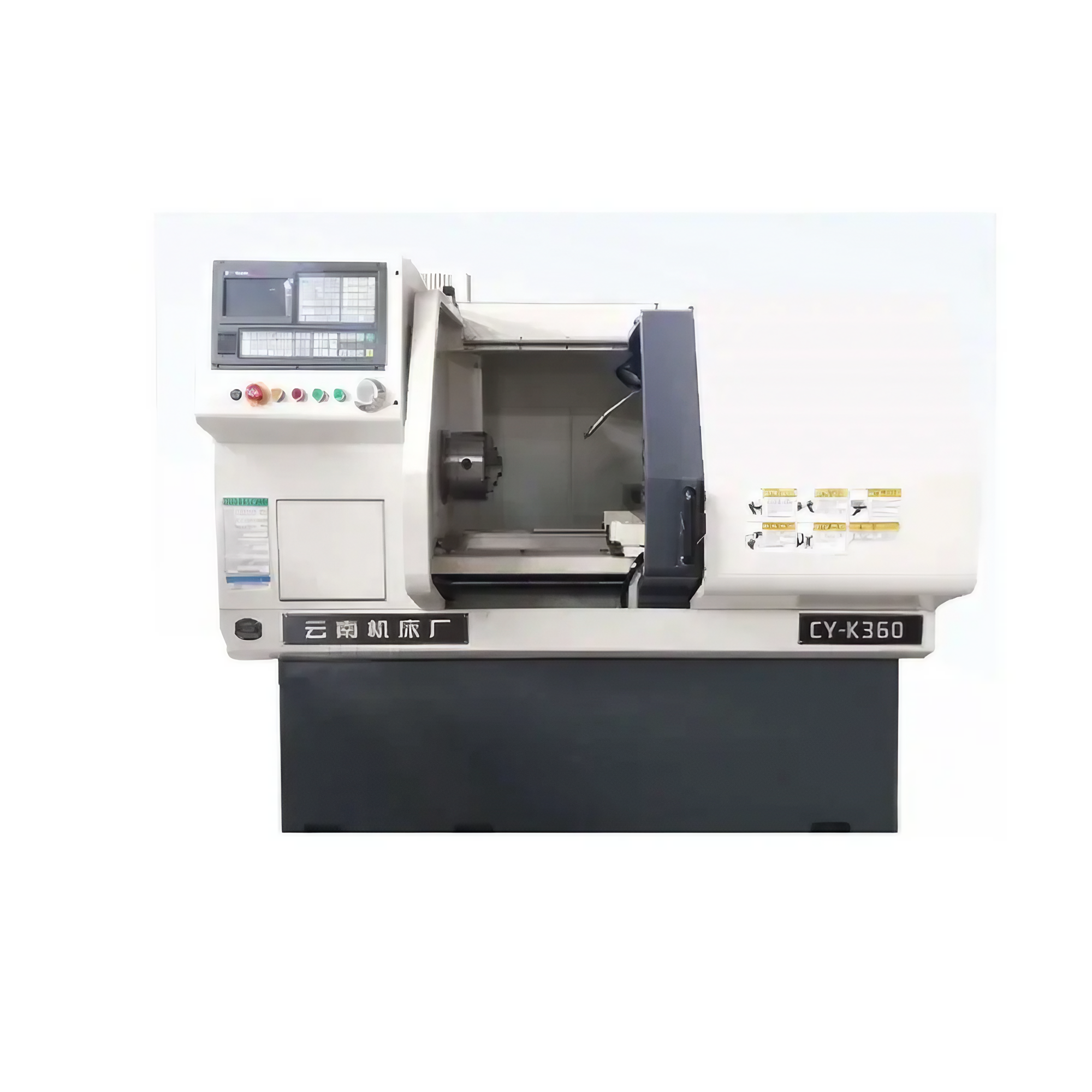

Products Pictures
