Product Specifications
| Main specifications | unit | C61160/180/200/220/250 | CC61160/180/200/220/250 | CC61315/350/400/500/630 |
| Swing over bed | mm | 1600/1800/2000/2200/2500 | 1600/1800/2000/2200/2500 | 3150/3500/4000/5000/6300 |
| Swing over carriage | mm | 1200/1400/1600/1800/2200 | 1200/1400/1600/1800/2200 | 2500/2800/3000/4000/5000 |
| Max.turning length | m | 4～20 | 5～20 | 5～20 |
| Maxload between centers | ton | 25、32、40 | 40、63、80 | 100、120、150、200 |
| Bed width | mm | 1600(Three guide rails) | 2050(Four guide rails) | Split bed |
| Spindle speed | rpm | 0.8～160 | 0.63～125 | 0.5~100;0.4~80;0.2~40 |
| Spindle motor | kW | DC75 | DC90/110/125 | DC143/160/185 |
| Close steady rest | mm | Φ400~Φ750(C61160) | Φ400~φ800(CC61160) | Φ500~Φ1200(CC61315) |
| Open steady rest | mm | φ800~Φ1500(C61160) | Φ800~φ1400(CC61160) | φ1200~Φ2250(CC61315) |
| Machine weight of 5 meters | Kg | 46000 | 63000 | |
| Add weight per meter | Kg | 2500 | 3000 | |
| Machine outline size of 5 meters | mm | 10672×2479×2280 (C61160) | 14100×4348×2445 (Cc61160) | 12750×4740×3550 (Cc61315) |
| Shape of tool post | Platen tool holder or frame tool holder | Frame tool holder | Frame tool holder | |
| Digital display | optional | |||
| Grinding head device | optional | |||
| Miling head device | optional | |||
| Boring device | optional | |||
Machine Features
1. General Use and Materials
The heavy-duty horizontal lathe is primarily used in the metallurgy industry. It utilizes high-speed steel or carbide tools to rough and finish machine workpieces made from plain steel, forged steel, cast iron, high-speed steel, and high-chromium steel. This machine is capable of performing high precision and high smoothness automatic turning operations on external cylinders, end faces, conical surfaces, grooves, and cuts.
2. Design and Structure
For machines with a three-guideway bed, motion is transmitted via screw and polished rod mechanisms. Machines with four-guideway beds and separate bed structures feature a separate drive structure for the main transmission and feed. The main spindle of the machine adopts a dual-support structure, providing excellent rotational rigidity and high torque output. The bed is designed with a bottom chip disposal method for easy chip removal.
3. Lubrication and Movement
All parts of the machine are equipped with individual oil pumps for forced lubrication. Both the tailstock and the tool post are equipped with features for rapid movement and end safety. The upper body of the tailstock uses a built-in structure, and the entire tailstock moves using a motorized device.
4. Performance Characteristics
The machine's speed, feed rate, and power characteristics are all designed to effectively meet the needs of both roughing and finishing processes. The lathe offers strong rigidity, high efficiency, energy savings, safety and reliability, ease of operation, and an attractive design.

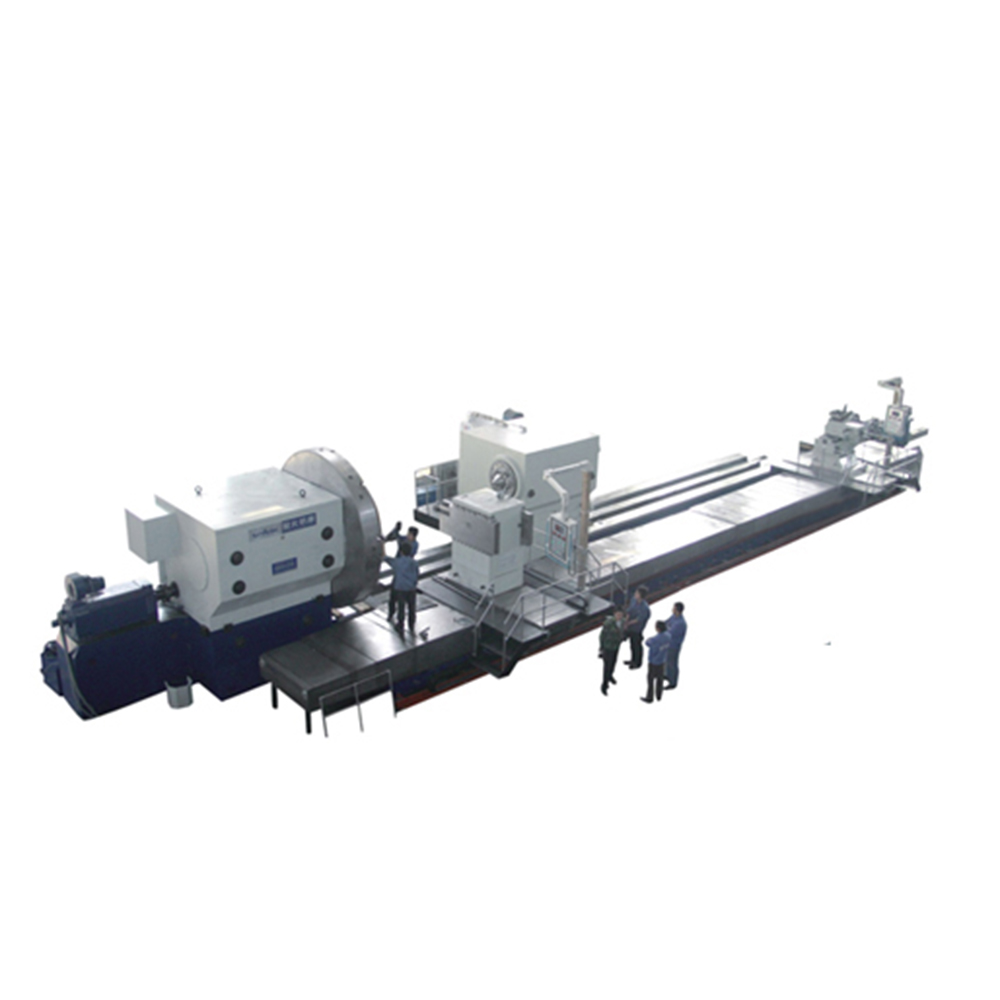

Products Pictures
Product Specifications
| Main specifications | unit | C61160/180/200/220/250 | CC61160/180/200/220/250 | CC61315/350/400/500/630 |
| Swing over bed | mm | 1600/1800/2000/2200/2500 | 1600/1800/2000/2200/2500 | 3150/3500/4000/5000/6300 |
| Swing over carriage | mm | 1200/1400/1600/1800/2200 | 1200/1400/1600/1800/2200 | 2500/2800/3000/4000/5000 |
| Max.turning length | m | 4～20 | 5～20 | 5～20 |
| Maxload between centers | ton | 25、32、40 | 40、63、80 | 100、120、150、200 |
| Bed width | mm | 1600(Three guide rails) | 2050(Four guide rails) | Split bed |
| Spindle speed | rpm | 0.8～160 | 0.63～125 | 0.5~100;0.4~80;0.2~40 |
| Spindle motor | kW | DC75 | DC90/110/125 | DC143/160/185 |
| Close steady rest | mm | Φ400~Φ750(C61160) | Φ400~φ800(CC61160) | Φ500~Φ1200(CC61315) |
| Open steady rest | mm | φ800~Φ1500(C61160) | Φ800~φ1400(CC61160) | φ1200~Φ2250(CC61315) |
| Machine weight of 5 meters | Kg | 46000 | 63000 | |
| Add weight per meter | Kg | 2500 | 3000 | |
| Machine outline size of 5 meters | mm | 10672×2479×2280 (C61160) | 14100×4348×2445 (Cc61160) | 12750×4740×3550 (Cc61315) |
| Shape of tool post | Platen tool holder or frame tool holder | Frame tool holder | Frame tool holder | |
| Digital display | optional | |||
| Grinding head device | optional | |||
| Miling head device | optional | |||
| Boring device | optional | |||
Machine Features
1. General Use and Materials
The heavy-duty horizontal lathe is primarily used in the metallurgy industry. It utilizes high-speed steel or carbide tools to rough and finish machine workpieces made from plain steel, forged steel, cast iron, high-speed steel, and high-chromium steel. This machine is capable of performing high precision and high smoothness automatic turning operations on external cylinders, end faces, conical surfaces, grooves, and cuts.
2. Design and Structure
For machines with a three-guideway bed, motion is transmitted via screw and polished rod mechanisms. Machines with four-guideway beds and separate bed structures feature a separate drive structure for the main transmission and feed. The main spindle of the machine adopts a dual-support structure, providing excellent rotational rigidity and high torque output. The bed is designed with a bottom chip disposal method for easy chip removal.
3. Lubrication and Movement
All parts of the machine are equipped with individual oil pumps for forced lubrication. Both the tailstock and the tool post are equipped with features for rapid movement and end safety. The upper body of the tailstock uses a built-in structure, and the entire tailstock moves using a motorized device.
4. Performance Characteristics
The machine's speed, feed rate, and power characteristics are all designed to effectively meet the needs of both roughing and finishing processes. The lathe offers strong rigidity, high efficiency, energy savings, safety and reliability, ease of operation, and an attractive design.
Products Pictures
