Product Specifications
| Item | Unit | CY-VTC5050 | CY-VTC8070 | CY-VTC10080 | ||
| The scope of work | Maximum turning diameter on the bed | mm | middle5 0 0 | middle 8 0 0 | middle 1 0 0 0 | |
| Maximum machining diameter | mm | middle 3 2 0 | middle 6 3 0 | middle 9 0 0 | ||
| Maximum turning height | mm | 500 | 700 | 800 | ||
| X-axis travel | mm | 270 | 450 | 600 | ||
| Z-axis travel | mm | 550 | 710 | 840 | ||
| Spindle | Spindle taper hole type | A₂8 | A₂11 | A₂15 | ||
| Standard chuck size | II | 12 | 21 | 24 | ||
| Main motor rated power | Kw | 18.5 | 22 | 22 | ||
| Spindle speed range | r/min | 50-1800 | 50-1050 | 30-800 | ||
| Tool holder | Tool rest type | Vertical/Horizontal | ||||
| Tool size | External boring tool | mm | 25×25 | 32×32 | 32×32 | |
| Maximum boring bar diameter | mm | middle40 | middle50/40/32 | middle50/40 | ||
Products Features
1: The control system of the machine tool includes strict protective measures to ensure the safety of both personnel and equipment.
2: It is primarily used in industries such as auto parts, motor casings, bearing rings, valve bodies, and pumps

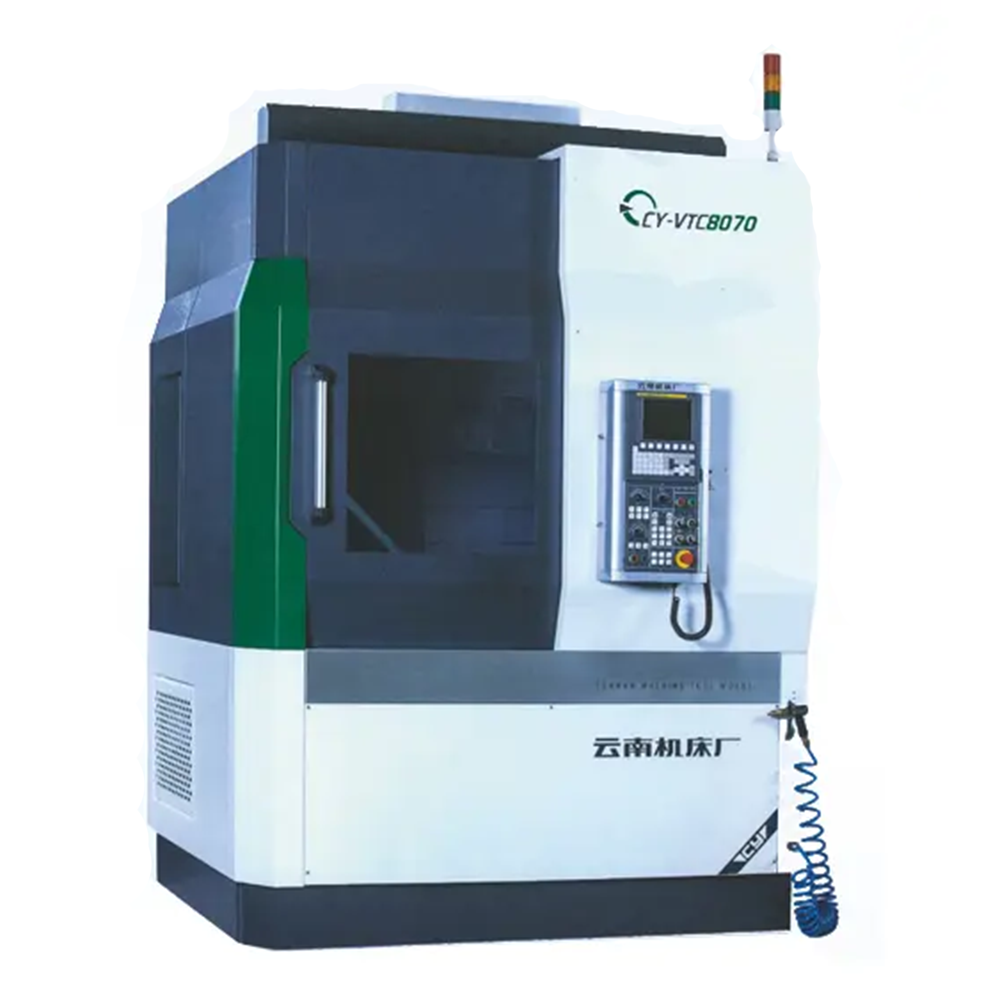

Products Pictures
