Product Specifications
| Main specifications | Unit | CK61160/180/200/220/250 | CCK61160/180/200/220/250 | CCK61315/350/400/500/630 |
| Swing over bed | mm | 1600/1800/2000/2200/2500 | 1600/1800/2000/2200/25003150/3500/4000/5000/6300 | |
| Swing over carriage | mm | 1200/1400/1600/1800/2200 | 1200/1400/1600/1800/2200 | 2500/2800/3000/4000/5000 |
| Max.turning length | m | 4～20 | 5～20 | 5～20 |
| Max.load between centers | ton | 25、32、40 | 40、63、80 | 100、120、150、200 |
| Bed width | mm | 1600(Three guide rails) | 2050(Four guide rails) | Split bed |
| Spindle speed | rpm | 0.8～160 | 0.63～125 | 0.5~100;0.4~80;0.2~40 |
| Spindle motor | kW | DC75 | DC90/110/125 | DC143/160/185 |
| Close steady rest | mm | φ400~φ750(CK61160) | φ400~φ800(CCK61160) | φ500~Φ1200(CCK61315) |
| Open steady rest | mm | φ800~Φ1500(CK61160) | φ800~Φ1400(CCK61160) | Φ1200~φ2250(CCK61315) |
| Machine weight of 5 meters | Kg | 46000 | 63000 | |
| Add weight per meter | Kg | 2500 | 3000 | |
| Machine outline size of 5 meters | mm | 10672×2479×2280 (Ck61160) | 14100×4348×2445 (CCK61160) | 12750×4740×3550 (CCK61315) |
| Shape of tool post | Platen tool holder or frame tool holder | Frame tool holder | Frame tool holder | |
| CNC system | Japanese FANUC Ol-TF, German SIEMENS 828D, Beijing KEDI and other CNC systems | |||
| Grating scale | optional | |||
| Measure unit | optional | |||
| Tool setting | optional | |||
| Grinding head device | optional | |||
| Milling head device | optional | |||
| Boring device | optional | |||
| Chip conveyor | optional | |||
Product Features
1. Spindle and Bed Design: The lathe's main spindle utilizes a dual-support structure, providing exceptional stiffness and significant torque output. The bed is designed for easy chip disposal, enhancing operational cleanliness and efficiency.
2. Lubrication and Mobility: Each component of the machine has its own oil pump for mandatory lubrication, ensuring smooth operation. The tailstock and tool post feature rapid movement capabilities and end-of-travel safety mechanisms, with the tailstock adopting a built-in design for seamless mobility.
3. Operational Capacity: The machine boasts a large turning diameter and an extended tool post overhang, equipped with an auxiliary support device beneath the tool post feed mechanism. This setup ensures stability and precision during heavy-duty machining.
4. Control and Automation: Speed, feed, and power characteristics are intelligently designed to meet extensive machining requirements. The CNC system offers options like Japan's FANUC OI-TF, Germany's SIEMENS 828D, and others, paired with a fully digital AC servo system and motors for precise two-axis (X and Z) linked control.
5. Structural Components: Structural features include separate upper and lower tailstocks, tool post beds, and workpiece beds, along with closed and open center frames that can move along the workpiece bed, enhancing flexibility. The machine also includes an automated chip conveyor and cable carrier installations between the tool post and tailstock for organized and safe operations.

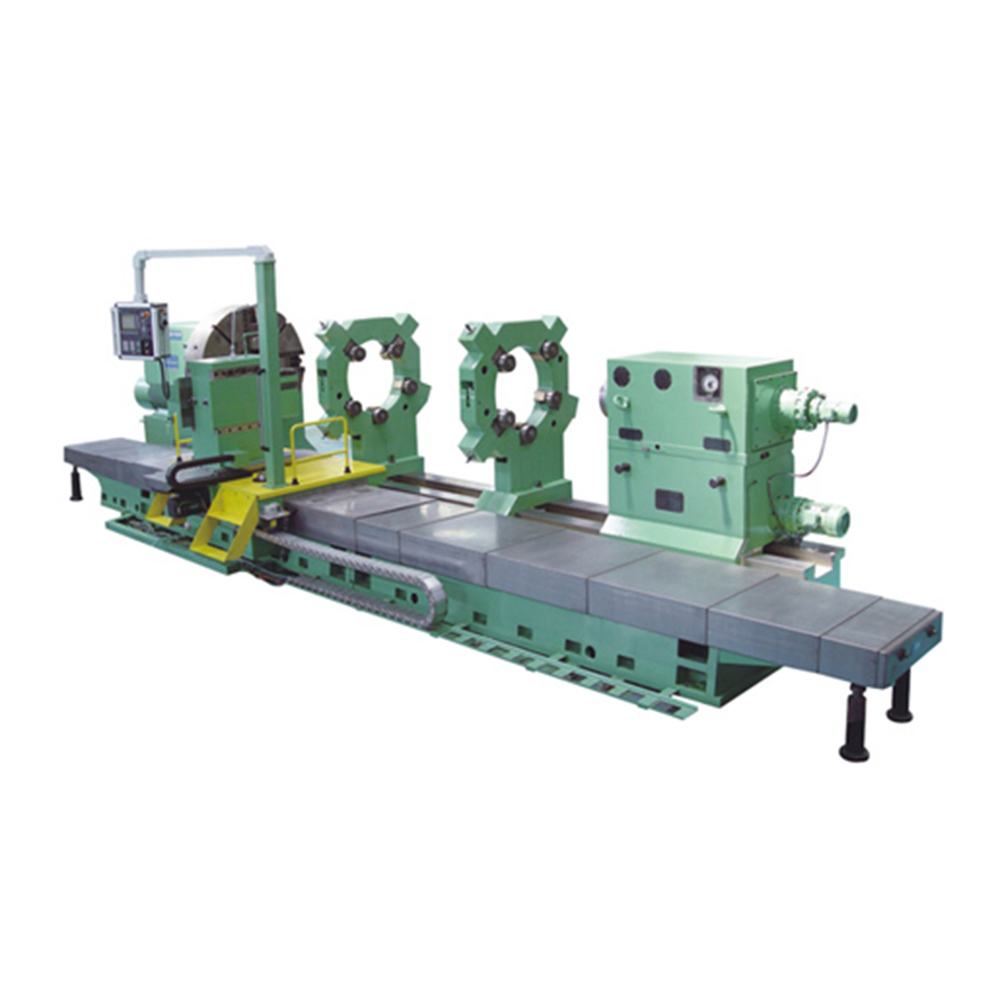

Products Pictures
Product Specifications
| Main specifications | Unit | CK61160/180/200/220/250 | CCK61160/180/200/220/250 | CCK61315/350/400/500/630 |
| Swing over bed | mm | 1600/1800/2000/2200/2500 | 1600/1800/2000/2200/25003150/3500/4000/5000/6300 | |
| Swing over carriage | mm | 1200/1400/1600/1800/2200 | 1200/1400/1600/1800/2200 | 2500/2800/3000/4000/5000 |
| Max.turning length | m | 4～20 | 5～20 | 5～20 |
| Max.load between centers | ton | 25、32、40 | 40、63、80 | 100、120、150、200 |
| Bed width | mm | 1600(Three guide rails) | 2050(Four guide rails) | Split bed |
| Spindle speed | rpm | 0.8～160 | 0.63～125 | 0.5~100;0.4~80;0.2~40 |
| Spindle motor | kW | DC75 | DC90/110/125 | DC143/160/185 |
| Close steady rest | mm | φ400~φ750(CK61160) | φ400~φ800(CCK61160) | φ500~Φ1200(CCK61315) |
| Open steady rest | mm | φ800~Φ1500(CK61160) | φ800~Φ1400(CCK61160) | Φ1200~φ2250(CCK61315) |
| Machine weight of 5 meters | Kg | 46000 | 63000 | |
| Add weight per meter | Kg | 2500 | 3000 | |
| Machine outline size of 5 meters | mm | 10672×2479×2280 (Ck61160) | 14100×4348×2445 (CCK61160) | 12750×4740×3550 (CCK61315) |
| Shape of tool post | Platen tool holder or frame tool holder | Frame tool holder | Frame tool holder | |
| CNC system | Japanese FANUC Ol-TF, German SIEMENS 828D, Beijing KEDI and other CNC systems | |||
| Grating scale | optional | |||
| Measure unit | optional | |||
| Tool setting | optional | |||
| Grinding head device | optional | |||
| Milling head device | optional | |||
| Boring device | optional | |||
| Chip conveyor | optional | |||
Product Features
1. Spindle and Bed Design: The lathe's main spindle utilizes a dual-support structure, providing exceptional stiffness and significant torque output. The bed is designed for easy chip disposal, enhancing operational cleanliness and efficiency.
2. Lubrication and Mobility: Each component of the machine has its own oil pump for mandatory lubrication, ensuring smooth operation. The tailstock and tool post feature rapid movement capabilities and end-of-travel safety mechanisms, with the tailstock adopting a built-in design for seamless mobility.
3. Operational Capacity: The machine boasts a large turning diameter and an extended tool post overhang, equipped with an auxiliary support device beneath the tool post feed mechanism. This setup ensures stability and precision during heavy-duty machining.
4. Control and Automation: Speed, feed, and power characteristics are intelligently designed to meet extensive machining requirements. The CNC system offers options like Japan's FANUC OI-TF, Germany's SIEMENS 828D, and others, paired with a fully digital AC servo system and motors for precise two-axis (X and Z) linked control.
5. Structural Components: Structural features include separate upper and lower tailstocks, tool post beds, and workpiece beds, along with closed and open center frames that can move along the workpiece bed, enhancing flexibility. The machine also includes an automated chip conveyor and cable carrier installations between the tool post and tailstock for organized and safe operations.
Products Pictures
