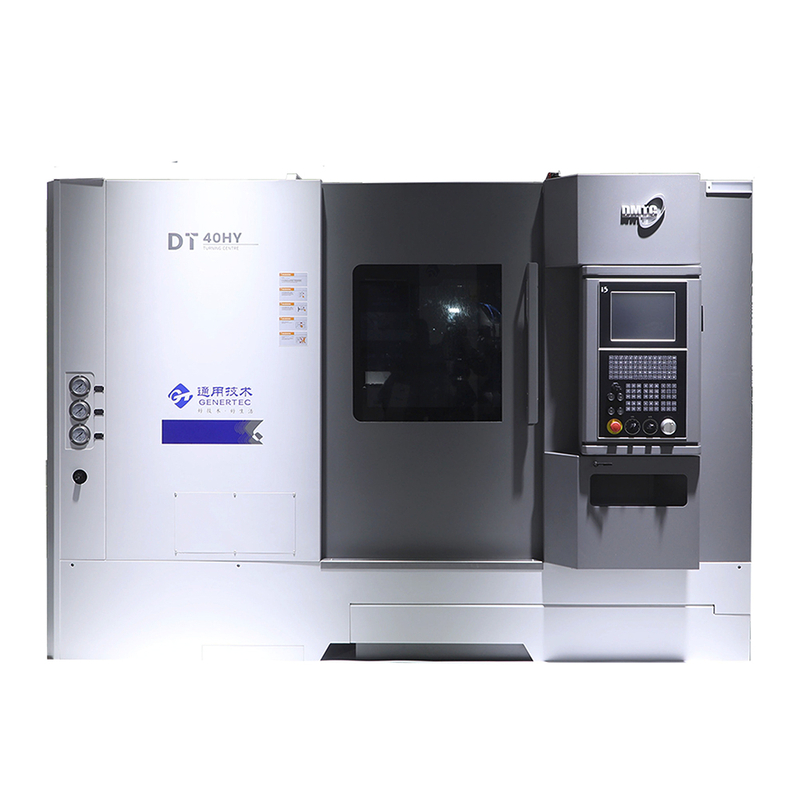

Products Specification
| Specification | Unit | DT-40HY | |
| Max.swing diameter over bed | mm | φ580 | |
| Max.turmning diameter (Shaft/Disc) | mm | φ350/φ380 | |
| Max.turning length | mm | 555/1055(ITALY) 445/945(CHINA) | |
| Guideway type | Linear guideway | ||
| Type of spindle nose | A2-6 | Opt:A2-8 | |
| Chuck size | inch | 8 | 10 |
| Spindle speed range | rpm | 4000 | 3500 |
| Spindle bore | mm | φ70 | φ87 |
| Max.bar capacity(Equipped with through-hole hydraulic chuck) | mm | φ51 | φ73 |
| Spindle motor power | kw | 11/15 | |
| Max.travel of X axis | mm | 215 | |
| Max.travel of Z (Y)axis | mm | 55/1055(±50) | |
| Rapid traverse of X/Z(Y)axis | m/min | 30/30 | |
| Turret type and tool numbers | live tooling 12-position turret | ||
| Tool shank size | mm | 25X25 | |
| Indexing time(adjacent/farthest) | S | 0.49/0.96(ITALY) | |
| Diameter of tailstock quill | mm | φ85 | |
| Tailstock quill stroke | mm | 140 | |
| X/Z(C、Y)axis positioning accuracy | mm | 0.005/0.007、0.008(C:31”Y:0.005) | |
| X/Z(C、Y)axis positioning accuracy | mm | 0.003/0.004、0.005(C:13”Y:0.005) | |
| CNC Controller | 0i-TF(5)Plus,FANUC 0i-TF (1)PIUS,SIEMENS SINUMER | ||
| Machine dimensions(L×W×H) Without chip convevor | mm | 2922×1900×2260(600) 3422×1900×2260(1000) | |
| Machine weight | kg | 5500/6500 | |
Products Configuration
Standard Configurations:
Hydraulic 12-position turret for DT series

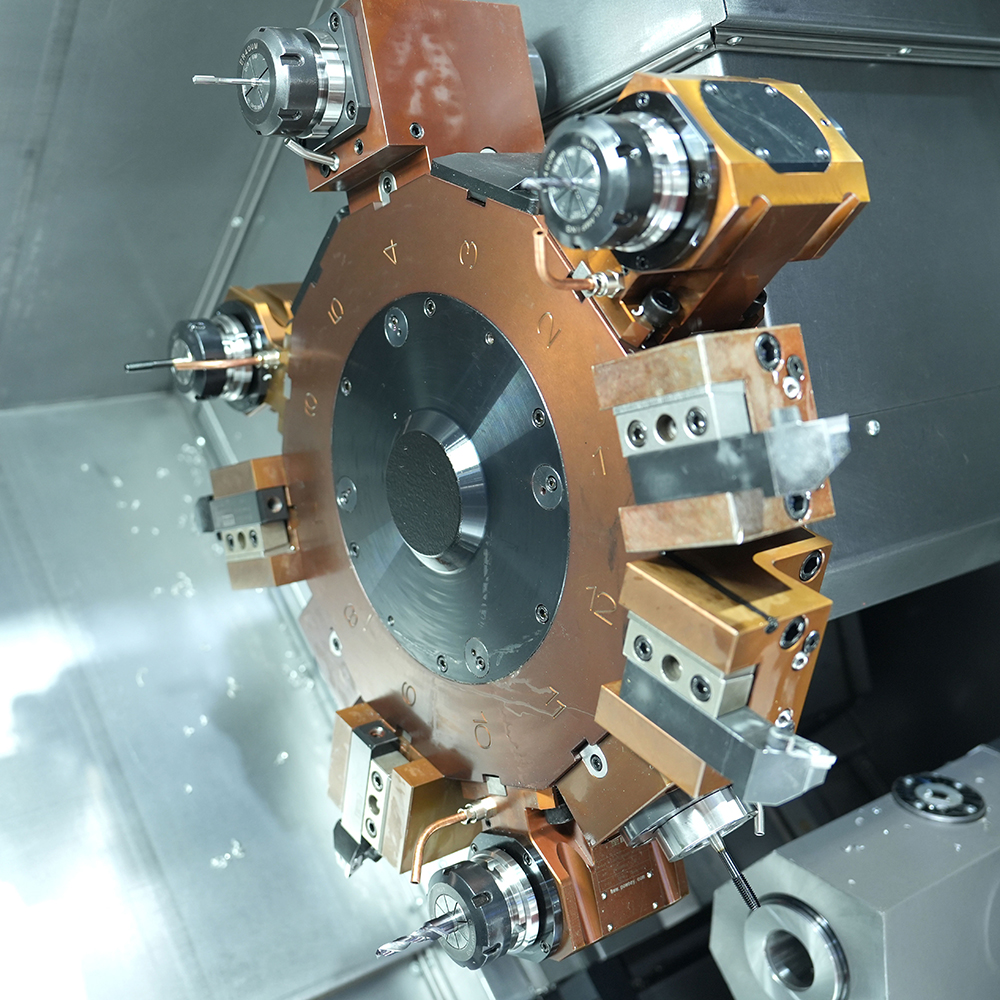

Domestic or ltaly 12-position live tooling turet for DT-H series
NSK spindle bearings and X/Z axis bearings
X|Z THK ball screws & X/Z THK inear guideways

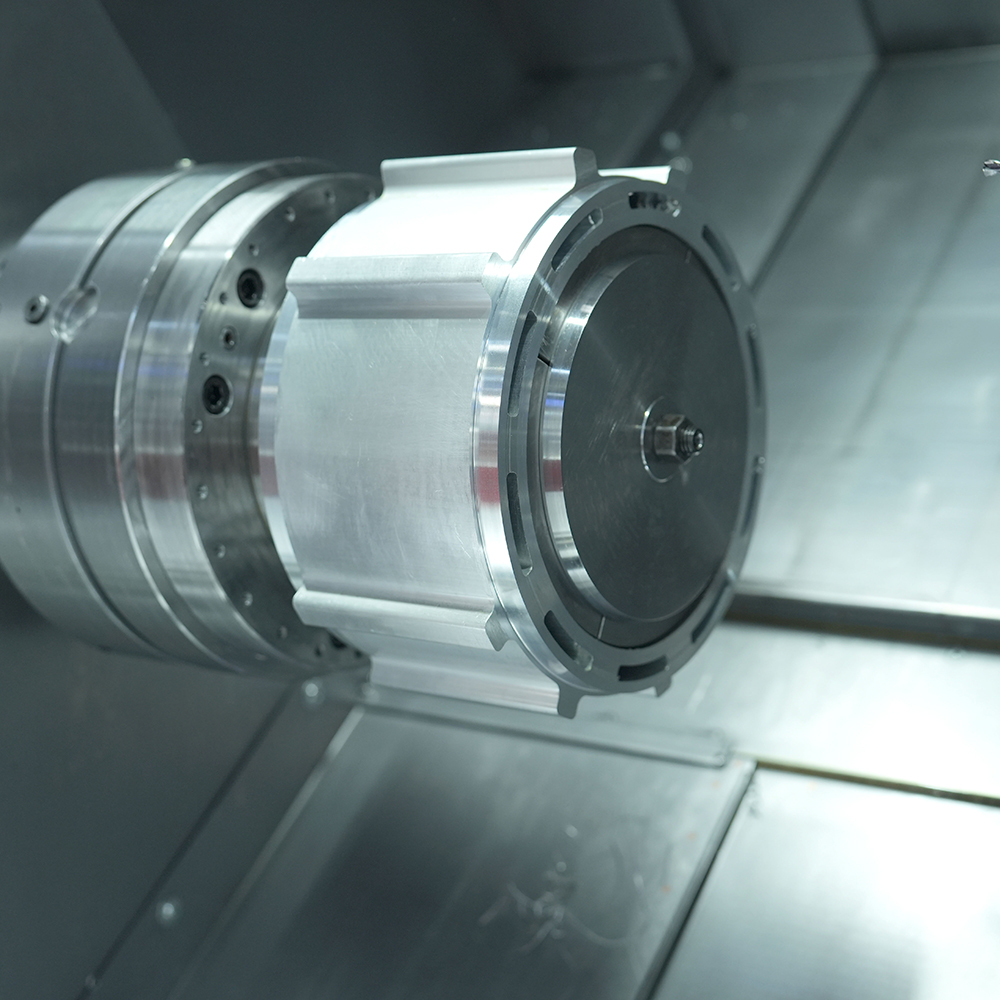

Non through-hole hydraulic chuck
Hydraulic tailstock
Heat exchanger
Chain-type chip conveyor
Automatic lubrication system
Standard toolkit
Optional Configurations:
Screw drive tailstock
Tool presetter
Air conditioner
Oil mist separator
Through-hole hydraulic chuck and cylindero
Bar feeder and parts catchero
Domestic hydraulic steady rest
Germany hydraulic steady rest
Automatic door

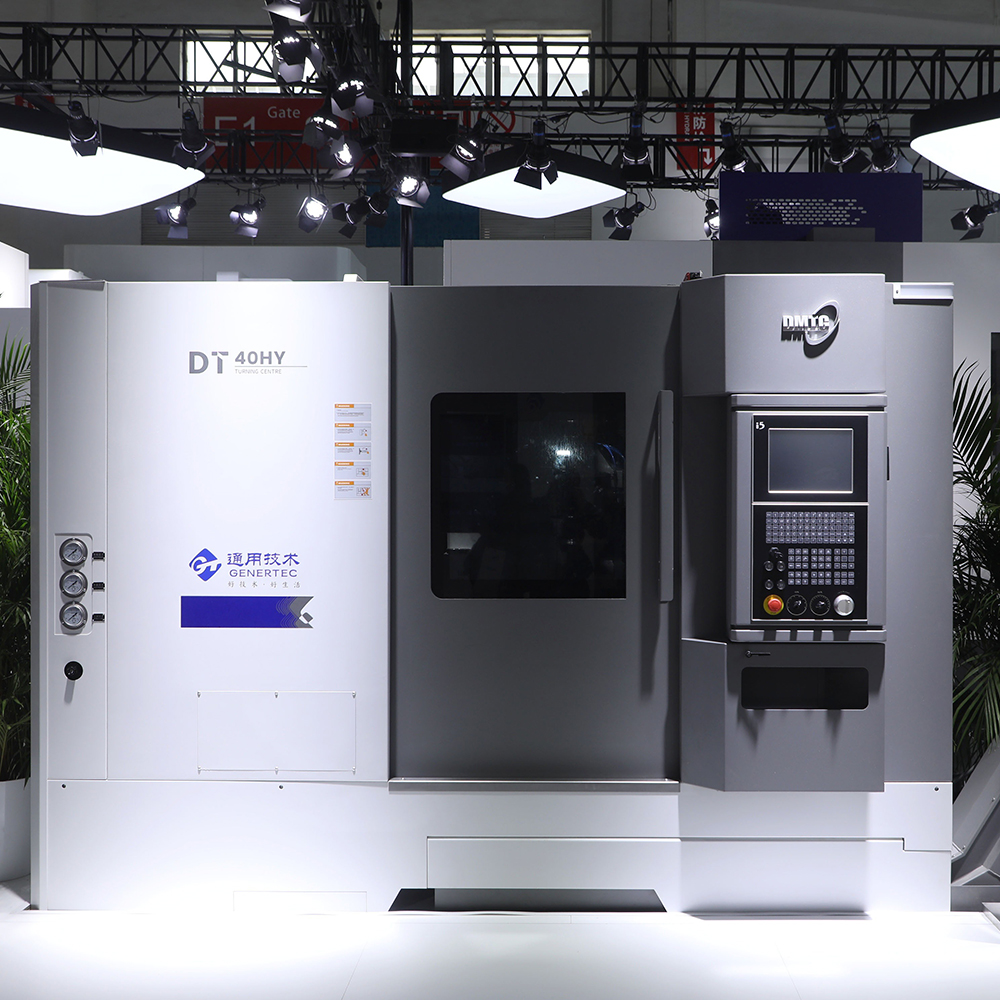

Products Features
1: For components such as the bed, saddle, lead screw, and supports that are crucial to precision, the structure and machining accuracy have been meticulously optimized. Additional assembly control parameters have been incorporated, enhancing the overall accuracy and reliability of the entire machine. The repeatability accuracy has been elevated by 30%.
2: The machine offers continuous and effective automatic lubrication for guide rails and ball screws, along with automatic chip evacuation and forced cooling. This ensures uninterrupted, long-term operation of the machine. With a maximum spindle speed of 4000 r/min, rapid traverse speeds of X-axis at 30m/min, Y-axis at 12m/min, and Z-axis at 30m/min, and a tool change time of only 0.49 seconds between adjacent stations, the optimal combination of these parameters guarantees reliable operation and can increase machining efficiency by over 10%.
3: The machine features complete enclosure for protection, preventing the leakage of chips and coolant. Various limit protections of the mechanism, coupled with system self-diagnostic prompts and warnings, ensure non-stop continuous operation of the machine. This feature is particularly suitable for production lines operating on a 24-hour shift basis.
