Product Specifications
| Type | CNC630 | CNC850 | CNC1000 | CNC1250 |
| Main specification | ||||
| Max.swing over bed | c630 | c850 | c1000 | c1250 |
| Max machining diameter | c630 | c 850 | c1000 | c1250 |
| Max.swing over carriage | c430 | c630 | c 850 | c1000 |
| Maxlengthof workpiece | 1000/1500/2000/3000/4000/5000 | |||
| Max weight of workpiece | 2000 | 4000 | ||
| Spindle | ||||
| Spindle nose | ISO A2-11 | ISO A2-11 | ISO A2-15 | ISO A2-15 |
| Diameter of spindle in front bearing | c160 | c 160 | c200 | c200 |
| Spindle hole | c95 | c95 | c 120 | c120 |
| Max.speed of spindle | 2000 | 1500 | 1200 | 1200 |
| Power of spindle servo motor | 26.5 | 38 | 45 | 45 |
| Chuckdiameter(hydraulicchuck is optional) | 15 | 18 | 20 | 20 |
| Tailstock | Hydraulic programmabletailstock is optional | |||
| Diameter of tailstock | c180 | c 180 | c200 | c200 |
| Travel of tailstock | 160 | 160 | 200 | 200 |
| Taper of tailstock | MT6 | MT6 | MT6 | MT6 |
| Drive unit | ||||
| Travel of X axis | 315 | 425 | 500 | 625 |
| Travel of Z axis | 1050/1550/2100/3100/4100/5100 | |||
| Rapid traverse of X axis | 10(hard rail)/20(linear rail) | |||
| Rapid traverse of Z axis | 8(hard rail)/15(linear rail) | |||
| Feed rate of Xaxis | 0.001-4000 | |||
| Feed rate of Zaxis | 0.001-4000 | |||
| NC horizontal turret | Servo powerturret isoptional | |||
| Tool position | 12/8 | 12/8 | 12/8 | 12/8 |
| Section of tool shank | 25X25 | 32X32 | 40X40 | 40X40 |
| Diameter of boring bar | c32 | c40 | c50 | c 50 |
| Choosing tool atthe nearest distance | Yes | |||
| Systemconfiguration | ||||
| CNC system | SIEMENS 828D/ FANUC O I-TF | |||
| Servo motor for Xaxis | 27Nm | 38Nm | ||
| Servo motor for Z axis | 27Nm | 38Nm | ||
| Detecting unit | Optional | |||
| Grating scale | Optional | |||
| Encoder | Optional | |||
| Tool setting | Optional | |||
Machine Features
1: The material of bed is made of high strength HT300 and 45 degree integral casting, and the bed is in process of secondary anneal heat treatment, has characteristics of high precision and high stability. Can be equipped linear guide way, set of steel guide way or quenching guide way according to user’s requirement.
2: Uses high precision special bearing for spindle, reasonable equipping and span design, make the performance of high rigidity and high precision, and convenient to configure C axis function, cooperate with the power tool post to realize milling and turning function according to requirement, and can configure the hydraulic power chuck, 3-jaw self-centering chuck.

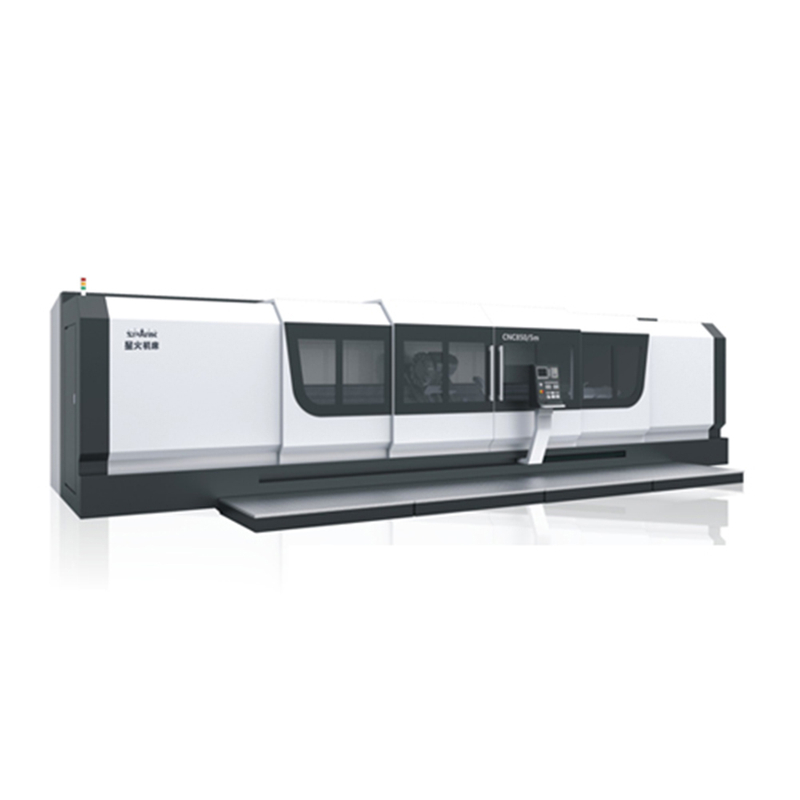

Products Pictures
Product Specifications
| Type | CNC630 | CNC850 | CNC1000 | CNC1250 |
| Main specification | ||||
| Max.swing over bed | c630 | c850 | c1000 | c1250 |
| Max machining diameter | c630 | c 850 | c1000 | c1250 |
| Max.swing over carriage | c430 | c630 | c 850 | c1000 |
| Maxlengthof workpiece | 1000/1500/2000/3000/4000/5000 | |||
| Max weight of workpiece | 2000 | 4000 | ||
| Spindle | ||||
| Spindle nose | ISO A2-11 | ISO A2-11 | ISO A2-15 | ISO A2-15 |
| Diameter of spindle in front bearing | c160 | c 160 | c200 | c200 |
| Spindle hole | c95 | c95 | c 120 | c120 |
| Max.speed of spindle | 2000 | 1500 | 1200 | 1200 |
| Power of spindle servo motor | 26.5 | 38 | 45 | 45 |
| Chuckdiameter(hydraulicchuck is optional) | 15 | 18 | 20 | 20 |
| Tailstock | Hydraulic programmabletailstock is optional | |||
| Diameter of tailstock | c180 | c 180 | c200 | c200 |
| Travel of tailstock | 160 | 160 | 200 | 200 |
| Taper of tailstock | MT6 | MT6 | MT6 | MT6 |
| Drive unit | ||||
| Travel of X axis | 315 | 425 | 500 | 625 |
| Travel of Z axis | 1050/1550/2100/3100/4100/5100 | |||
| Rapid traverse of X axis | 10(hard rail)/20(linear rail) | |||
| Rapid traverse of Z axis | 8(hard rail)/15(linear rail) | |||
| Feed rate of Xaxis | 0.001-4000 | |||
| Feed rate of Zaxis | 0.001-4000 | |||
| NC horizontal turret | Servo powerturret isoptional | |||
| Tool position | 12/8 | 12/8 | 12/8 | 12/8 |
| Section of tool shank | 25X25 | 32X32 | 40X40 | 40X40 |
| Diameter of boring bar | c32 | c40 | c50 | c 50 |
| Choosing tool atthe nearest distance | Yes | |||
| Systemconfiguration | ||||
| CNC system | SIEMENS 828D/ FANUC O I-TF | |||
| Servo motor for Xaxis | 27Nm | 38Nm | ||
| Servo motor for Z axis | 27Nm | 38Nm | ||
| Detecting unit | Optional | |||
| Grating scale | Optional | |||
| Encoder | Optional | |||
| Tool setting | Optional | |||
Machine Features
1: The material of bed is made of high strength HT300 and 45 degree integral casting, and the bed is in process of secondary anneal heat treatment, has characteristics of high precision and high stability. Can be equipped linear guide way, set of steel guide way or quenching guide way according to user’s requirement.
2: Uses high precision special bearing for spindle, reasonable equipping and span design, make the performance of high rigidity and high precision, and convenient to configure C axis function, cooperate with the power tool post to realize milling and turning function according to requirement, and can configure the hydraulic power chuck, 3-jaw self-centering chuck.

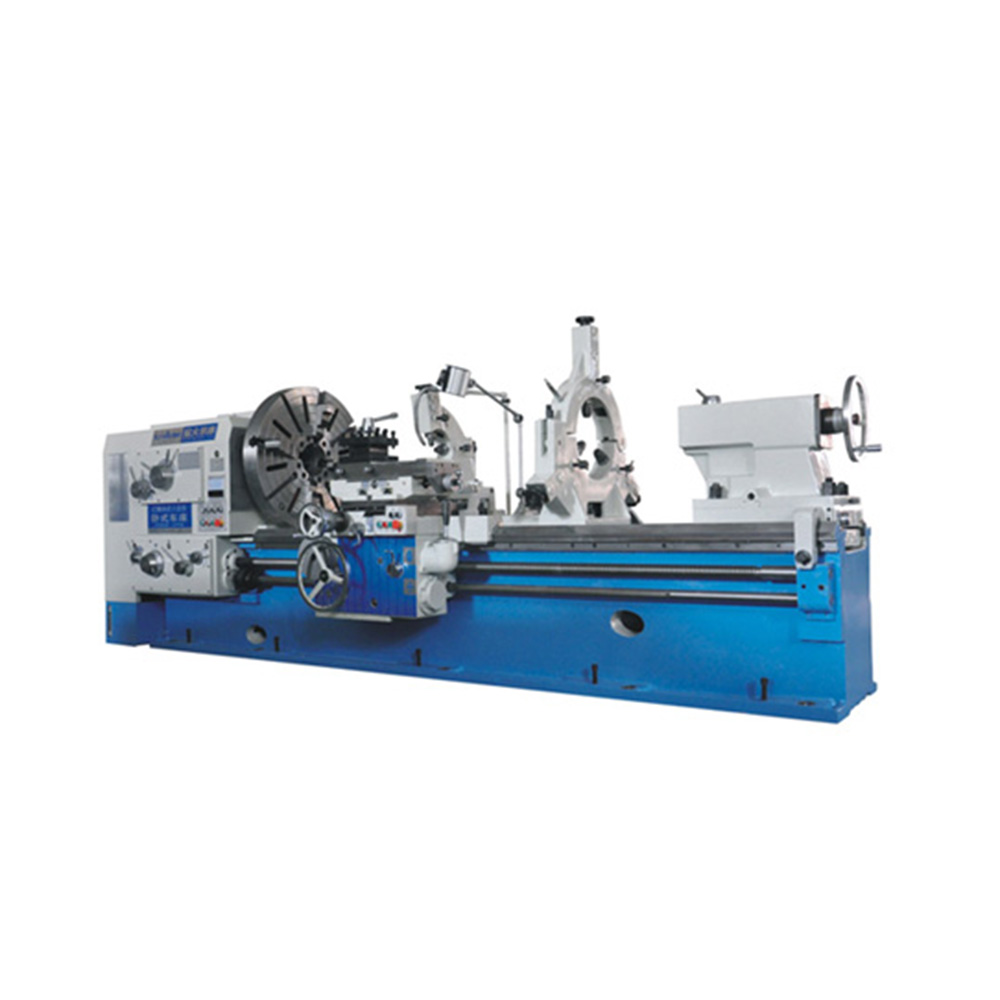

Products Pictures
