Products Specification
| Specification | Unit | CLS20 | ||
| Max swing diameter over bed | mm | φ500 | ||
| Max.turning diameter | Shaft parts | mm | φ260 | |
| Disc parts | mm | φ300 | ||
| Max.turning length | mm | 450 | 430 | |
| Guideway type | Linear guideway | |||
| Chuck size | 8" | 10" | ||
| Type of spindle nose | A2-6 | A2-8 | ||
| Spindle speed range | rpm | 45～4500 | 35～3500 | |
| Spindle motor power | KW | 11/15 FANUC Oi-TF(5) | ||
| Spindle bore | mm | φ62 | φ87 | |
| Max.bar capacity (Equipped with through-hole | mm | φ51 | φ74 | |
| Max.travel of X/Z axis | mm | 165/500 | ||
| Rapid traverse of X/Z axis | m/min | 20/24 | ||
| Cutting feed rate | mm/min | 0~5000 | ||
| Turret type and tool numbers | Hydraulic 8-position turret (Opt:12-position turret) | |||
| Tool shank size | mm | 25X25 | ||
| Indexing time(adjacent/farthest) | S | 0.45/1.2 (0.45/1.4512-position turret) | ||
| Max.travel of tailstock | 460 | |||
| Diameter of tailstock quill | φ80 | |||
| Tailstock quill stroke | mm | 130 | ||
| Taper of tailstock | MT4 | |||
| X/Z axis positioning accuracy | mm | 0.008/0.008 | ||
| X/Z axis repeatability accuracy | mm | 0.004/0.004 | ||
| CNC Controller | FANUC 0i-TF(5)Plus、SIEMENS 828D、GSK 988T | |||
| Machine dimensions(L×W×H) | mm | 2900×2870×2000(Rear chip conveyor) 3900×1740×2000 (Side chip conveyor) | ||
| Machine weight | kg | 4000 | ||
Products Configuration
Standard Configurations:

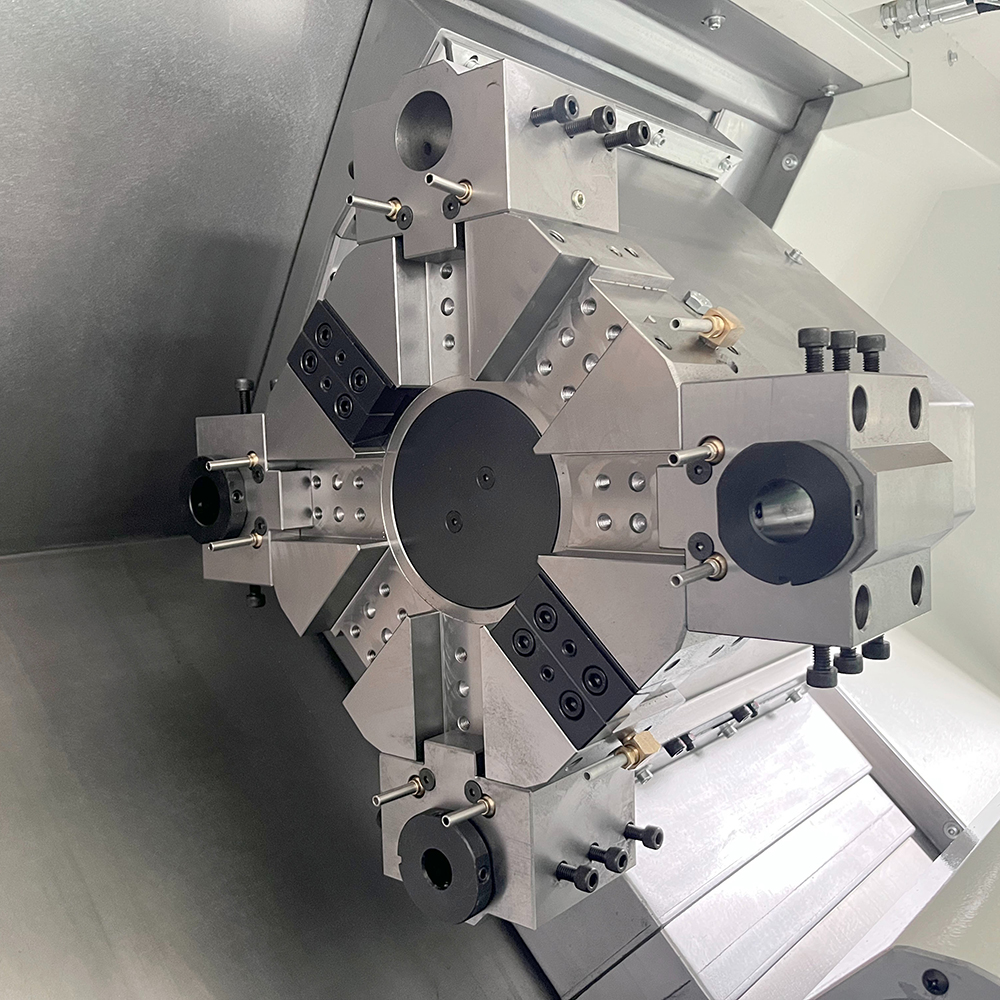

Hydraulic 12-position turret for DT series
NSK spindle bearings and X/Z axis bearings
X|Z ball screws& linear guideways

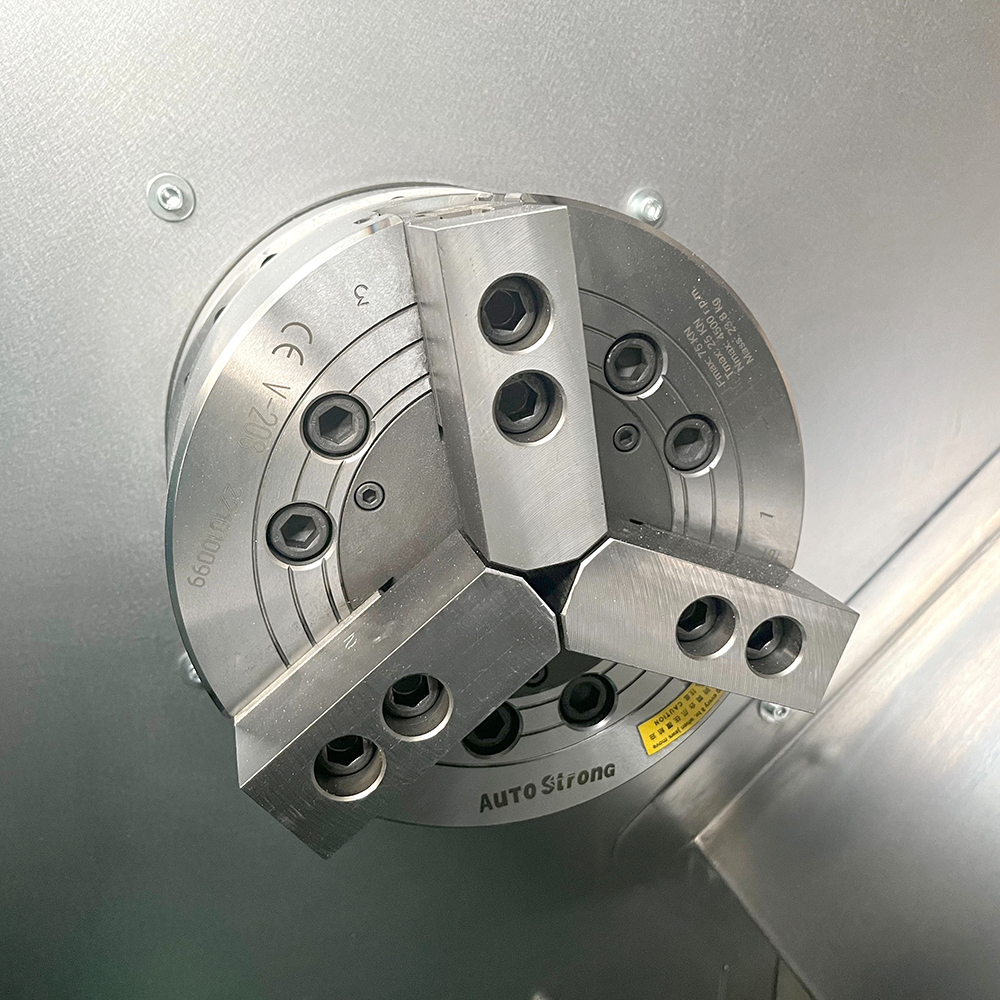

Non through-hole hydraulic chuck

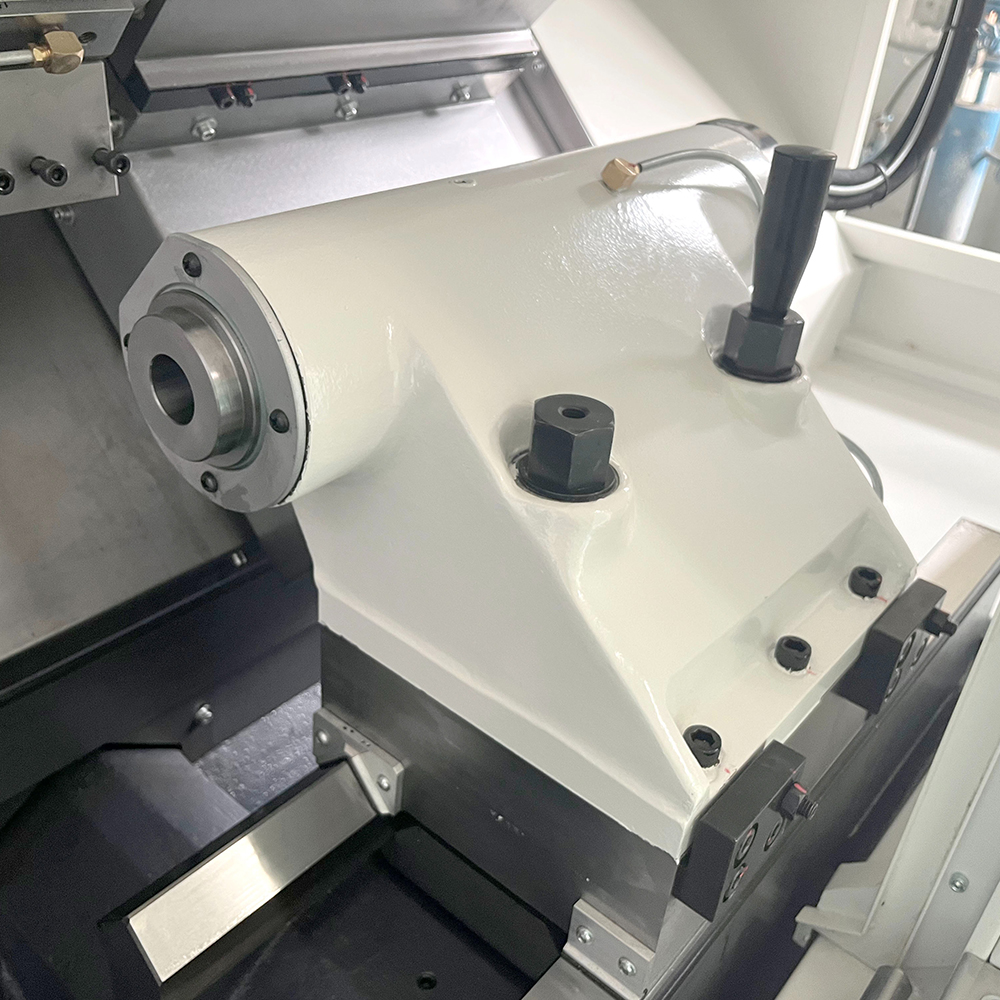

Hydraulic tailstock
Heat exchanger
Chip collection box
Automatic lubrication svstem
Standard toolkit
Optional Configurations:
Hydraulic 12-position turret
X/Z THK ball screws& THK linear guideways
Through-hole hydraulic chuck
Tool presetter
Air conditioner
Oil mist separator
Bar feeder and parts catcher
Chain-type chip conveyor
Automatic door
Products Features
1: Equipped with systems like Fanuc Oi-TF, GSK, with USB ports, and a 10.4" color LCD display
2: High-strength cast iron bed
3: Parallel V-belt transmission
4: Wide linear guide width, X - 35 mm \ 1.378", Z - 35 mm \ 1.378"
5: Servo motor directly connected to the lead screw, X - φ28 mm \ φ1.102", Z - φ36 mm \ φ1.417"
6: Faster rapid traverse speed, X - 20 m/min \ 787 ipm, Z - 24 m/min \ 945 ipm
7: Processing with high and low guide rail beds avoids secondary positioning and clamping, making the machining process simpler, highly precise, and more stable
8: Rear chip discharge, side chip discharg

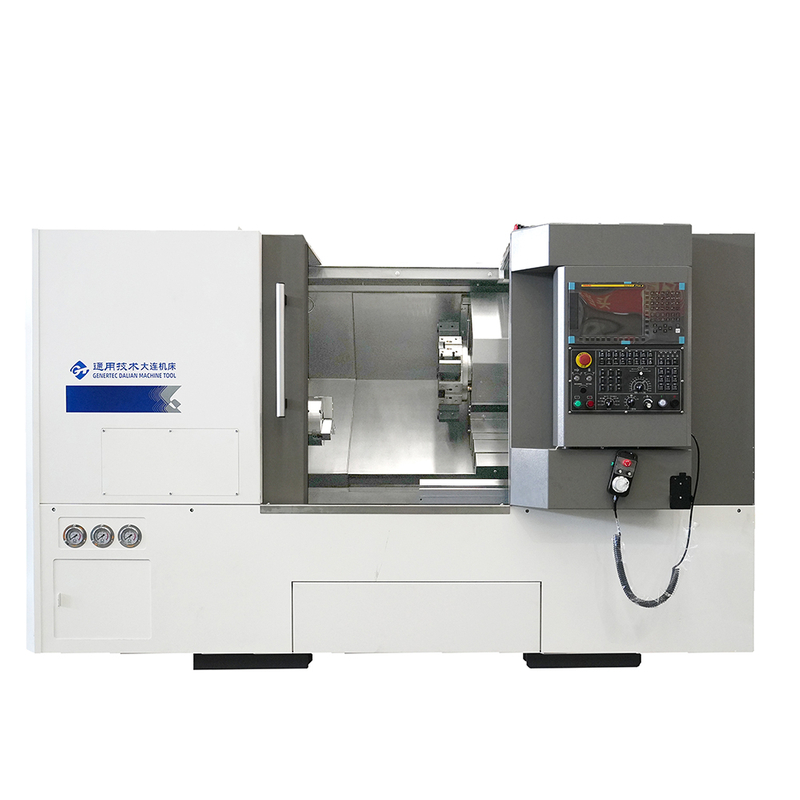

Products Pictures
