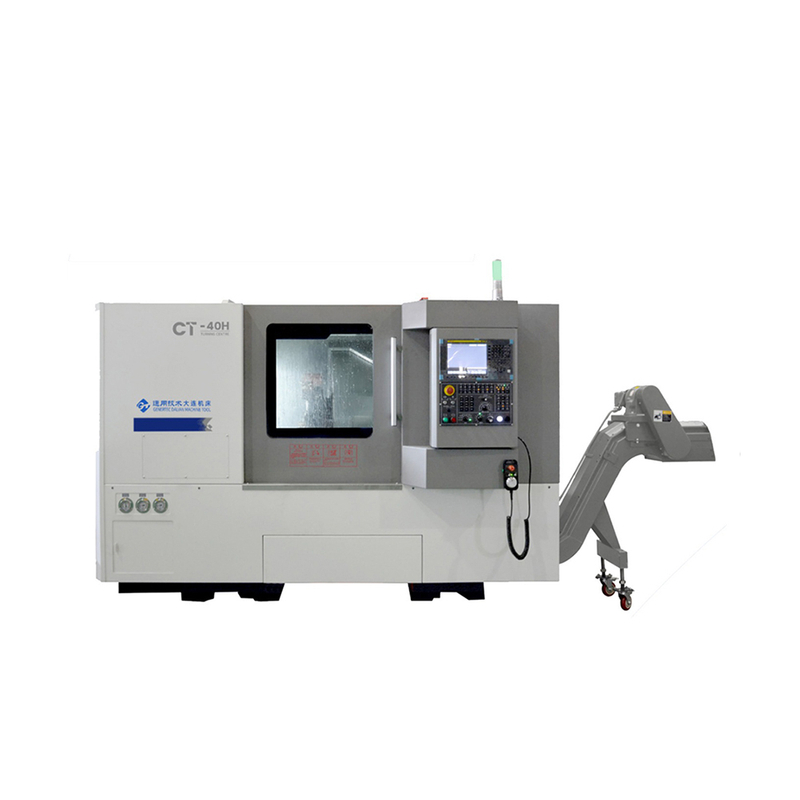

Products Specification
| Specification | Unit | CT40H |
| Max.swing over bed | mm | 500 |
| Max.turning length | mm | 450 |
| Max.turning diameter(shaft/disc) | mm | 260/300 |
| Type of guideway | Linear | |
| Angle of bed | 45° | |
| Chuck size | 8” | |
| Spindle nose | A2-6 | |
| Spindle bore | mm | 62 |
| Bar capacity | mm | 52 |
| Spindle speeds | rpm | 45-4500 |
| Spindle motor | rpm | 45611 |
| Spindle motor torque | Nm | 93/127 |
| Number of tool stations | 12 | |
| Indexing time | S | 0.36/1.01 |
| (with/without adjacent tool) | ||
| Shank size for OD tool | mm | 25x25 |
| Shank size for ID tool | mm | 32 |
| Live tool motor | Kw | 3.7/5.5 |
| Live tool max.speed | rpm | 4000 |
| Live tool max.drilling capability | mm*mm/u | 14*0.15 |
| Live tool max.tapping capability | mm*mm | M10x1.5;M24x1 |
| Live tool max.milling capability | mm*mm*mm/min | 20*14*40 |
| (dia.*depth*speed ) | ||
| X/Z axis travel | mm | 165/500 |
| X axis rapid travel | m/min | 20 |
| Z axis rapid travel | m/min | 24 |
| Feedrate | mm/min | 0~9000 |
| Quill diameter | mm | 80 |
| Quill inside taper | MT.4 | |
| Quill travel | mm | 130 |
| Tailstock travel | mm | 460 |
| Positioning | mm | X/Z:0.008/0.008 |
| Repeatability | mm | X/Z:0.004/0.004 |
| Machine size(side chip conveyor) | mm | 3900*1800*1850 |
| Net weight | kg | 4000 |
Products Configuration
Base Machine Configuration
HNC-808Di CNC control, 10.4” screen
8” non-thru hole hydraulic 3-jaw chuck
12 position servo turret
Stepped horizontal positioned Z axis rail
THK Linear guide way
Side or rear-exit chip conveyor systems

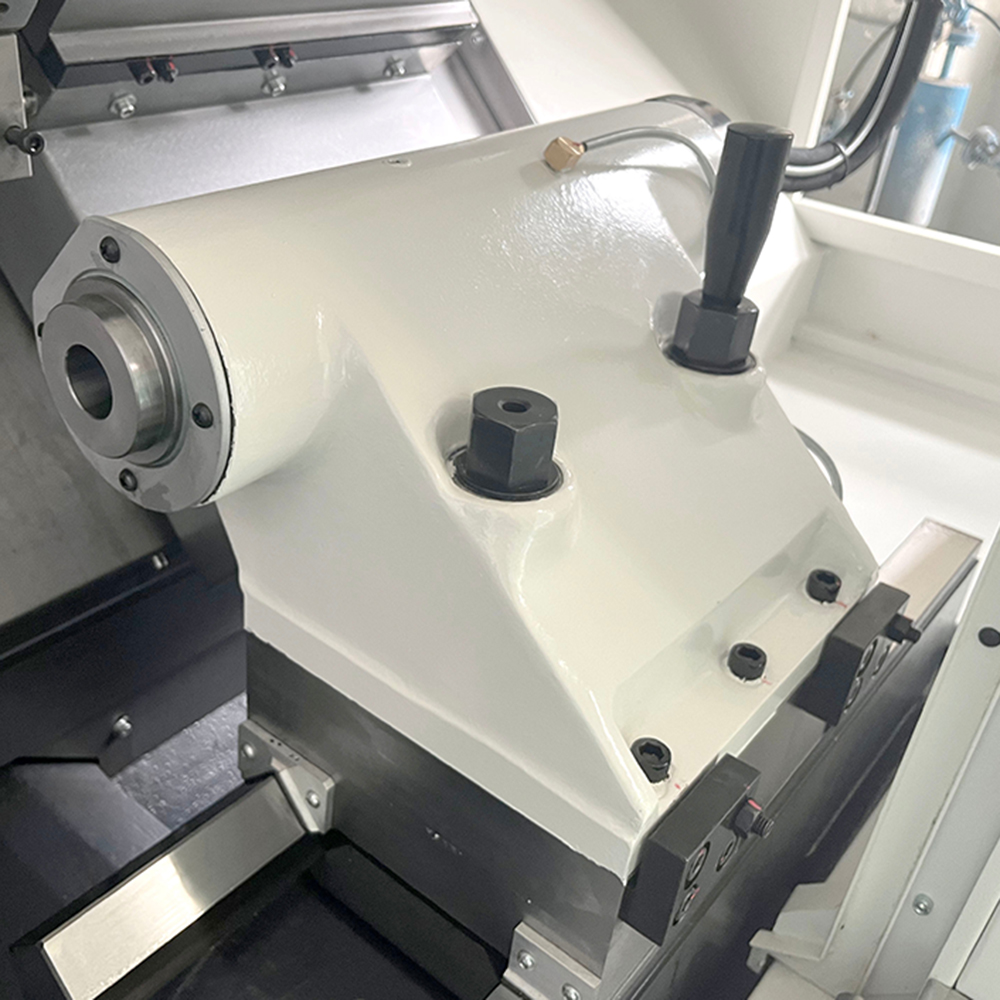

Hydraulic tail stock
Coolant system
Enclosure Guarding
USB interface and DNC function
Products Features
1.45°slant bed
2.8” hydraulic chuck
3.11/15kw spindle motor

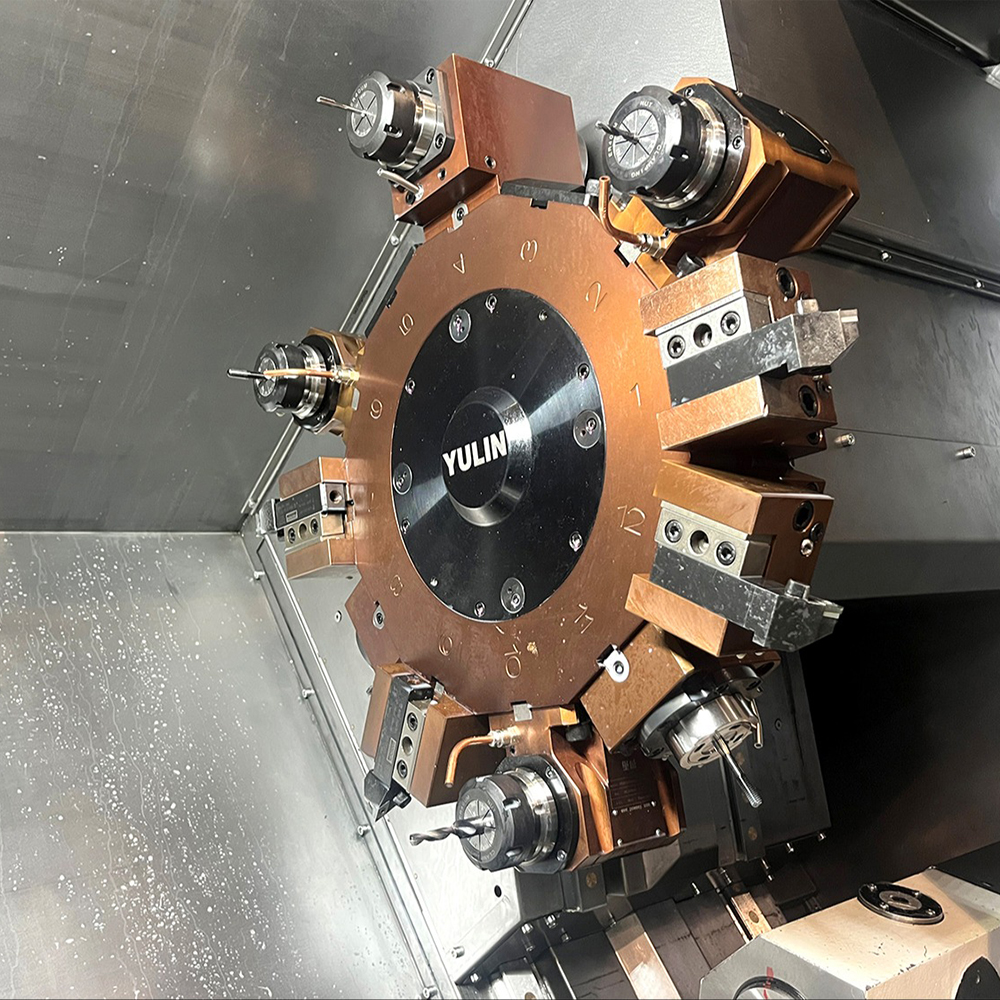

4.12 station live tool turret
5.Stepped horizontal positioned Z axis rail
6.Side or rear-exit chip conveyor systems

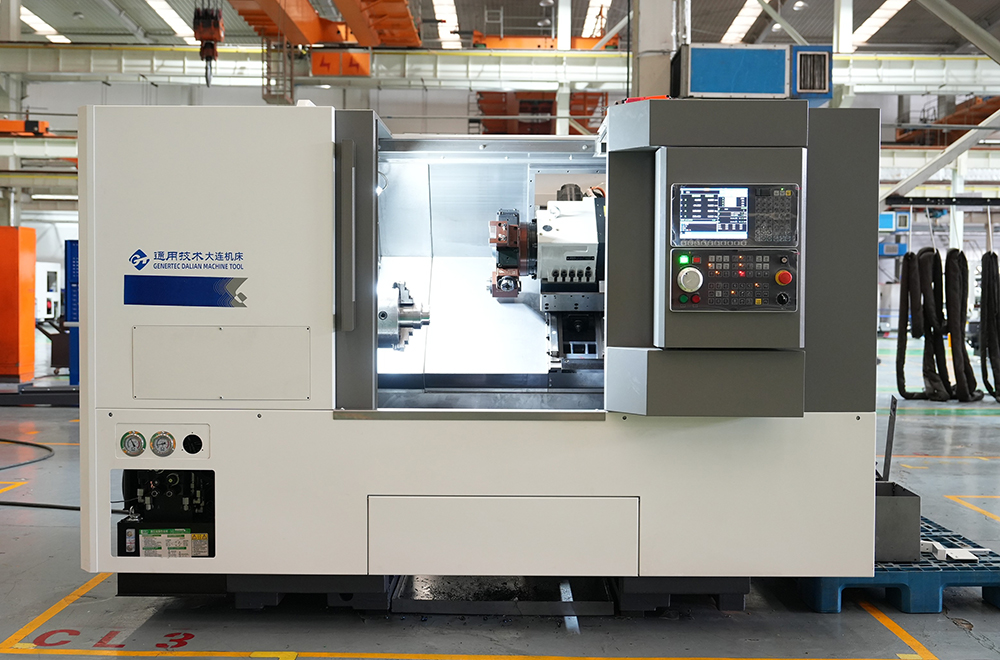

Products Pictures
Products Specification
| Specification | Unit | CT40H |
| Max.swing over bed | mm | 500 |
| Max.turning length | mm | 450 |
| Max.turning diameter(shaft/disc) | mm | 260/300 |
| Type of guideway | Linear | |
| Angle of bed | 45° | |
| Chuck size | 8” | |
| Spindle nose | A2-6 | |
| Spindle bore | mm | 62 |
| Bar capacity | mm | 52 |
| Spindle speeds | rpm | 45-4500 |
| Spindle motor | rpm | 45611 |
| Spindle motor torque | Nm | 93/127 |
| Number of tool stations | 12 | |
| Indexing time | S | 0.36/1.01 |
| (with/without adjacent tool) | ||
| Shank size for OD tool | mm | 25x25 |
| Shank size for ID tool | mm | 32 |
| Live tool motor | Kw | 3.7/5.5 |
| Live tool max.speed | rpm | 4000 |
| Live tool max.drilling capability | mm*mm/u | 14*0.15 |
| Live tool max.tapping capability | mm*mm | M10x1.5;M24x1 |
| Live tool max.milling capability | mm*mm*mm/min | 20*14*40 |
| (dia.*depth*speed ) | ||
| X/Z axis travel | mm | 165/500 |
| X axis rapid travel | m/min | 20 |
| Z axis rapid travel | m/min | 24 |
| Feedrate | mm/min | 0~9000 |
| Quill diameter | mm | 80 |
| Quill inside taper | MT.4 | |
| Quill travel | mm | 130 |
| Tailstock travel | mm | 460 |
| Positioning | mm | X/Z:0.008/0.008 |
| Repeatability | mm | X/Z:0.004/0.004 |
| Machine size(side chip conveyor) | mm | 3900*1800*1850 |
| Net weight | kg | 4000 |
Products Configuration
Base Machine Configuration
HNC-808Di CNC control, 10.4” screen
8” non-thru hole hydraulic 3-jaw chuck
12 position servo turret
Stepped horizontal positioned Z axis rail
THK Linear guide way
Side or rear-exit chip conveyor systems
Hydraulic tail stock
Coolant system
Enclosure Guarding
USB interface and DNC function
Products Features
1.45°slant bed
2.8” hydraulic chuck
3.11/15kw spindle motor
4.12 station live tool turret
5.Stepped horizontal positioned Z axis rail
6.Side or rear-exit chip conveyor systems
Products Pictures
