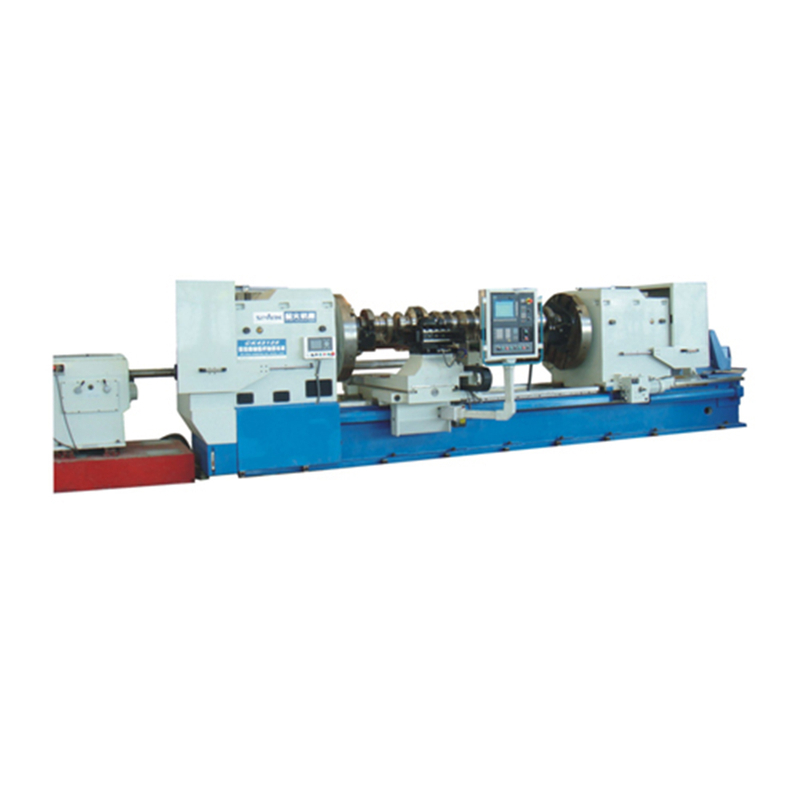

CNC Crankshaft Lathe Machine

This machine tool is specialized for machining various large eccentric shafts, crankshafts, and connecting rod journals. It can perform semi-finishing and finishing processes on the main journal and connecting rod journal of a crankshaft, including the external diameter, fillet root, external diameter of the crank arm, inner side of the crank arm, internal fillet at the intersection of the connecting rod neck, and chamfering of the crankshaft's external circle. It also has the capability to machine the main diameter of the crankshaft. This equipment is suitable for machining carbon steel, alloy steel, cast steel, and cast iron.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Specifications

Main specifications	Unit	C43100	C43125	C43160
Swing over carriage	mm	600	850	1250
Adjustable range of eccentricity	mm	0～105	0～160	0～260
Max.load between centers	ton	6	6	10
Bed width	mm	970	1100	1600
Spindle speed	rpm	16～200	12～160	2～120
Spindle motor	kW	AC17/22	AC30/42	DC55
Machine weight of 3 meters	Kg	17500	19000	30000
Add weight per meter	Kg	1200	1250	2250
Machine outline size of 3 meters	L x W x H	7350X1850X1950	7850X2350X2025	15200X2450X2475

Products Features

1: It can perform semi-finishing and finishing processes on the main journal and connecting rod journal of a crankshaft, including the external diameter, fillet root, external diameter of the crank arm, inner side of the crank arm, internal fillet at the intersection of the connecting rod neck, and chamfering of the crankshaft's external circle.

2: It also has the capability to machine the main diameter of the crankshaft. This equipment is suitable for machining carbon steel, alloy steel, cast steel, and cast iron.

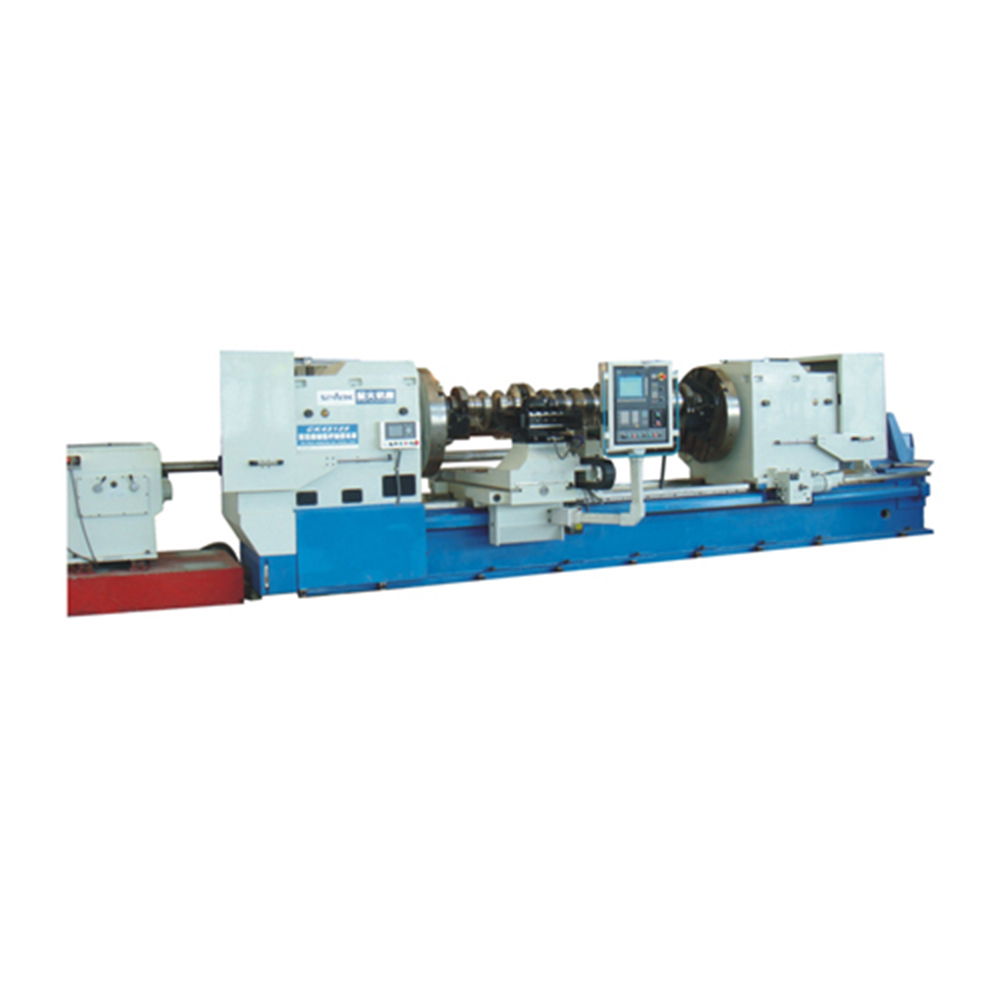

Products Pictures
