Product Specifications
| Main specifications | CK(W)61125/ CK(W)61140/ CK(W)61160 | CK(W)61125/CK(W)61140/CK(W)61160/ CK(W)61180/CK(W)61200/CK(W)61220/ CK(W)61250 |
| Swing over bed | 1250/1400/1600 | 1250/1400/1600/1800/2000/2200/2500 |
| Swing over carriage | 850/1050/1250 | 950/1100/1250/1420/1620/1820/2100 |
| Max.turning length | L=1600、2000～16000 (Increases by 1000mm) | |
| Max.load between centers | 15/18 | |
| Bed width | 970 (heavy) mountain rail | 1100 flat rail |
| Spindle speed | 2～250 | 2～200/2～250 |
| Spindle motor | DC55 | |
| Section of tool shank | 40×40 | |
| Diameter of tailstock quill | 240/280 | |
| Travel of tailstock quill | 80;1:7 | |
| Weight of the lathe with 3m | 23000/25000/27000 | 23000/25000/27000/29000/31000/33000/35000 |
| Additional weight per | 1300 | 1300 |
Products Features
1: The machine features high power, excellent rigidity, high precision, and good precision retention. It is equipped with reliable Siemens or Fanuc control systems, ensuring dependable operation.
2: The machine has a dual helical gear rack drive for the longitudinal axis and ball screw drive for the transverse axis, with full-loop position control using metal scales from HEDENHAIN, Germany. It offers features like tool compensation, graphic display, fault diagnosis, concurrent programming, and quick programming for graphical displays.
3: The main drive is gear-driven with a four-stage automatic hydraulic continuously variable transmission.
4: The machine's layout is compact and ergonomic, with a built-in structure for the tailstock quill and a motorized tailstock movement mechanism for ease of operation.
5: The wear-resistant slide ways significantly enhance durability and maintain precision. The structure and materials of the machine are well-chosen, offering sufficient rigidity and wear resistance to ensure smooth low-speed operation with minimal thermal deformation, low noise, and excellent shock resistance. Under the specified environmental conditions described in the technical specifications, the machine can operate continuously and maintain stable accuracy.

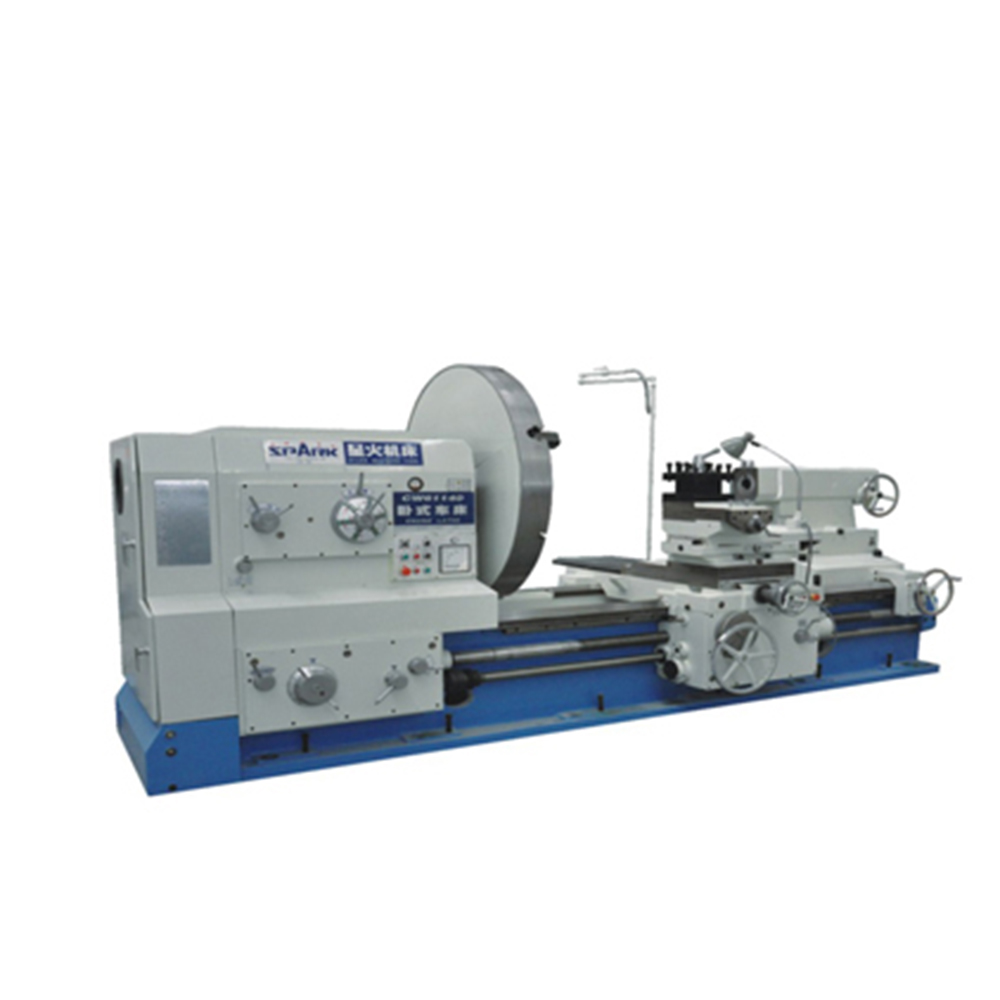

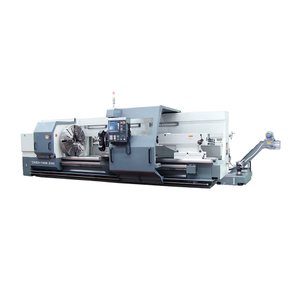

Products Pictures
