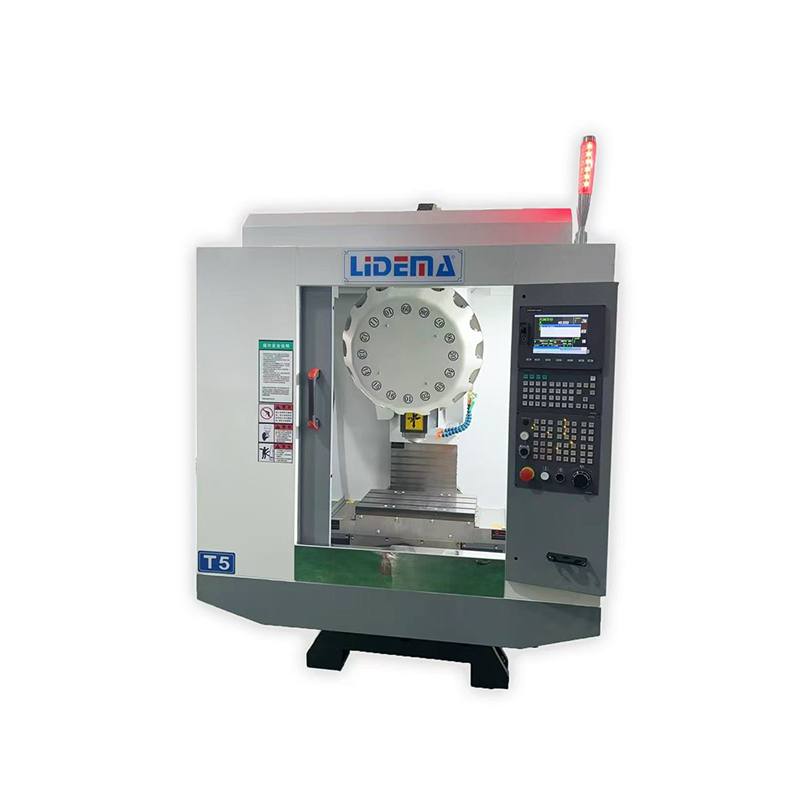

LIDEMA T5 Vertical Drilling & Tapping Center

The T5 Vertical Drilling & Tapping Center features a high-rigidity vertical frame structure designed for precision, speed, and long-term stability. The machine body is built from high-strength cast iron, optimized through 3D simulation and thermal stress relief for maximum rigidity. Equipped with a Taiwan SYNTEC 22MA CNC control system, it ensures efficient operation and smooth performance. The THK linear guideways and ball screws deliver superior motion accuracy and low friction, while the TDEHONG BT30 spindle provides high-speed, high-precision cutting performance. Ideal for precision drilling, tapping, and light milling, the T5 offers outstanding reliability, machining accuracy, and operational efficiency.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High-Rigidity Structure

Vertical frame layout with fixed column and precision-cast iron components ensures structural stability, rigidity, and vibration resistance.

Advanced CNC Control

Equipped with the Taiwan SYNTEC 22MA bus-type system, supporting DNC online machining and user-friendly operation.

Precision Motion System

X/Y/Z axes use Japan THK 25/30 mm linear guideways and precision ball screws for smooth movement, high accuracy, and minimal backlash.

High-Speed Spindle Assembly

Uses Taiwan TDEHONG BT30 high-speed spindle with Germany FAG/SKF P4 bearings, assembled under constant temperature for precision and durability.

Automatic Tool Changer (ATC)

16-tool ETech carousel-type tool magazine, cam-driven for fast, accurate, and low-noise tool change.

Efficient Cooling System

Large-capacity water tank and 750 W / 20 L/min coolant pump with selectable air/water cooling and built-in air gun for chip cleaning.

Pneumatic System

PLC-controlled solenoid valves ensure precise and rapid tool unclamping, spindle air-blow, and air-cooling operations.

Full-Enclosure Protection

Safety-compliant guarding prevents coolant splash and chip intrusion, maintaining both operator safety and machine longevity.

Automatic Lubrication

Centralized oil lubrication system supplies metered oil to all moving surfaces, reducing wear and ensuring smooth motion.

Chip Removal Design

Sloped interior design guides chips into the collection tray, making removal quick, clean, and efficient.

Machine Operating Conditions:

Power Supply: 380V ±10%, 50Hz ±1%, 3-phase AC

Ambient Temperature Range: 5°C – 40°C

Optimal Operating Temperature: 15°C – 25°C

Relative Humidity: 40% – 75%

Air Supply Pressure: 0.5 – 0.7 MPa

Product Specifications:

Item	Description	Unit	Value
Worktable	Table Size	mm	500 × 300
	T-Slot	mm	3 × 14 × 85
	Max. Loading Capacity	kg	300
Travel	X / Y / Z Travel	mm	500 / 300 / 320
	Spindle Nose to Table Surface	mm	80 – 400
	Spindle Center to Column Surface	mm	300
Feed	Rapid Feed Speed (X/Y/Z)	m/min	40 / 40 / 30
Feed	Cutting Feed Speed (X/Y/Z)	mm/min	2.5 – 12,000
Spindle	Spindle Taper	—	BT30
	Spindle Speed	r/min	40 – 12,000
	Spindle Motor Power	kW	AC Servo 5.5
Tool Magazine	Tool Capacity	pcs	16
	Max. Tool Weight	kg	5
	Max. Tool Size	mm	Ø150 × 200
	Tool Change Time	s	3
Accuracy	Positioning Accuracy	mm	±0.005
Accuracy	Repeat Positioning Accuracy	mm	±0.005
Overall Machine	Machine Dimensions (L×W×H)	mm	1450 × 1500 × 1900
Overall Machine	Machine Weight (Approx.)	kg	2000

Standard Configuration:

No.	Item	Description / Specification
1	CNC System	Taiwan SYNTEC 22MA Bus-Type Control System
2	Main Motor	Taiwan SYNTEC AC Servo Motor
3	Feed Motors	Taiwan SYNTEC Servo Motors
4	Spindle Unit	Taiwan TDEHONG High-Speed Spindle
5	Ball Screws	Japan THK Precision Ground Ball Screws
6	Tool Magazine	Taiwan ETech 16-Tool Carousel Type
7	Work Lamp	Machine Illumination Lamp
8	Spindle Air Blast	Spindle Taper Cleaning Air System
9	Coolant System	Integrated Coolant Circulation System
10	High-Pressure Air Gun	External High-Pressure Cleaning Air Gun
11	Leveling Pads & Bolts	Machine Leveling and Adjustment Set
12	Technical Documents	Operation Manual & Technical Files
13	Spindle Taper	BT30
14	Signal Tower	Three-Color Warning Light
15	Air Source Processor	Taiwan AIRTAC Pneumatic Filter-Regulator Unit
16	MPG Handwheel	Detachable Manual Pulse Generator
17	Full Enclosure	Complete Safety Enclosure & Splash Guard
18	Electrical Cabinet Cooler	Heat Exchanger Cooling Unit for Electrical Cabinet

Key Components List:

No.	Component & Specification	Brand / Origin
1	CNC Control System	Taiwan SYNTEC 22MA
2	Spindle Unit	Taiwan SYNTEC
3	Spindle Bearings	Germany FAG (P4 Grade)
4	Ball Screw Bearings	Japan FAG / SKF
5	Ball Screws	Japan THK
6	Linear Guideways	Japan THK
7	Tool Magazine	Taiwan ETech
8	Lubrication System	China Local Brand
9	Electrical Cabinet Cooler	China Local Brand
10	Main Electrical Components	France Schneider
11	Coolant Pump	Taiwan NOK
12	Couplings	Taiwan Hongwang
