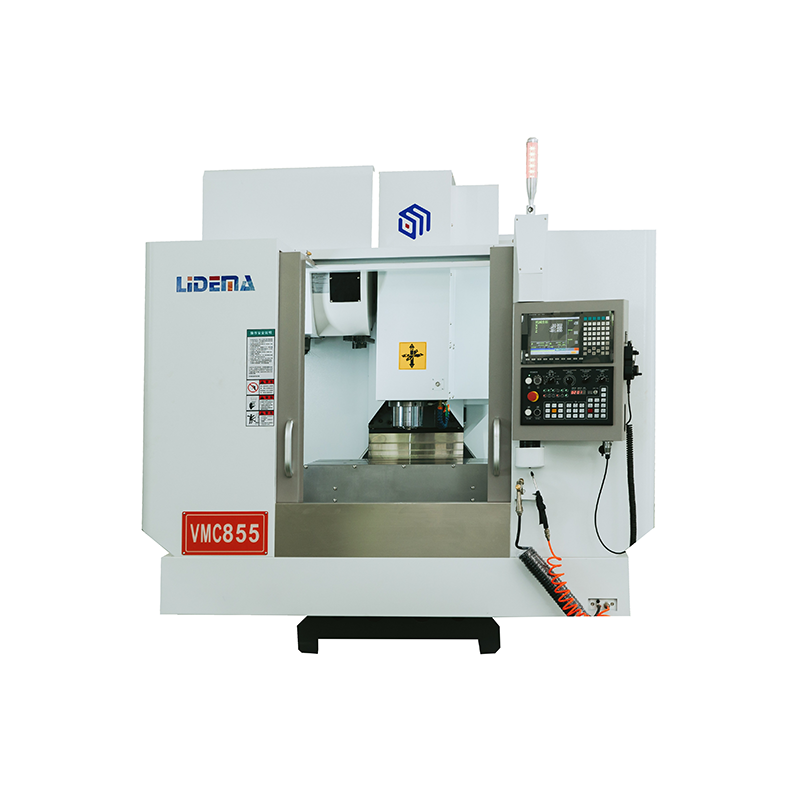

LIDEMA VMC855 Vertical Machining Center

The VMC855 Vertical Machining Center is designed with a rigid vertical frame structure for exceptional precision, stability, and durability. Its key components — including the bed, column, saddle, and spindle head — are made of high-strength cast iron optimized with 3D design and advanced heat treatment, ensuring excellent vibration resistance and thermal stability. Equipped with the Taiwan SYNTEC 22MA CNC system, the VMC855 offers powerful control, smooth operation, and high machining efficiency. Using HIWIN roller linear guideways and precision ball screws, it provides outstanding positioning accuracy and motion sensitivity. The Taiwan TAI DA high-speed spindle and FANGGUAN 24-tool ATC enable fast, reliable, and precise tool changes for continuous, high-performance metal machining.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

High-Rigidity Structure:

Vertical column frame design with cast-iron components ensures superior rigidity, accuracy, and long-term stability.

Advanced CNC Control:

Equipped with the Taiwan SYNTEC 22MA bus-type CNC system featuring full DNC support and user-friendly operation.

Precision Motion System:

X/Y/Z axes adopt HIWIN roller linear guideways (X: 35mm, Y: 45mm, Z: 45mm, six sliders total) for smooth movement and high positioning accuracy.

High-Speed Spindle Assembly:

Taiwan TAI DA high-speed spindle with Germany FAG P4 bearings, dynamically balanced for precision and extended service life.

24-Tool Automatic Tool Changer (ATC):

Taiwan FANGGUAN disc-type 24-tool magazine with roller cam drive and mechanical arm changeover for fast, quiet, and accurate tool exchange.

Efficient Cooling & Chip Removal:

Equipped with a 750W / 20L/min coolant pump, switchable air/water cooling, and air gun cleaning; sloped interior design ensures smooth chip flow.

Pneumatic & Lubrication Systems:

PLC-controlled pneumatic unit and centralized lubrication system deliver reliable automation and reduced wear on key moving parts.

Machine Operating Conditions:

Power Supply: 380V ±10%, 50Hz ±1%, 3-phase AC

Ambient Temperature Range: 5°C – 40°C

Optimal Operating Temperature: 15°C – 25°C

Relative Humidity: 40% – 75%

Air Supply Pressure: 0.5 – 0.7 MPa

Product Specifications:

Item	Description	Unit	Value
Worktable	Table Size	mm	1000 × 550
	T-Slot	mm	5 × 18 × 90
	Max. Loading Capacity	kg	800
Travel	X / Y / Z Travel	mm	800 × 550 × 550
	Spindle Nose to Table Surface	mm	120 – 670
	Spindle Center to Column Guideway	mm	550
Feed	Rapid Feed Speed (X/Y/Z)	m/min	48 / 48 / 48
Feed	Cutting Feed Speed (X/Y/Z)	mm/min	2.5 – 12,000
Spindle	Spindle Taper	—	BT40-150
	Spindle Speed	r/min	40 – 8,000 (Belt Type)
	Spindle Motor Power	kW	AC Servo 11
Tool Magazine	Tool Capacity	pcs	24
	Max. Tool Weight	kg	8
	Max. Tool Size	mm	Ø150 × 300
	Tool Change Time	s	3
Accuracy	Positioning Accuracy	mm	±0.005
Accuracy	Repeat Positioning Accuracy	mm	±0.005
Overall Machine	Machine Dimensions (L × W × H)	mm	2300 × 2450 × 2650
Overall Machine	Machine Weight (Approx.)	kg	5500

Standard Configuration:

No.	Item	Description / Specification
1	CNC System	Taiwan SYNTEC 22MA Bus-Type CNC Controller (10.4” Display)
2	Main Motor	Taiwan SYNTEC AC Servo Motor
3	Feed Motors	Taiwan SYNTEC Servo Motors
4	Spindle Unit	Taiwan TAIDA High-Speed, High-Precision Spindle Assembly
5	Ball Screws & Guideways	Taiwan HIWIN Linear Guideways and Precision Ball Screws
6	Tool Magazine	Taiwan FANGGUAN 24-Tool Disc-Type Automatic Tool Changer
7	Work Lamp	Machine Illumination Lamp
8	Spindle Air Blast	Spindle Taper Cleaning Air System
9	Coolant System	Integrated Coolant Circulation System
10	High-Pressure Air Gun	External High-Pressure Cleaning Air Gun
11	Leveling Pads & Bolts	Machine Leveling Pads and Adjustment Bolts
12	Technical Documents	Operation Manual & Technical Files
13	Spindle Taper	BT40-150
14	Signal Tower	Three-Color Warning Light
15	Air Source Processor	Taiwan AIRTAC Pneumatic Filter-Regulator Unit
16	MPG Handwheel	Detachable Manual Pulse Generator
17	Full Enclosure	Complete Safety Enclosure & Splash Guard
18	Electrical Cabinet Cooler	Heat Exchanger Cooling Unit for Electrical Cabinet

Key Components List:

No.	Component & Specification	Brand / Origin
1	CNC Control System	Taiwan SYNTEC 22MA
2	Spindle Unit	Taiwan SYNTEC
3	Spindle Bearings	Germany FAG / Japan NSK (P4 Grade)
4	Ball Screw Bearings	Japan NSK
5	Ball Screws	Taiwan HIWIN Precision Ball Screw (Model 4016)
6	Linear Guideways	Taiwan HIWIN Linear Guideway & Slider
7	Tool Magazine	Taiwan FANGGUAN
8	Lubrication System	Taiwan SHENGXIANG
9	Electrical Cabinet Cooler	QIANGUAN (China)
10	Main Electrical Components	Germany Schneider
11	Coolant Pump	Taiwan NUOKE
12	Couplings	Taiwan HONGWANG
