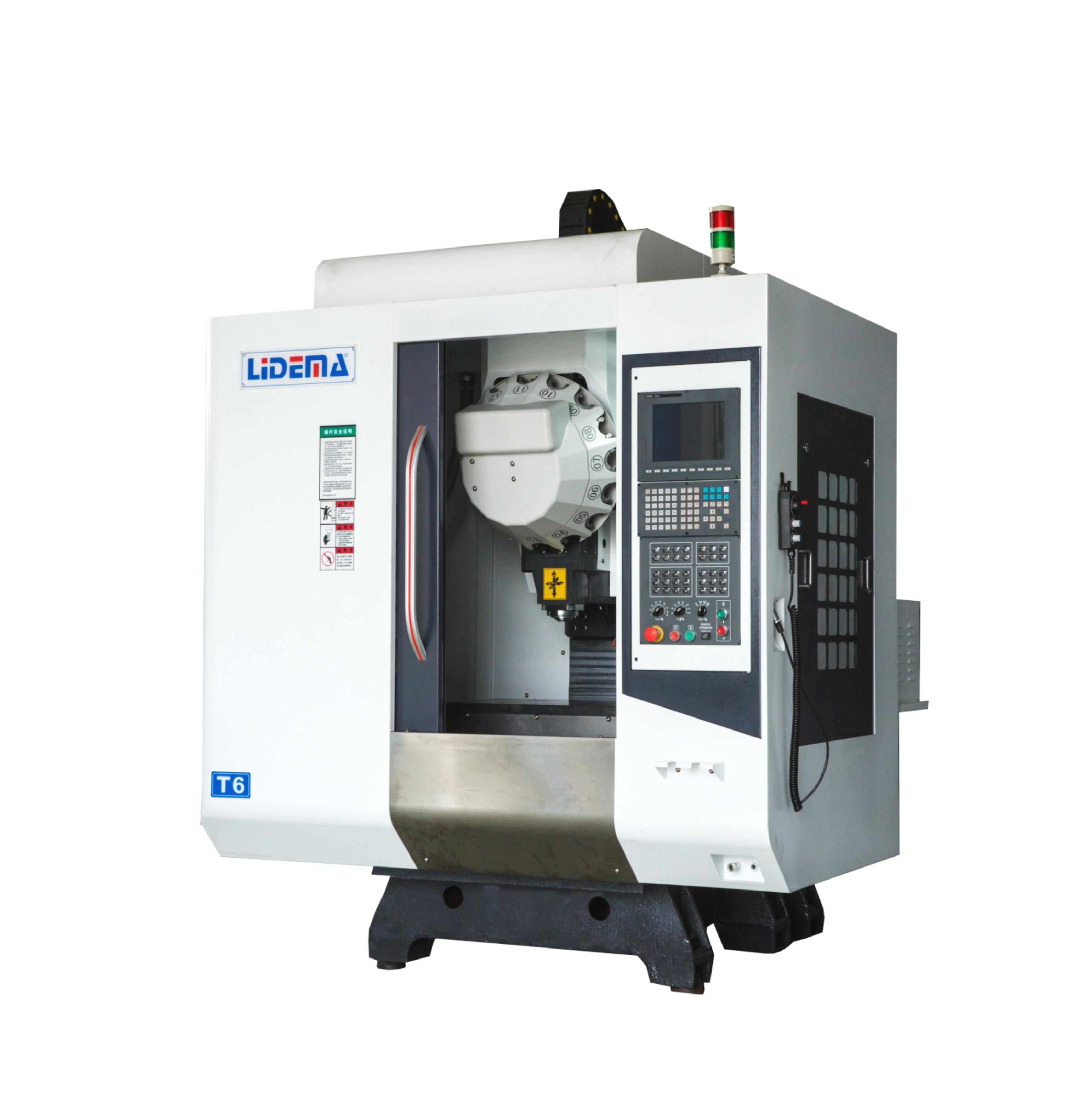

LIDEMA T6 High-Speed Drilling & Tapping Center

Machine Features:

High-Rigidity Frame Design:

Vertical column structure with precision-cast iron components ensures maximum rigidity, durability, and vibration resistance.

Advanced CNC System:

Equipped with Taiwan SYNTEC 22MA bus-type CNC controller, supporting DNC online machining and intuitive operation.

Precision Motion Components:

X/Y axes adopt Taiwan HIWIN 30 mm ball-type linear guideways, Z axis uses a roller-type guideway, providing smooth motion, high sensitivity, and minimal wear.

High-Speed Spindle Assembly:

Fitted with Taiwan DAYUE high-speed spindle, supported by Germany FAG P4 bearings, assembled under constant temperature and dynamically balanced for stability.

Servo Tool Magazine (ATC):

21-tool DAYUE servo-driven carousel tool changer, using cam mechanism for fast, accurate, and noise-free tool change.

Efficient Cooling System:

Large-capacity coolant tank with a 750 W / 20 L/min pump, offering both air and water cooling options with an integrated air gun for cleaning.

Pneumatic System:

PLC-controlled pneumatic system ensures quick and precise tool unclamping, spindle air-blow, and air-cooling functions.

Full Enclosure Protection:

Safety-compliant design prevents coolant splash and chip intrusion, ensuring operator safety and long component life.

Automatic Lubrication:

Centralized lubrication system provides metered oil supply to all moving parts, reducing wear and maintaining smooth motion.

Chip Removal System:

Sloped internal guard design allows chips to slide directly into the chip tray for easy removal and maintenance.

Machine Operating Conditions:

Power Supply: 380V ±10%, 50Hz ±1%, 3-phase AC

Ambient Temperature Range: 5°C – 40°C

Optimal Operating Temperature: 15°C – 25°C

Relative Humidity: 40% – 75%

Air Supply Pressure: 0.5 – 0.7 MPa

Product Specifications:

Standard Configuration:

Key Components List:
