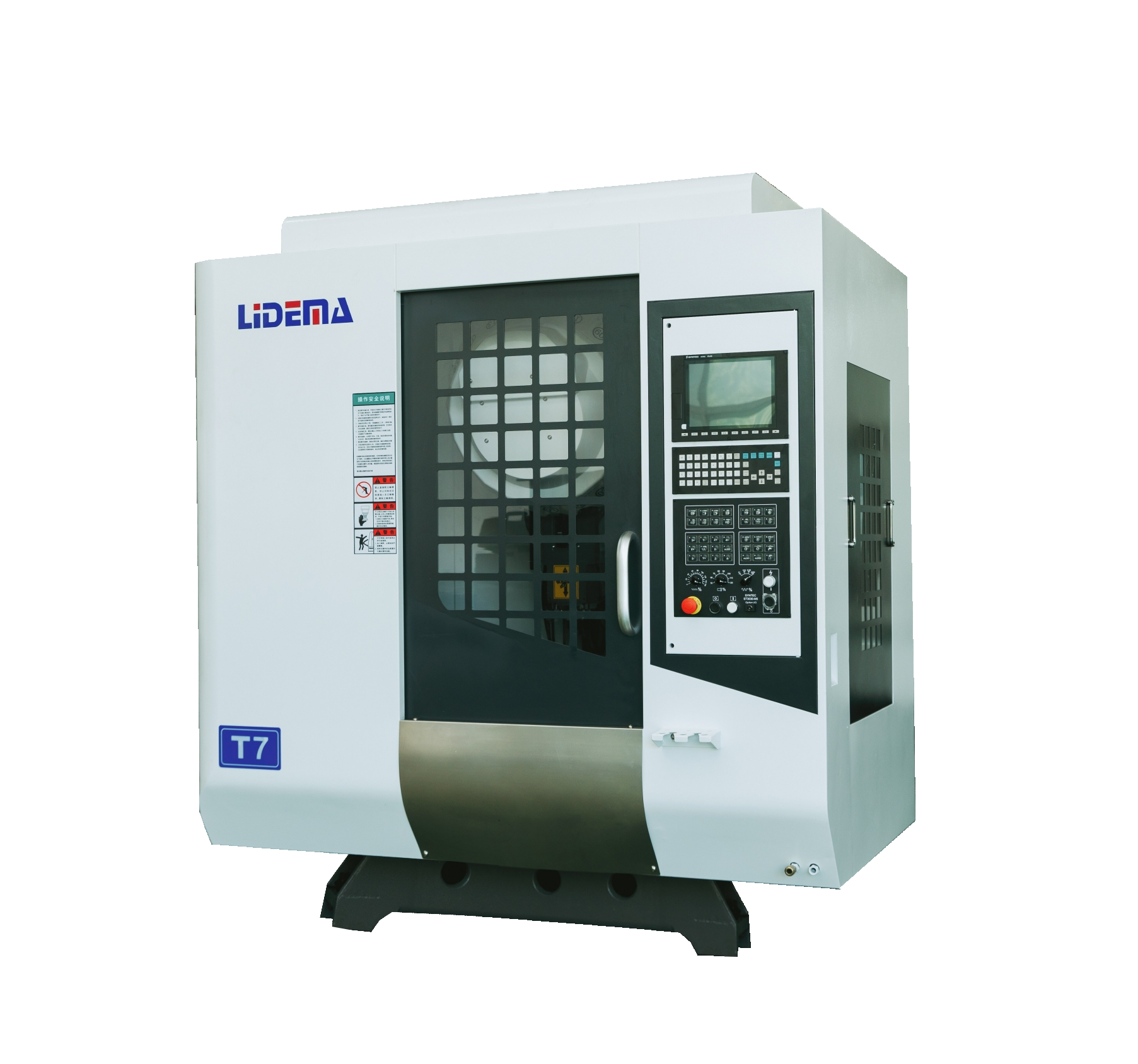

Machine Features:
High-Rigidity Structure:
Vertical frame design with cast-iron components ensures excellent strength, thermal stability, and vibration damping.
Advanced CNC Control:
Fitted with the Taiwan SYNTEC 22MA bus-type CNC system, supporting DNC online machining and intuitive operation.
Precision Motion System:
X/Y axes use HIWIN 30 mm ball-type guideways, Z axis uses a roller-type guideway, ensuring smooth motion and high positioning accuracy.
High-Speed Spindle Assembly:
Taiwan DAYUE high-speed spindle with Germany FAG P4 bearings, assembled under constant temperature for precision and durability.
Servo Tool Changer (ATC):
21-tool DAYUE servo-driven magazine, cam-driven for fast, precise, and low-noise tool change.
Efficient Cooling System:
Equipped with a 750 W / 20 L/min coolant pump, providing both air and water cooling with an integrated air gun for chip cleaning.
Pneumatic and Lubrication Systems:
PLC-controlled pneumatic system and centralized oil lubrication ensure smooth operation and extended machine life.
Full Enclosure & Chip Removal:
Safety-compliant enclosure prevents splash and chip intrusion; sloped interior design allows easy chip removal and cleaning.
Machine Operating Conditions:
Power Supply: 380V ±10%, 50Hz ±1%, 3-phase AC
Ambient Temperature Range: 5°C – 40°C
Optimal Operating Temperature: 15°C – 25°C
Relative Humidity: 40% – 75%
Air Supply Pressure: 0.5 – 0.7 MPa
Product Specifications:
| Item | Description | Unit | Value |
| Worktable | Table Size | mm | 780 × 420 |
| T-Slot | mm | 3 × 14 × 120 |
| Max. Loading Capacity | kg | 300 |
| Travel | X / Y / Z Travel | mm | 700 × 400 × 350 |
| Spindle Nose to Table Surface | mm | 170 – 620 |
| Spindle Center to Column Guideway | mm | 420 |
| Feed | Rapid Feed Speed (X/Y/Z) | m/min | 60 / 60 / 60 |
| Cutting Feed Speed (X/Y/Z) | mm/min | 2.5 – 12,000 |
| Spindle | Spindle Taper | — | BT30 |
| Spindle Speed | r/min | 40 – 12,000 |
| Spindle Motor Power | kW | AC Servo 7.5 |
| Tool Magazine | Tool Capacity | pcs | 16 |
| Max. Tool Diameter | mm | 80 |
| Max. Tool Length | mm | 300 |
| Tool Change Time | s | 2.5 |
| Accuracy | Positioning Accuracy | mm | ±0.005 |
| Repeat Positioning Accuracy | mm | ±0.005 |
| Overall Machine | Machine Dimensions (L × W × H) | mm | 1900 × 2100 × 2200 |
| Machine Weight (Approx.) | kg | 3500 |
Standard Configuration:
| No. | Item | Description / Specification |
| 1 | CNC System | Taiwan SYNTEC 22MA Bus-Type CNC Controller |
| 2 | Main Motor | Taiwan SYNTEC AC Servo Motor |
| 3 | Feed Motors | Taiwan SYNTEC Servo Motors |
| 4 | Spindle Unit | Taiwan DAYUE High-Speed Spindle Assembly |
| 5 | Ball Screws | Taiwan HIWIN Precision Ground Ball Screws |
| 6 | Tool Magazine | Taiwan DAYUE 21-Tool Servo-Type Carousel Magazine |
| 7 | Work Lamp | Machine Illumination Lamp |
| 8 | Spindle Air Blast | Spindle Taper Cleaning Air System |
| 9 | Coolant System | Integrated Coolant Circulation System |
| 10 | High-Pressure Air Gun | External High-Pressure Cleaning Air Gun |
| 11 | Leveling Pads & Bolts | Machine Leveling Pads and Adjustment Bolts |
| 12 | Technical Documents | Operation Manual & Technical Files |
| 13 | Spindle Taper | BT30 |
| 14 | Signal Tower | Three-Color Warning Light |
| 15 | Air Source Processor | Taiwan AIRTAC Pneumatic Filter-Regulator Unit |
| 16 | MPG Handwheel | Detachable Manual Pulse Generator |
| 17 | Full Enclosure | Complete Safety Enclosure & Splash Guard |
| 18 | Electrical Cabinet Cooler | Heat Exchanger Cooling Unit for Electrical Cabinet |
Key Components List:
| No. | Component & Specification | Brand / Origin |
| 1 | CNC Control System | Taiwan SYNTEC 22MA |
| 2 | Spindle Unit | Taiwan SYNTEC |
| 3 | Spindle Bearings | Germany FAG (P4 Grade) |
| 4 | Ball Screw Bearings | Japan NSK |
| 5 | Ball Screws | Taiwan HIWIN |
| 6 | Linear Guideways | Taiwan HIWIN |
| 7 | Tool Magazine | Taiwan DAYUE |
| 8 | Lubrication System | Taiwan SHENGXIANG |
| 9 | Electrical Cabinet Cooler | China Local Brand |
| 10 | Main Electrical Components | France Schneider |
| 11 | Coolant Pump | Taiwan NUOKE |
| 12 | Couplings | Taiwan HONGWANG |
