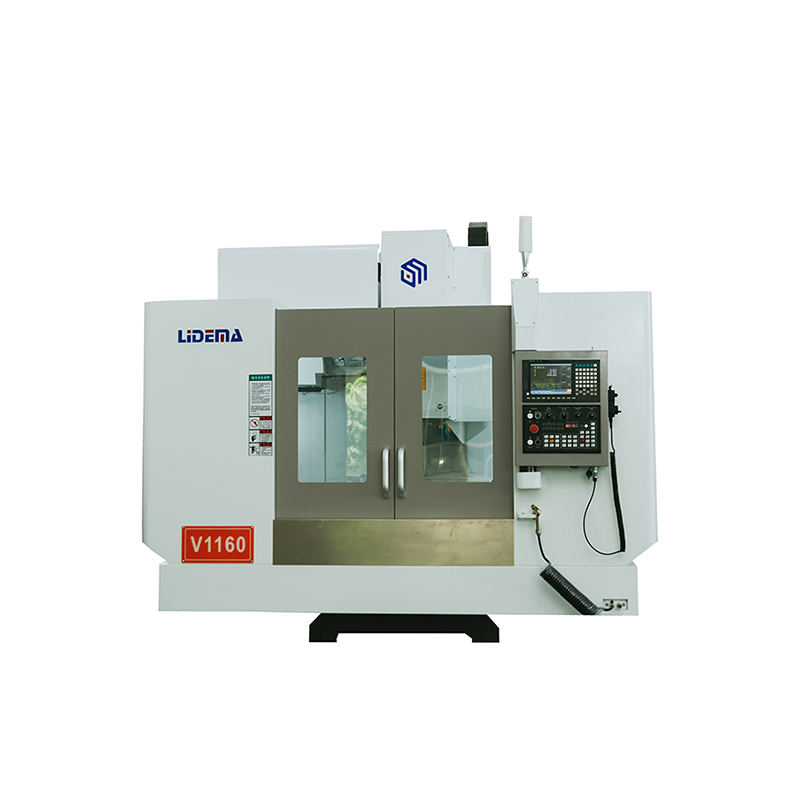

Machine Features:
High-Rigidity Construction:
Vertical column frame made of high-strength cast iron provides superior stiffness, vibration damping, and thermal stability.
Advanced CNC Control:
Equipped with Taiwan SYNTEC 22MA bus-type CNC system featuring full DNC function and easy operation.
Precision Motion System:
X/Z axes adopt HIWIN 45mm extended roller linear guideways (six sliders), ensuring stable movement and precise positioning.
High-Speed Spindle Assembly:
Taiwan DESU high-speed spindle with Germany FAG P4 bearings guarantees accuracy, rigidity, and long service life.
Automatic Tool Changer (ATC):
Taiwan DESU 24-tool disc-type magazine with cam-driven ATC ensures fast, quiet, and reliable tool exchange.
Efficient Cooling & Pneumatic Systems:
Equipped with a 750W / 20L/min coolant pump, dual air/water cooling, air gun cleaning, and PLC-controlled pneumatic unit for smooth automation.
Centralized Lubrication & Full Enclosure:
Automatic oil lubrication ensures reduced wear; safety enclosure prevents coolant splash and chip ingress for clean, reliable operation.
Machine Operating Conditions:
Power Supply: 380V ±10%, 50Hz ±1%, 3-phase AC
Ambient Temperature Range: 5°C – 40°C
Optimal Operating Temperature: 15°C – 25°C
Relative Humidity: 40% – 75%
Air Supply Pressure: 0.5 – 0.7 MPa
Product Specifications:
| Item | Unit | Specification | Brand / Origin |
| Table Size (L × W) | mm | 1200 × 650 | GP Standard Casting |
| X-Axis Travel | mm | 1100 |
| Y-Axis Travel | mm | 600 |
| Z-Axis Travel | mm | 600 |
| Spindle Center to Column Cover | mm | 600 |
| Spindle Nose to Table Surface | mm | 150 – 750 |
| Table T-Slot (Size × Pitch) | mm | 5 × 18 × 100 |
| Lubrication Unit | — | YET-B2 (B2P2) | Taiwan YUXIANG |
| XYZ Ball Screw Size | mm | Ø40 | Taiwan HIWIN |
| XYZ Ball Screw Lead | mm | 12 | Taiwan HIWIN |
| XYZ Linear Guideway Size | mm | 45 (Roller Type) | Taiwan HIWIN |
| Three-Axis Bearings | set | NSK-3062 | Japan NSK |
| Positioning Accuracy | mm | ±0.005 / 300 | GP Standard |
| Repeat Positioning Accuracy | mm | ±0.005 / 300 | GP Standard |
| Spindle Type | — | BT40 – Ø150 | Taiwan |
| Spindle Speed | rpm | 8,000 (Belt Type) | Taiwan |
| Spindle Motor Power | kW | 11 – 15 | Taiwan SYNTEC |
| Tool Changer Type | — | Disc Type | Taiwan DESU |
| Tool Capacity | pcs | 24 (BT40) | — |
| Coupling | set | Ø24 – Ø35 × L90 mm | Taiwan HONGWANG |
| Rapid Feed (X/Y/Z) | m/min | 48 / 48 / 48 | — |
| Chip Removal Method | — | Rear Discharge | — |
| Max. Table Load | kg | 800 | — |
| Machine Weight (Approx.) | kg | 6,800 | — |
| Machine Dimensions (L × W × H) | mm | 2800 × 2750 × 2750 | China Local Brand (Full Enclosure Sheet Metal) |
