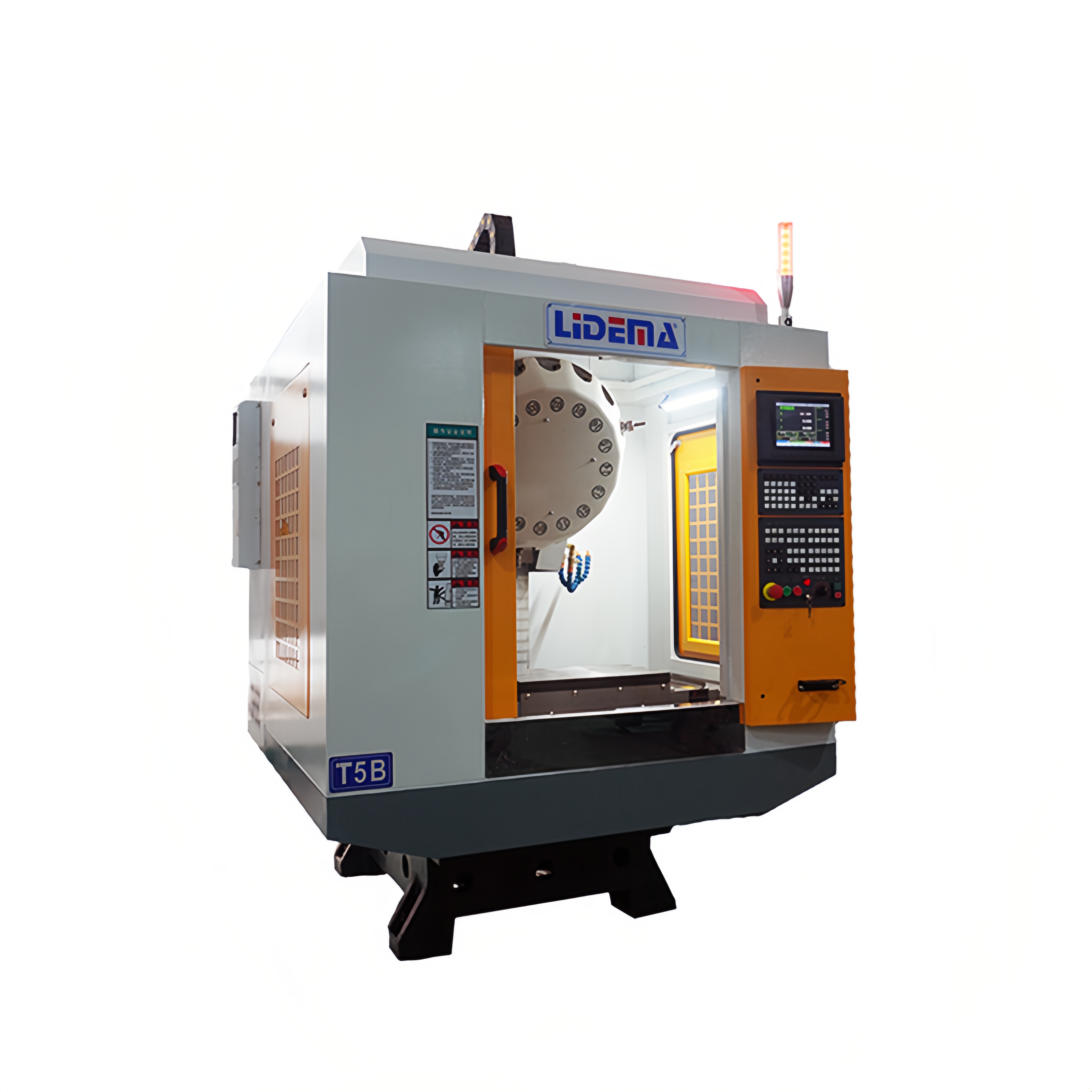

LIDEMA T5B Vertical Drilling & Tapping Center

Machine Features:

High-Rigidity Structure:

Vertical frame design with fixed column and precision-cast iron components ensures superior strength, rigidity, and thermal stability.

Advanced CNC System:

Equipped with Taiwan SYNTEC M5800D bus-type controller, featuring full DNC online machining, CF interface, and easy operation.

Precision Motion Drive:

X/Y/Z axes use SHAC 25/30 mm linear guideways and ball screws directly coupled with servo motors, enabling high positioning accuracy and low friction motion.

High-Speed Spindle Assembly:

Fitted with Taiwan TDEHONG high-speed spindle, using FAG/SKF P4 bearings, providing high precision, rigidity, and reliability for continuous operation.

Automatic Tool Changer (ATC):

16-tool carousel-type ATC by Taiwan ETech, driven by roller-cam mechanism for fast, smooth, and noise-free tool change.

Efficient Cooling System:

Large-capacity coolant tank and high-flow pump (120 W / 20 L per min) with selectable air/water cooling and built-in cleaning air gun.

Pneumatic Control:

Centralized air unit with PLC-controlled solenoid valves for tool release, spindle air-blow, and air cooling, ensuring fast and reliable response.

Full Enclosure Protection:

Safety-compliant enclosure prevents coolant splash and chip leakage while maintaining operator safety and a clean appearance.

Automatic Lubrication System:

Centralized micro-oil lubrication ensures even oil distribution to all linear and ball-screw surfaces, reducing wear and maintaining precision.

Chip Removal Design:

Sloped inner guards allow chips to fall directly into the chip tray for easy collection and disposal, ensuring smooth maintenance.

Machine Operating Conditions:

Power Supply: 380V ±10%, 50Hz ±1%, 3-phase AC

Ambient Temperature Range: 5°C – 40°C

Optimal Operating Temperature: 15°C – 25°C

Relative Humidity: 40% – 75%

Air Supply Pressure: 0.5 – 0.7 MPa
