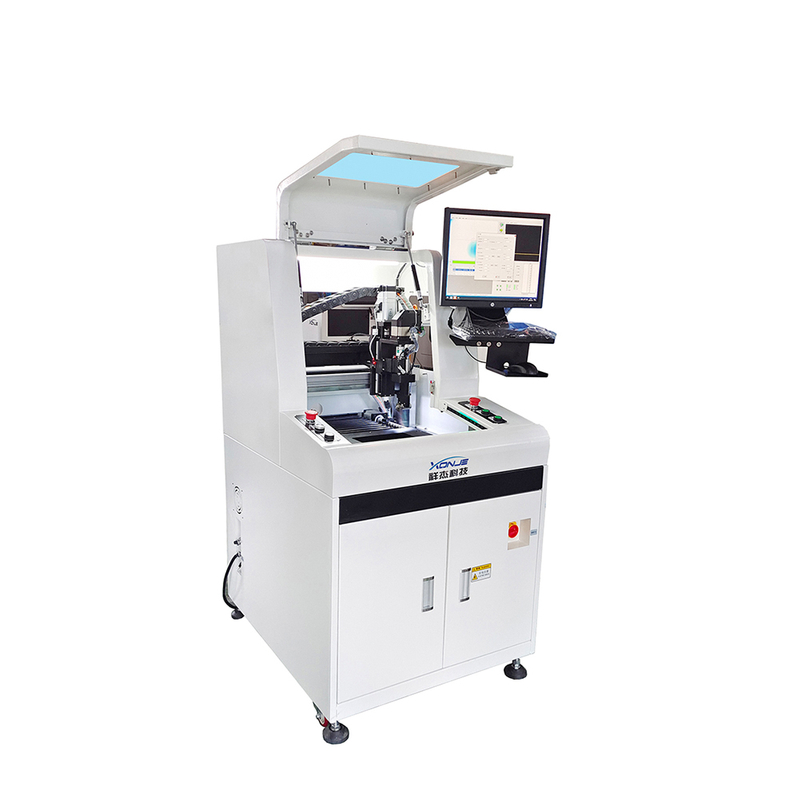

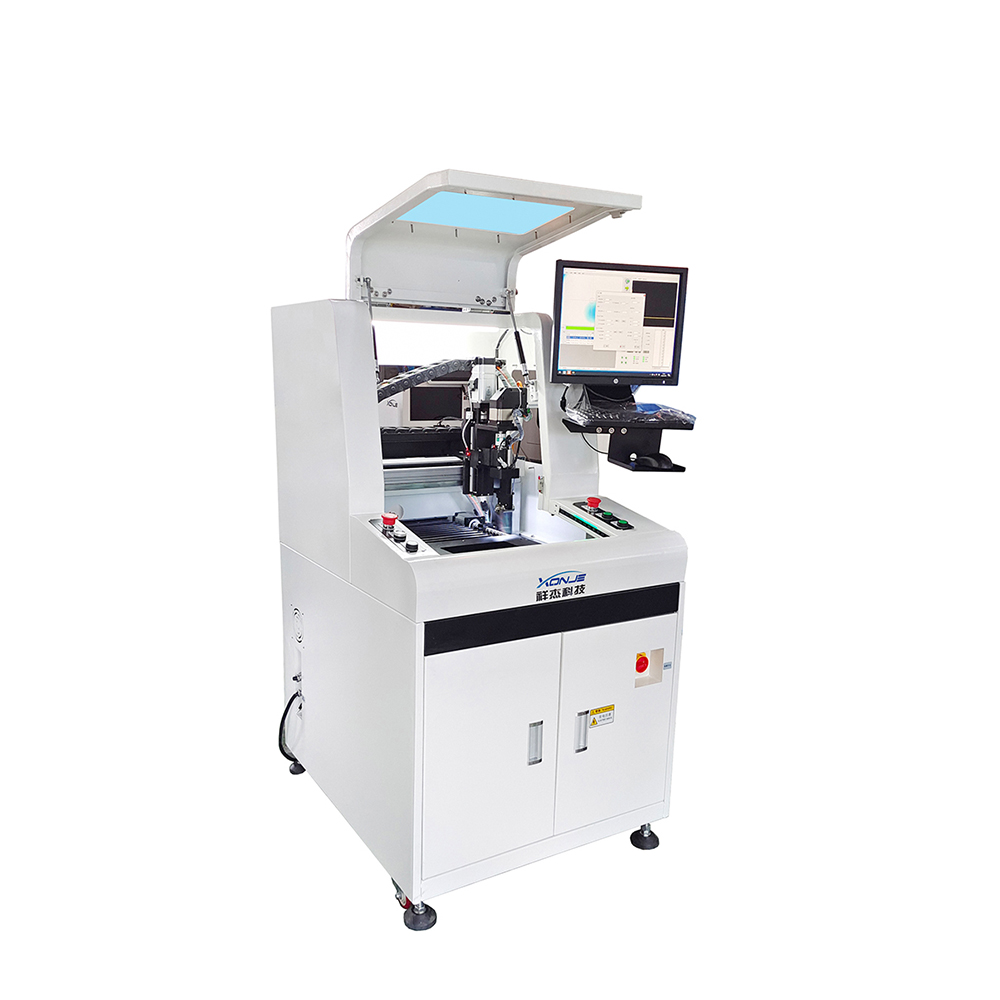

Front view of XONJE XJ-J500 single station saw blade PCB cutting machine with visual alignment system

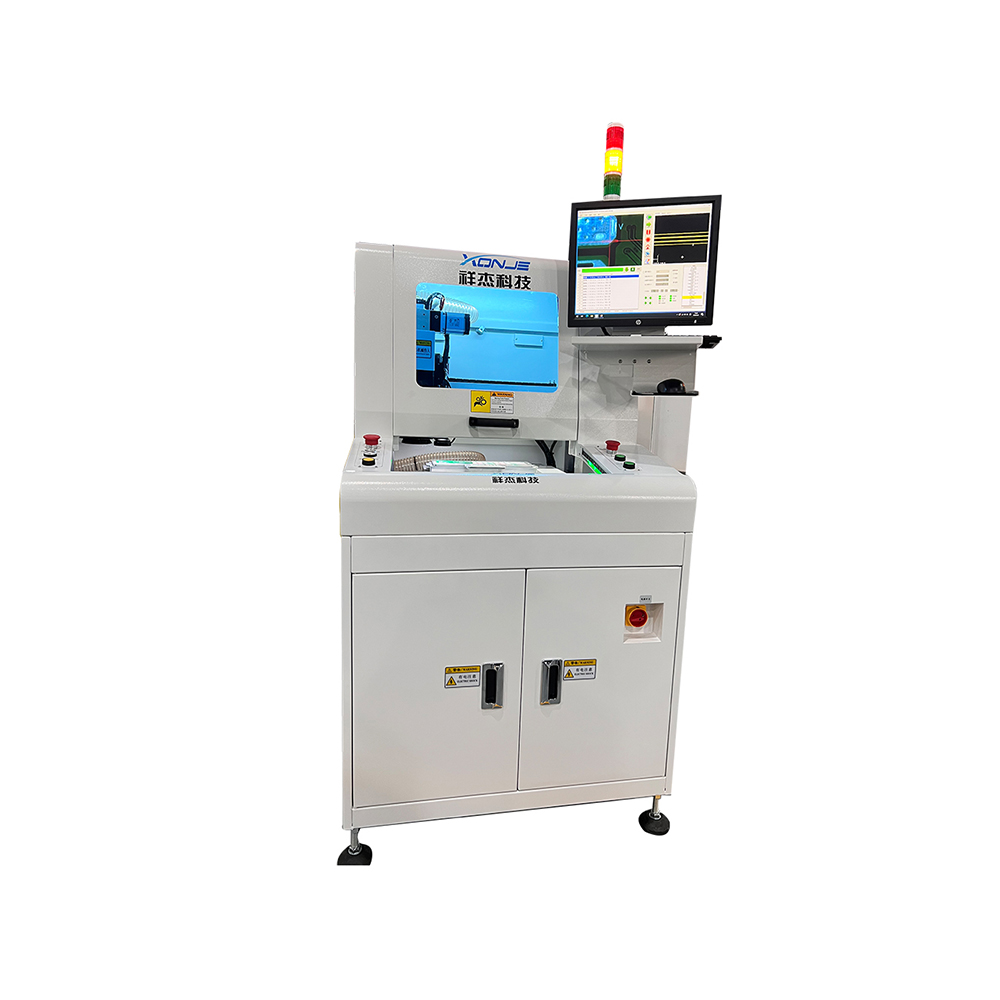

Precision saw blade PCB separator with CCD visual positioning and low-stress cutting for V-slot boards

XONJE XJ-J500 Single Station Saw Blade Splitting Machine

Suitable for V-slot PCB slitting, especially for PCB slitting of parts across V-slots; Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1. No stress cutting, with a sub plate stress of around 200MIC.

2. CCD visual positioning, Mark point correction system.

3. Simple operation and fast programming.

4. The cutting surface is smooth, flat, and bright.

5. Safety grating and two handed button device.

6. Suitable for cutting V-slot PCBs, perfectly solving the problem of cross V-slot splitting of components.

Product Parameter:

Parameter	Specification
Working mode	Offline (manual loading/unloading, automatic segmentation by splitting machine)
Number of workbenches	Single head, single station, rotatable workbench
Control method	PC control + servo motor
MES function	Supported (optional)
Scan function	Supported (optional)
Screw guide rail	C5 grinding level
Cutting speed	0–3000 RPM
Plate thickness	0–6 mm
Partition area	300 × 300 mm
Splitting accuracy	±0.1 mm
Dust collection method	Upper suction / 3P
Working voltage	AC 380V
Working pressure	0.4–0.7 MPa
Power	5 kW
Boundary dimensions	850 mm × 1200 mm × 2850 mm
Weight	600 kg
