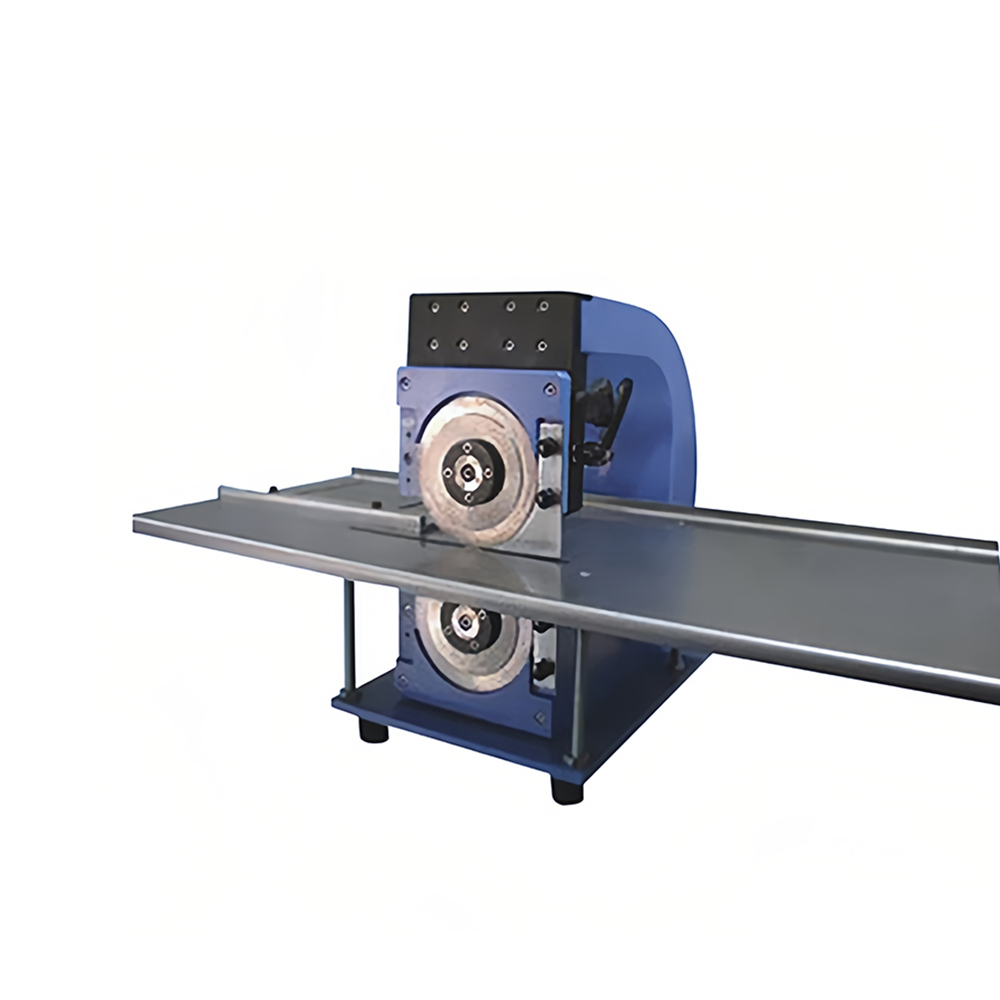

XONJE XJVC-1A Double Circular Knife Splitting Machine
XONJE XJVC-1A Double Circular Knife Splitting Machine XONJE XJVC-1A Double Circular Knife Splitting Machine

loading

XONJE XJVC-1A Double Circular Knife Splitting Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Suitable for cutting PCB fiberboard, aluminum substrate, copper substrate, and ceramic plate; Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc.
SKU:
Availability:
Quantity:

Product Features:

1. The body is made of aluminum alloy cast in a lightweight and integrated manner, which does not take up space and is easy to operate.


2. The speed is fast and adjustable, with up to 1000 tracks per hour.


3. The distance between the upper and lower knives can be accurately adjusted to solve the depth problem of V-CUT.


4. It can effectively reduce the internal stress generated during plate cutting to the minimum and avoid tin cracking.


5. The upper and lower circular knives can be precisely adjusted, and any PCB board and aluminum substrate with V-CUT can be suitable for cutting on this machine.


6. The motor is a supporting service for famous brands in Shanghai, and the overall maintenance is simple.


7. The cutting tools are made of imported steel from Sweden and customized by a professional knife making company in Taiwan. They are wear-resistant, have a long service life, and can be repeatedly ground and used.


8. The surface spraying of powder baking paint is a special process that is not easy to peel off.


9. According to the length of the PCB, stainless steel platforms of different lengths can be made for easy operation.


Product Parameter:

Splitting lengthInfinite length
Splitting speed0-400mm/s
Plate thickness0.6-3.5mm
Using voltage220V
Machine weight45 kg
Host size420*280*400mm
1m platform size1000*280*400mm
2.4m platform size2400*280*400mm
