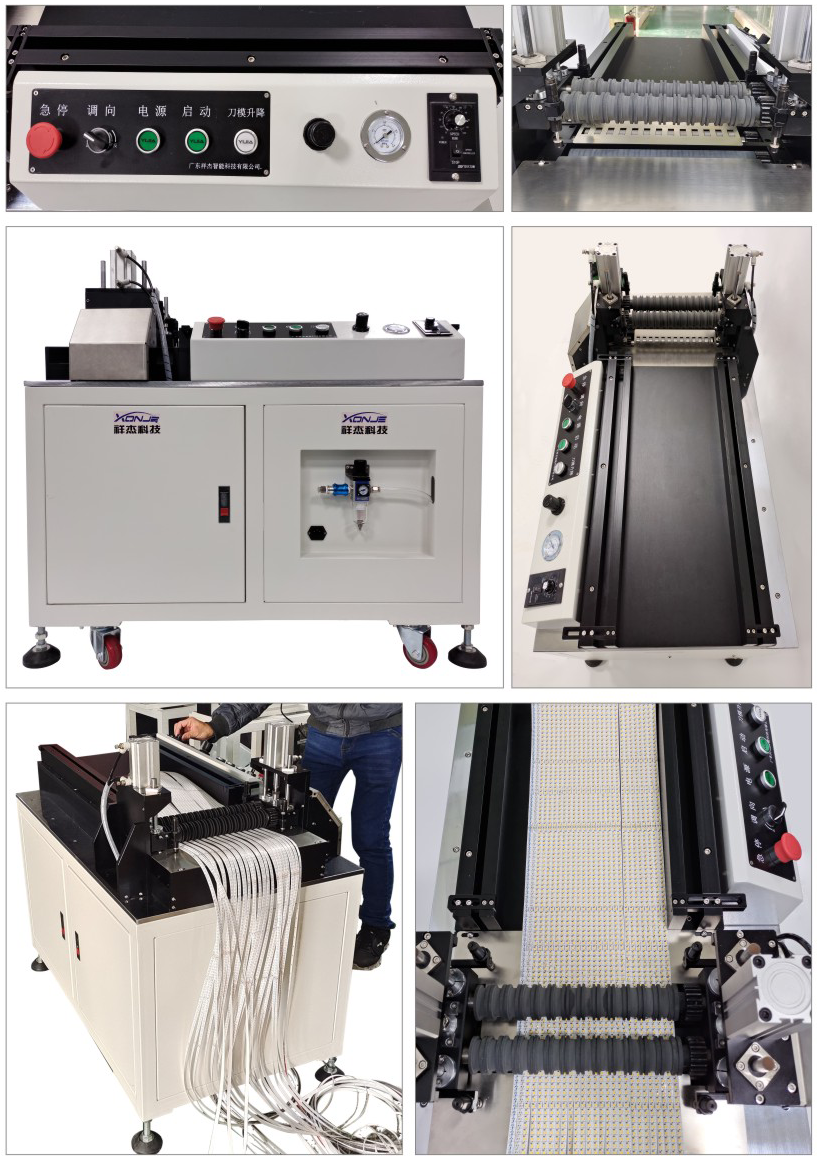

Product Features:
1. Adopting touch screen operation, PLC control, precision guide rail and stepper motor transmission.
2. The entire FPC light strip assembly board achieves fully automatic division, simple operation, convenient use, and high efficiency.
3. The use of a knife feeding action in the walking board splitting mode ensures low stress and ensures that the FPC circuit board will not cause various hidden injuries during the splitting process.
4. Adopting touch screen display with automatic counting function, visually displaying the output.
5. The cutting tools are made of high-quality high-speed steel imported from Germany. After testing and comparison, the durability market is the highest.
6. Easy to operate, ordinary employees can operate the machine with simple guidance, and can achieve fully automatic unmanned production according to the requirements of the production line.
7. The light strip is cut in one go, and the cutting time for a 6000mm long light plate is within 60 seconds.
8. Number of Flat noodles divided each time: 1-30 blades; The minimum board width is 6MM.
9. Safety eye protection ensures safe production.
Product Parameter:
| Parameter | Specification |
| Working voltage | 220V AC |
| Splitting length | Infinite |
| Splitting width | 300 mm |
| Cutting speed | 0–6000 mm/min |
| Weight | 280 kg |
| Overall dimensions | 1000 mm (L) × 680 mm (W) × 1000 mm (H) |
