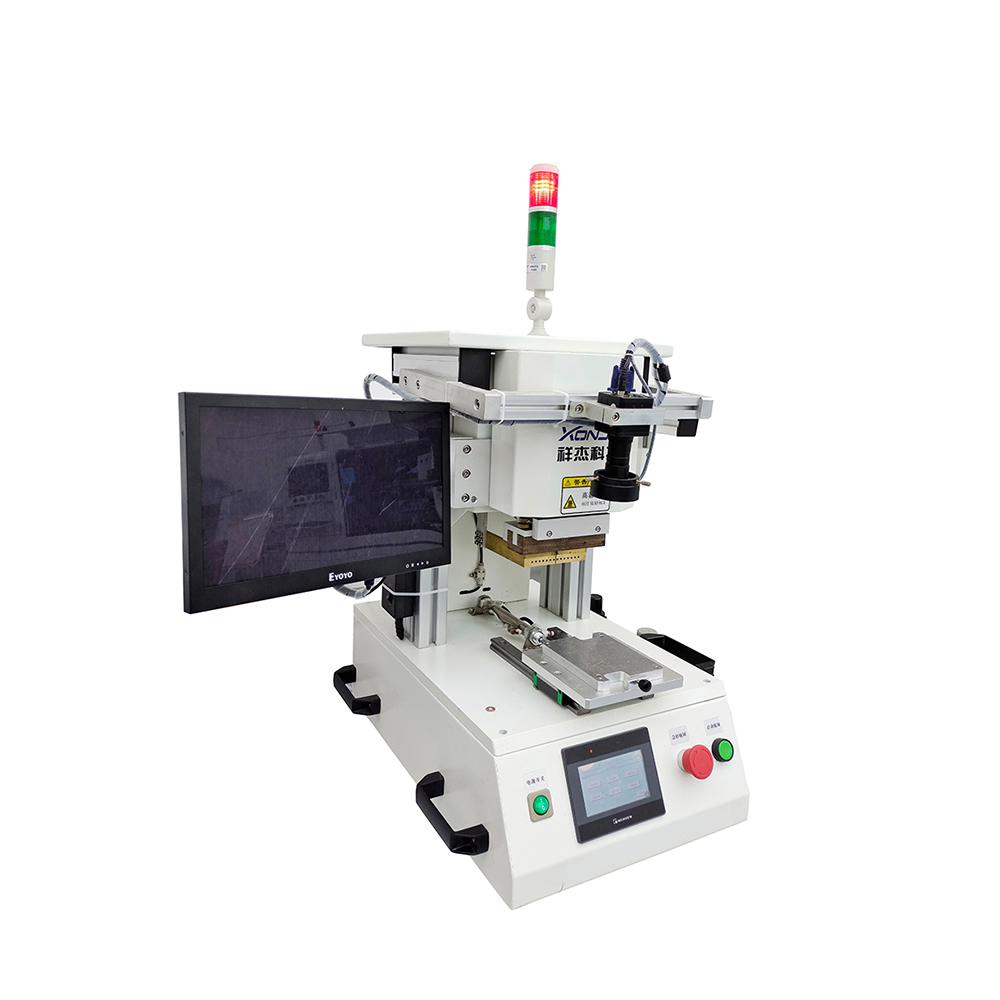

Front view of XONJE XJPP-1A automatic pulse welding machine with digital temperature control and vacuum alignment function
Front view of XONJE XJPP-1A automatic pulse welding machine with digital temperature control and vacuum alignment function Front view of XONJE XJPP-1A automatic pulse welding machine with digital temperature control and vacuum alignment function

loading

XONJE XJPP-1A Automatic Pulse Welding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Suitable for hot pressing welding between high-density FPC, FFC, PCB, connectors, ink cartridge chip welding, plastic hot pressing riveting and other processes. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, printers, LED, etc
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1. Temperature CNC, clear and precise;


2. Equipped with a digital pressure switch, which can preset the pressure range;


3. Pressure start timing, more accurate hot pressing time;


4. Unique material welding head ensures even product pressure;


5. Equipped with vacuum function, it is easier to adjust alignment;


Product Parameter:

ParameterSpecification
Positioning fixture1 set
Working area100 × 150 mm
Temperature accuracy±2 °C
Temperature setting0–500 °C
Hot pressing time0–99 s
Welding head materialRare metal
Working voltageAC 220V
Working pressure0.5–0.7 MPa (dry air source)
Weight65 kg
Overall dimensions550 mm (L) × 640 mm (W) × 630 mm (H)


Previous:
Next:
automatic pulse welding machine fpc hot press welder pcb bonding equipment
KEEP IN TOUCH WITH US
Leave a Message
KEEP IN TOUCH WITH US

Related Products

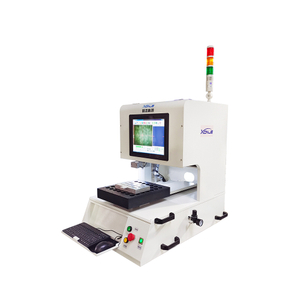

Front view of XONJE XJ-L300Z desktop vision PCB router cutting machine with CCD-assisted path programming
XONJE XJ-L300Z Desktop Visual Milling Cutter Splitting Machine

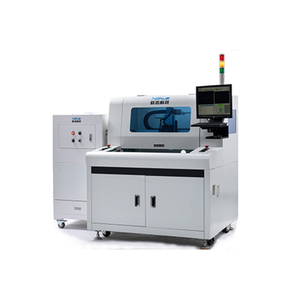

Front view of XONJE XJ-J520 double station automatic PCB saw cutting machine with CCD visual positioning
XONJE XJ-J520 Double Station Saw Blade Splitting Machine

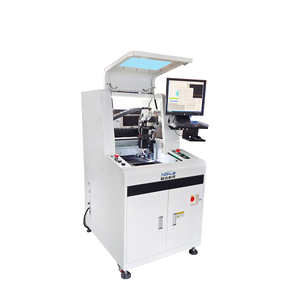

Front view of XONJE XJ-J500 single station saw blade PCB cutting machine with visual alignment system
XONJE XJ-J500 Single Station Saw Blade Splitting Machine

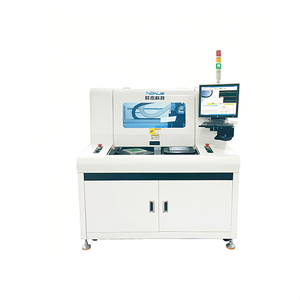

Front view of XONJE XJ-F800 dual spindle composite PCB router for V-cut and stamp-hole panel separation
XONJE XJ-F800 Composite Splitter

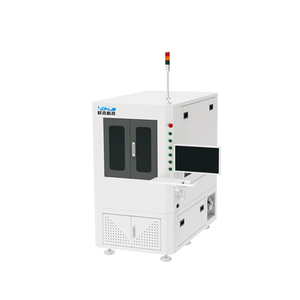

Front view of XONJE XJ-E500A UV laser cutting machine for high-precision FPC and PCB depaneling applications
XONJE XJ-E500A FPC Laser Splitting Machine
Front view of XONJE XJVD-1C hook knife PCB cutting machine for aluminum and fiberboard depaneling applications
XONJE XJVD-1C Hook Knife Splitting Machine
Front view of XONJE XJPP-5A double head multi station pulse welding machine with large working area and CNC temperature system
XONJE XJPP-5A Double Head Multi Station Pulse Welding Machine
Front view of XONJE XJPP-3A double head pulse welding machine with dual workstation layout and CNC temperature control
XONJE XJPP-3A Double Head Pulse Welding Machine
Front view of XONJE XJPP-2F floor turntable pulse welding machine with dual rotary workstations and CNC temperature control
XONJE XJPP-2F Floor Turntable Pulse Welding Machine
Front view of XONJE XJPM-2A plastic hot riveting machine with touch screen and precision temperature control system
XONJE XJPM-2A Plastic Hot Riveting Machine
Front view of XONJE XJV-2D knife splitting machine with sliding circular blade and fixed base for high-precision PCB cutting
XONJE XJV-2D Knife Splitting Machine
Front view of XONJE XJV-1S electric C-type PCB splitter with adjustable circular blades and compact structure
XONJE XJV-1S Electric C-type Splitter
Front view of XONJE XJPP-6A online multi-head pulse welding machine with CCD alignment and programmable temperature control
XONJE XJPP-6A Online Multi Head Pulse Welding Machine
Front view of XONJE XJPP-3AB multifunctional pulse welding machine with programmable temperature control and multi-station design
XONJE XJPP-3AB Multifunctional Pulse Welding Machine
Front view of XONJE XJPP-1S split pulse welding machine with CNC temperature control, PLC interface, and vacuum alignment system
XONJE XJPP-1S Split Pulse Welding Machine
Front view of XONJE XJPP-1F servo pulse welding machine with CNC temperature control and servo positioning system
XONJE XJPP-1F Servo Pulse Welding Machine

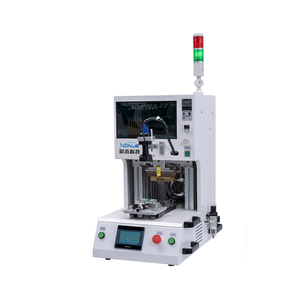

Front view of XONJE XJPP-1AN automatic hot press welding machine with CNC temperature control and vacuum-assisted alignment system
XONJE XJPP-1AN Automatic Pulse Welding Machine

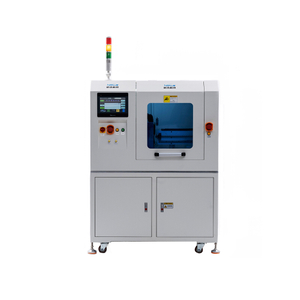

Front view of XONJE XJ-Z200 inline PCB cutter with automatic feeding, V-cut compatibility, and microcomputer control system
XONJE XJ-Z200 Online Knife Splitting Machine

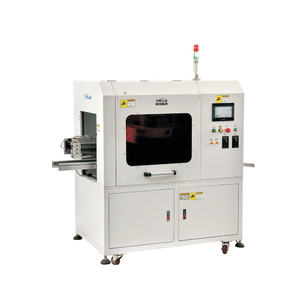

Front view of XONJE XJVC-12A dual-axis inline PCB cutting machine performing automatic V-slot separation with servo precision control
XONJE XJVC-12A Online V-Slot Dual Direction Splitting Machine

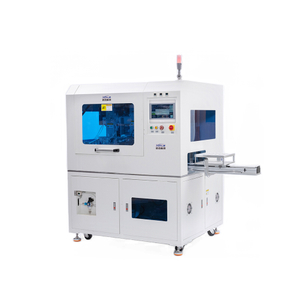

Front view of XONJE XJVC-10A inline rotary table PCB router performing dual-axis V-groove cutting with automatic loading and unloading
