Product Features:

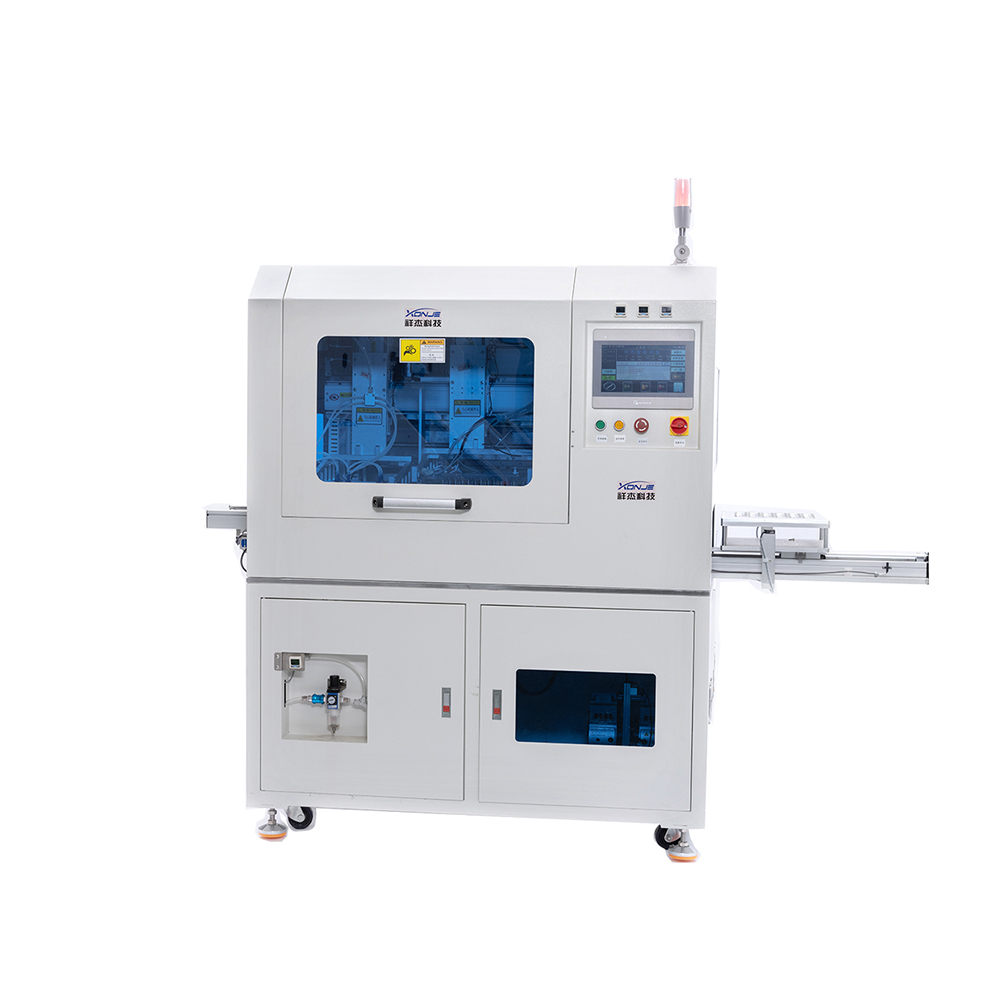

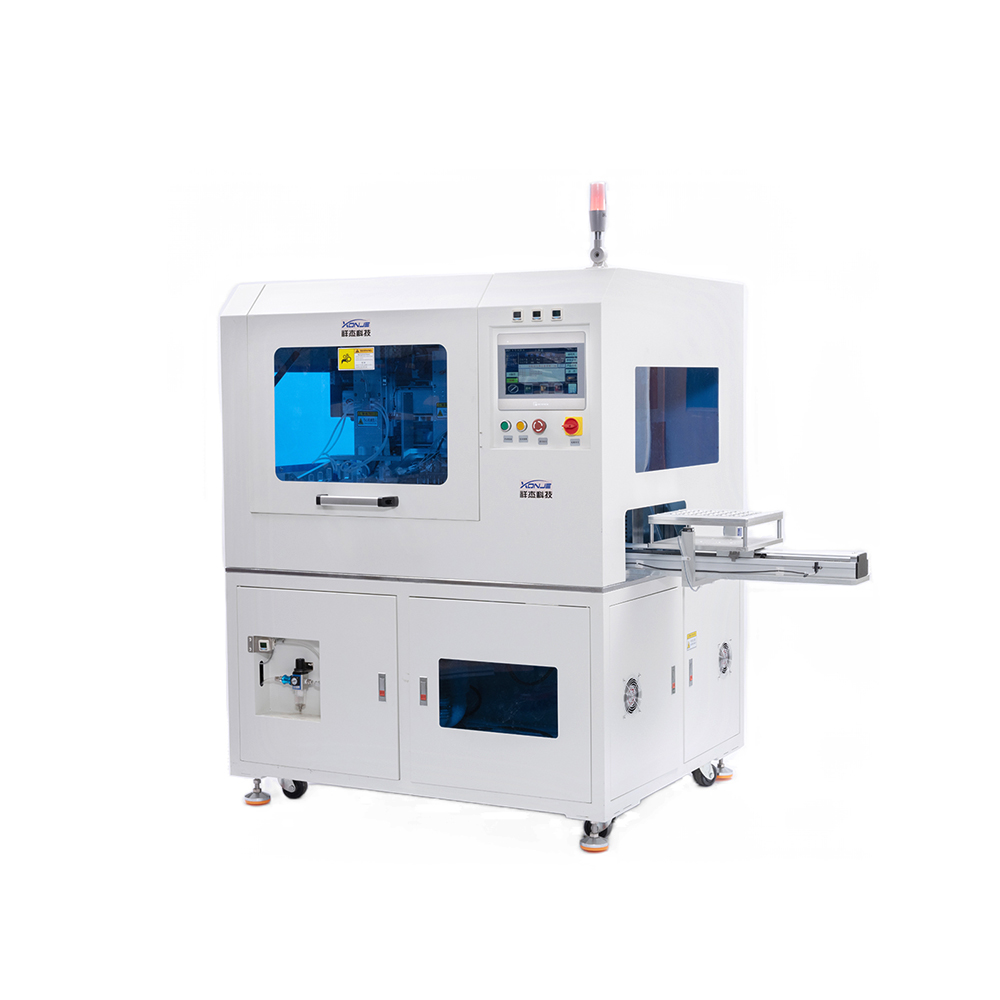

1. A machine is equipped with a lower cutting die module, and the PCB board is sent out to the predetermined track through the upper board mechanism; Move the robotic arm over and use a vacuum nozzle to transport the PCB board onto the cutting machine's cutting die.
2. After placing the PCB on the lower knife mold module; Move to the cutting position, and the circular knife on the machine will translate and cut the PCB board. After the translation and cutting are completed, Move the knife mold module below to the cutting position again; Until the horizontal plate is finely rotated, the hollow platform automatically rotates by 90 degrees to cut the vertical plate.
3. After the machine finishes cutting the PCB, the knife mold and knife group exit; The board picking robot moves over and sucks up the cut PCB board and the waste edge of the board at the same time,
Move to the waste box and place the waste, then translate it to the material tray on the receiving mechanism and place the product on the transportation line.
4. There is an industrial vacuum cleaner under the machine cutting blade mold to remove PCB dust. Work in this cycle.
Note: The cut small PCB boards can be automatically placed in the material box (tray, or directly placed on the assembly line) according to customer requirements and transported by the assembly line.
Product Parameter:
| Parameter / Feature | Specification / Description |
| Application | Suitable for PCB board splitting after plug-in |
| Automation Features | Automatic feeding, automatic cutting, automatic plate collection |
| Parameter Settings | Adjustable parameters ensure continuous feeding and splitting |
| Main Transmission | Precision stepper motors and SMC pneumatic components, high repeat positioning accuracy |
| Control System | PLC + touch screen control, simple and convenient interface |
| Working voltage | 220V, 50Hz, 1800W |
| Efficiency | 15s/pcs (150 × 150 mm, 8-blade cutting as reference) |
| Safety | Work area protected by safety gratings |
| Overall dimensions | 1350 mm (L) × 1200 mm (W) × 1800 mm (H) |
| Weight | 600 kg |
| Working air pressure / pipe diameter | >0.6 MPa / 8 mm |
| Min. distance between parts & cutting line | ≥1.5 mm |
| Max. & Min. board size | Max: 300 × 250 mm, Min: 12 × 12 mm |
| Suction cup requirement | At least one side of a single small board ≥10 × 10 mm |
| Plate inlet adjustment | Direct parameter input, automatic adjustment |
| Max. component height | Reverse side: ≤20 mm, Front side: ≤35 mm |
| Splitting blade | Imported from Japan, high-speed steel, angle: 10°–30° (optional), service life: 5 million cuts |
| Die accuracy | 0.1 mm |
| Splitting speed | 0–800 mm/s |
| Knife mold base movement | Servo system + screw guide rail |
| Robotic arm movement | Stepper motor + guide rail + belt transmission |
| Vacuum suction | 1500W vacuum suction under blade group |
| Panel thickness | 0.6–3.5 mm |
| Misoperation protection | Triple protection: grating sensors + software |
| Power/gas off protection | Yes |
| Self-inspection functions | Startup monitoring, capacity monitoring, fault detection, auto troubleshooting |
