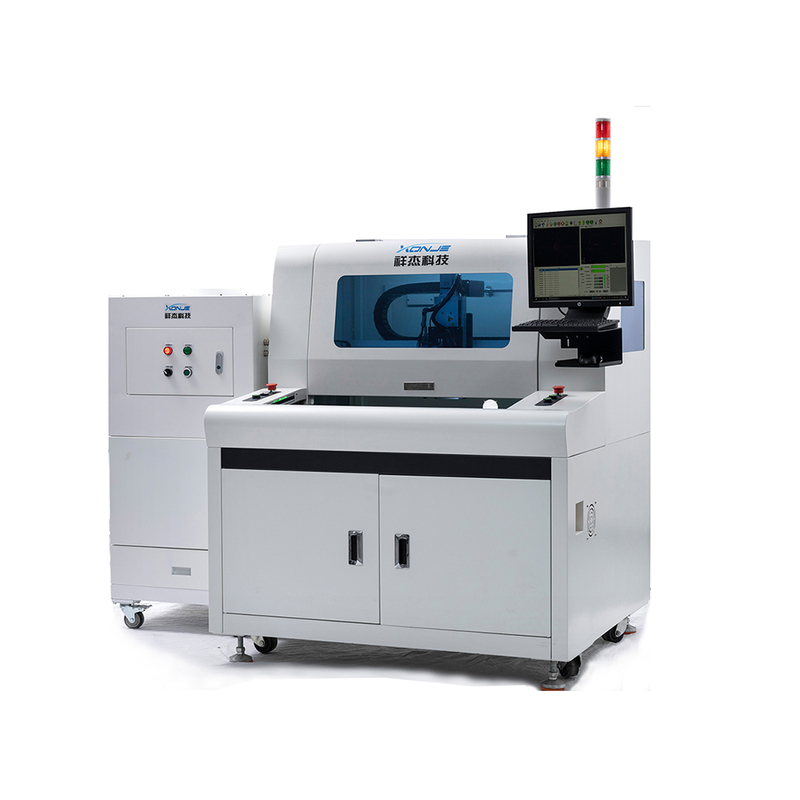

Product Features:

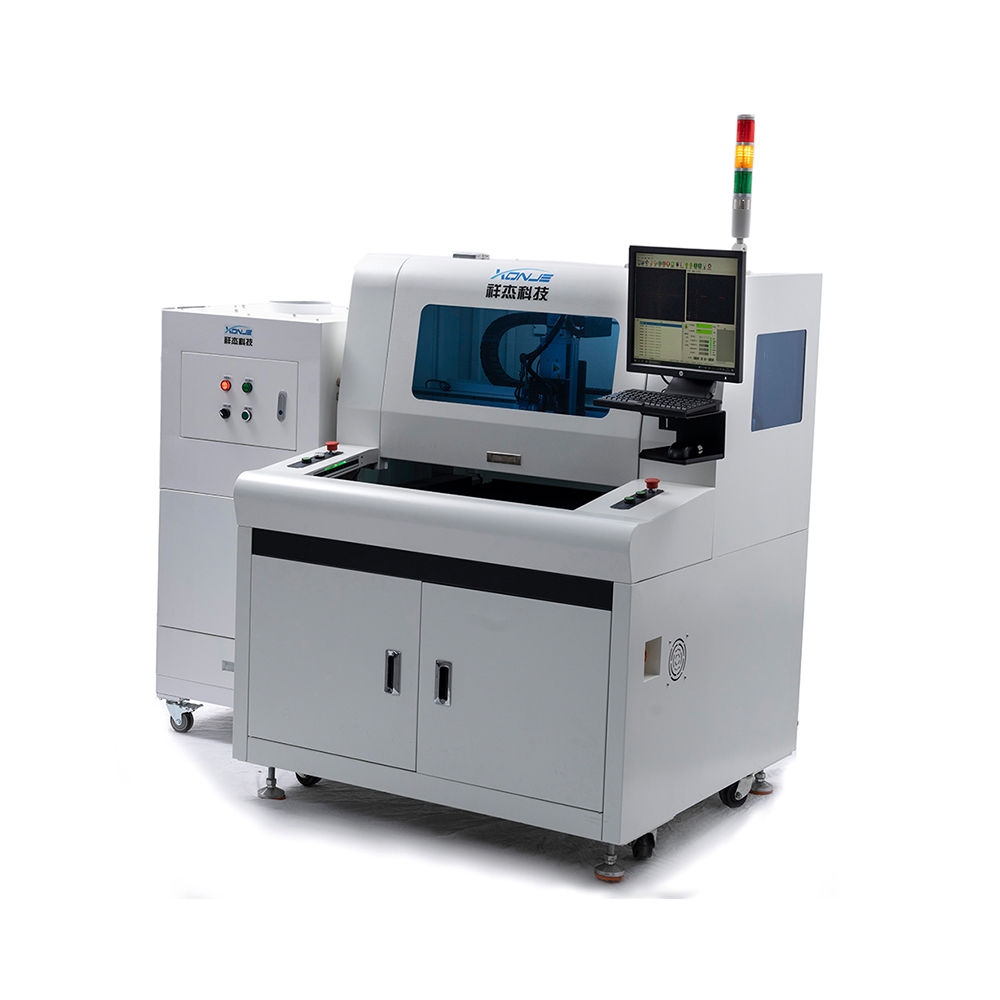

1: High-Efficiency Dual-Platform Design
Utilizes two servo-driven platforms for upper and lower PCB exchange, reducing machine idle time and significantly improving production efficiency and quality.

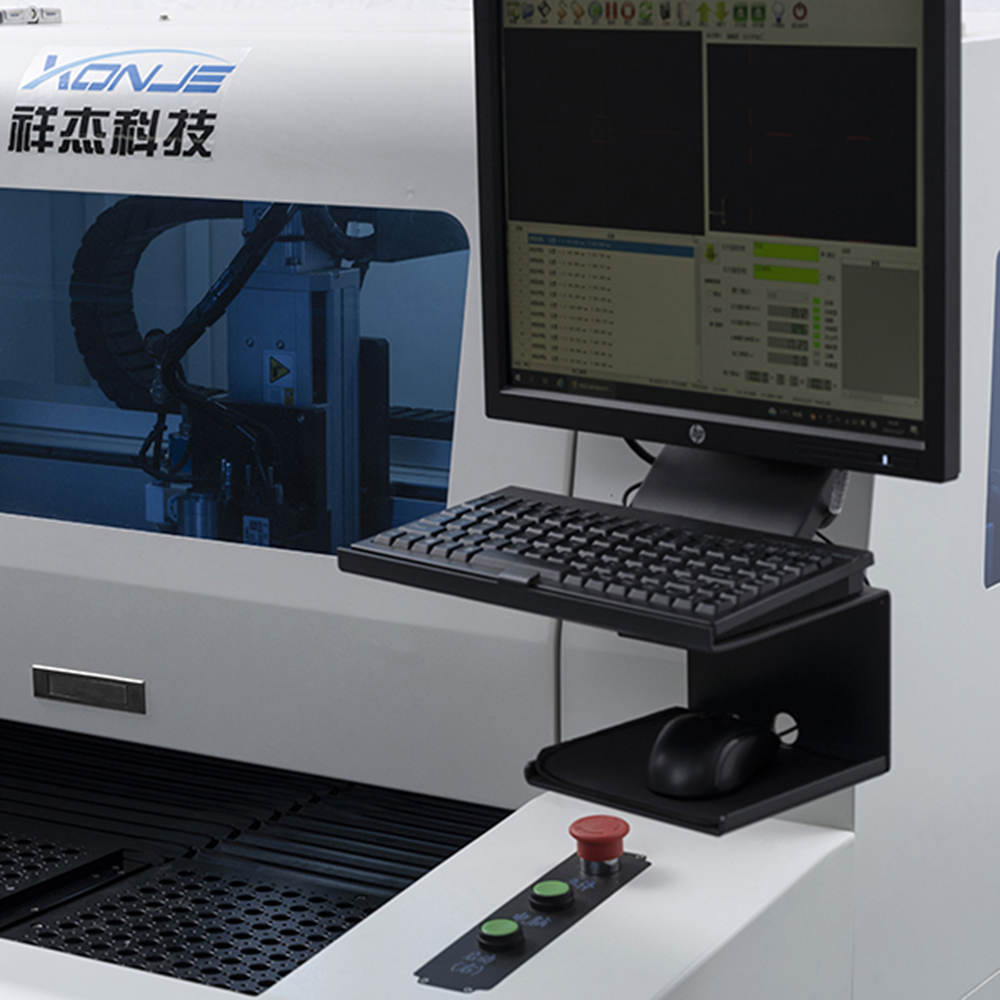

2: CCD-Assisted Path Programming
WIN7 system with high-pixel CCD enables intuitive teaching, editing, single-step modification, and simulation of cutting paths for greater precision.
3: MAKE Compensation & Multi-Window Programming
Equipped with MAKE compensation, large/medium/small windows, and intuitive rectangular box alignment for more accurate and efficient programming.
4: Automatic Geometric Alignment
MAKE geometric alignment with automatic grabbing ensures fast response, precise positioning, and independent parameters for each workstation.
5: Higher Performance vs. Traditional 3-Axis Machines
Delivers faster response, higher efficiency, greater parameter independence, and improved cutting accuracy compared to conventional systems.
Product Parameter:

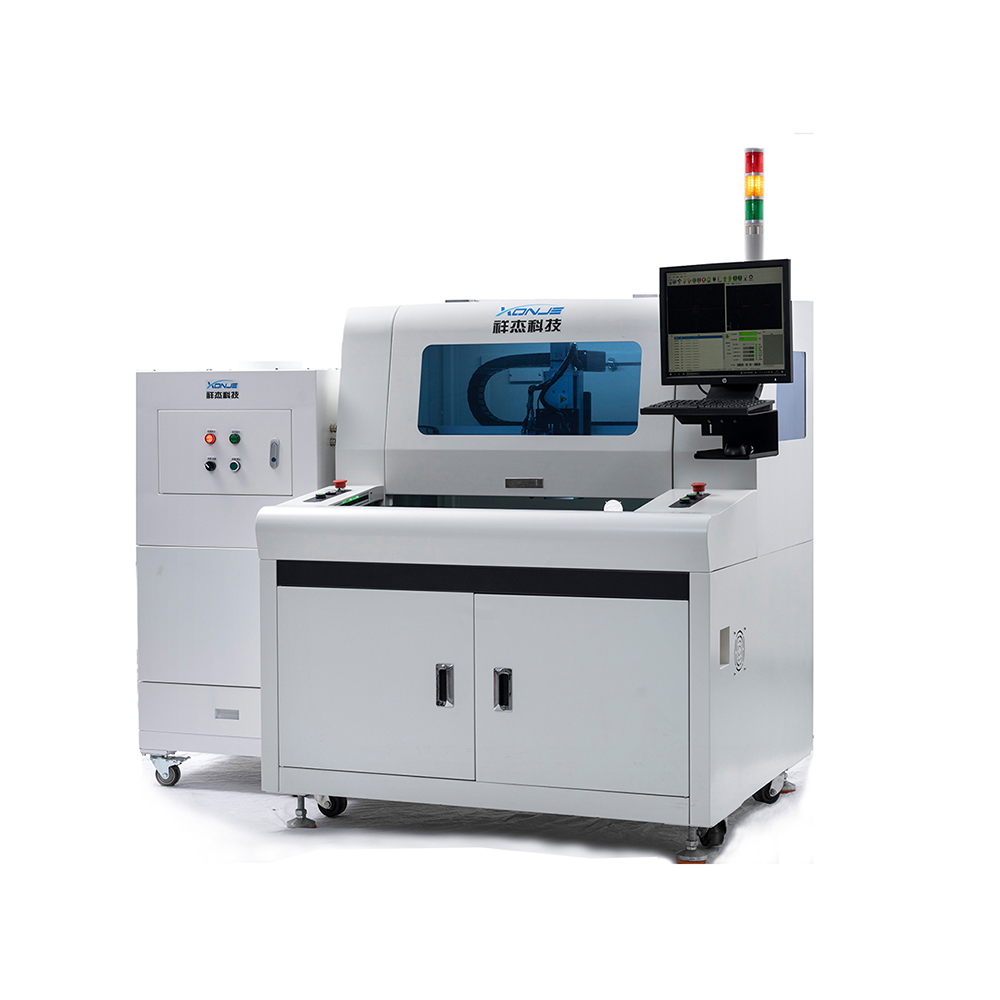

| Model | XJ-800 | XJ-800L |
| Partition area | 330MM*350MM*2workstations | 450MM*450MM*workstations |
| Dual Workbench Shared | Support for synchronization |
| module | C5 grinding grade |
| positioning accuracy | ± 0.01mm |
| Splitting accuracy | ± 0.02mm |
| servo system | Four axis servo motor |
| Spindle speed | 60000 rpm/min |
| Spindle tool | 0.8mm-3mm |
| Cutting speed | 1mm/sec~100mm/sec |
| Cutting function | Straight line, L-shaped, U-shaped, circular arc, full circle, etc |
| Control main mode | Patent software+industrial computer |
| Electrostatic treatment | Electrostatic eliminator |
| Dust collection method | Up suction/down suction |
| Scan MES function | Support (optional) |
| Working air pressure | 5~7kg/cm² |
| working voltage | Three phase five wire 380V 4kw (including dust collector) | Three phase five wire 380V 4kw (including dust collector) |
| Dust collector size | 1050mm*800mm*550mm | 1050mm*800mm*550mm |
| Machine size | 1270mm*1200mm*1850mm | 1570mm*1500mm*1850mm |
| machine weight | 680kg | 750kg |
