Product Features:
1. Realize unmanned production, suitable for cutting PCBA boards connected to V-CUT;
2. Suitable for V rough PCB splitting of fiberboard, aluminum substrate, and copper substrate;

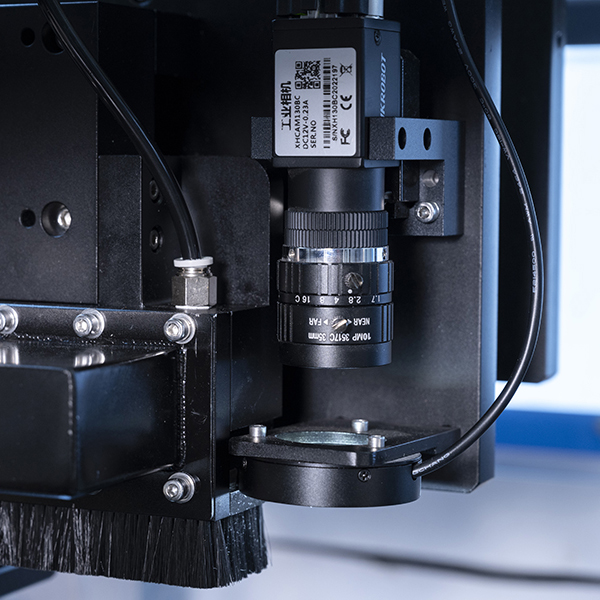

3. Mark point automatic correction cutting solves the problem of incoming material deviation for different batches of products;

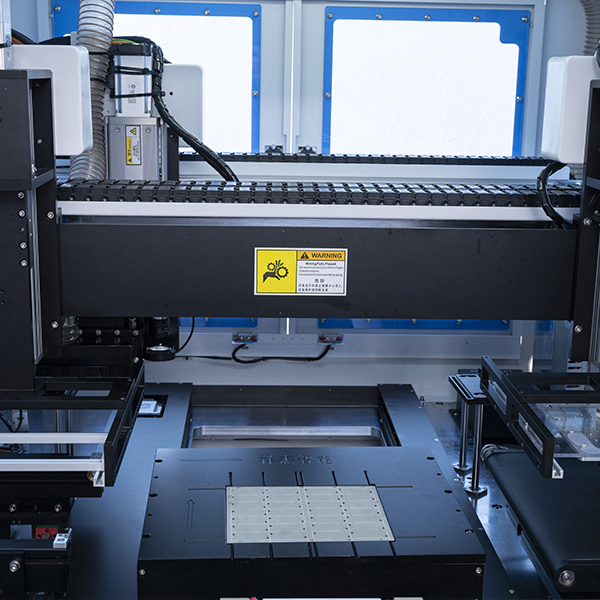

4. Equipped with cutting path and image display functions, the actual cutting path corresponds to PCB images in real-time, with strong visualization;
5. Equipped with tool depth management function, suitable for deep cutting with components on the reverse side of the cutting point, ensuring good PCBA cutting without damaging components;
6. Patented design for real-time cutting and dust removal process;
7. Can completely solve the problem of cross V-slot cutting of components;
8. The stress on the dividing plate is extremely low, around 200MIC, and the cutting surface is flat and bright;
Product Parameter:
| Parameter | Specification |
| Working mode | Online |
| Number of workstations | Single workstation |
| Partition area | 300 × 300 mm |
| Control method | PC control computer + servo |
| Splitting speed | 0–100 mm/s |
| Component height | Max height: front side 10 mm, reverse side 10 mm |
| Repetitive accuracy | ±0.02 mm |
| Splitting accuracy | ±0.05 mm |
| Working voltage | AC 380V, 5 kW |
| Working air pressure | 0.5–0.7 MPa |
| Spindle speed | 0–40,000 RPM |
| Plate thickness range | 0–6 mm |
| Vacuum suction method | Upper suction |
| Weight | 800 kg |
| External dimensions | 1200 mm (L) × 1100 mm (W) × 1650 mm (H) |
