Product Features:

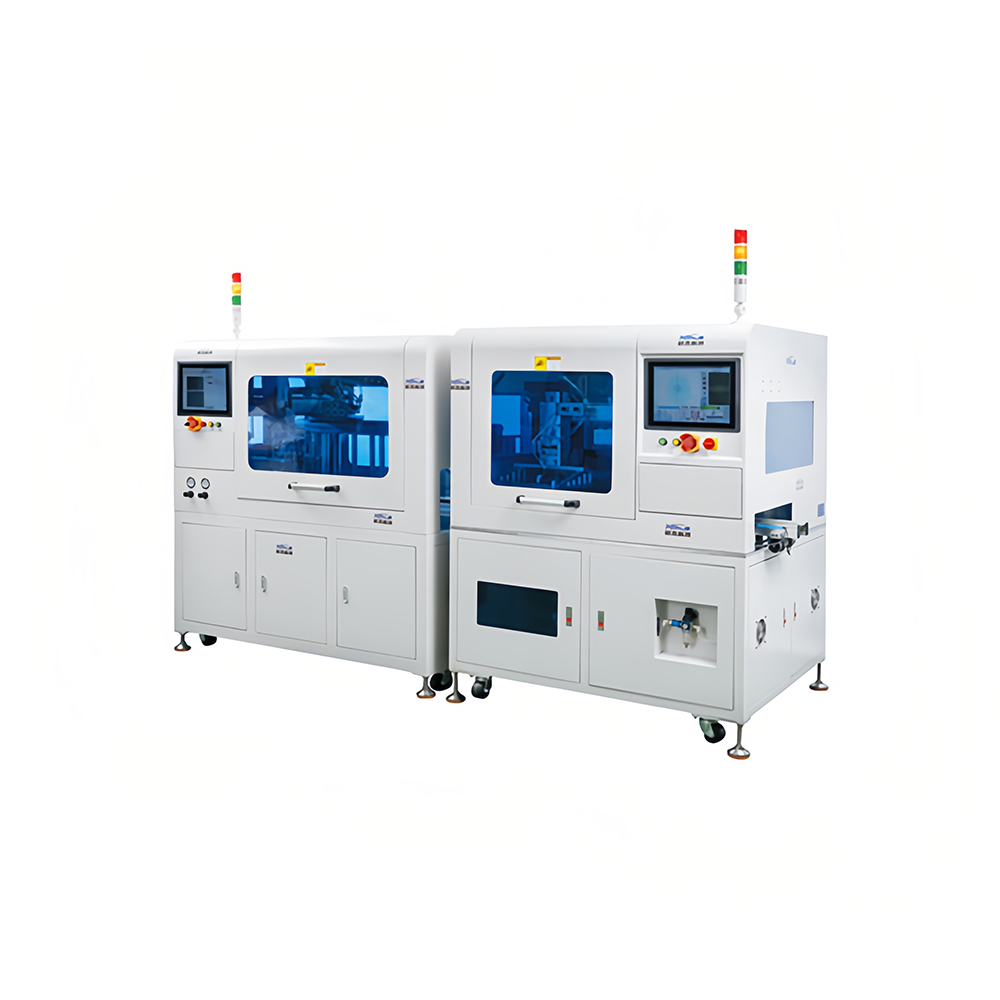

online multifunctional board splitting machine (milling cutter+saw blade) XJ-Z600:
1. Fully automatic unmanned production line;
2. Suitable for cutting PCBA boards with different connection methods, such as stamp hole connection, V-CUT connection, and hybrid connection;
3. Especially for aluminum substrate and copper substrate, the cutting effect is better;
4. The device is equipped with dual spindles, flexible switching, arbitrary setting, automatic switching, and can be used alone or simultaneously;
5. Patent designed follow-up dust system;
6. Visual Mark points automatically correct cutting, solving the problem of incoming material deviation for different batches of products;
7. Professional board splitting software equipped with industrial control computers for fast real-time data storage, sharing, uploading, and other MES functions;
8. Equipped with cutting path and image display functions, the actual cutting path corresponds to PCB images in real-time, with strong visualization;
9. Equipped with tool depth management function, suitable for deep cutting with components on the reverse side of the cutting point, ensuring good PCBA cutting without damaging components;
Product Parameter:
| Parameter | Specification |
| Working mode | Online |
| Number of workbenches | Single station, 360° rotation |
| Partition area | 300 × 300 mm |
| Control method | PC industrial computer |
| Drive mode | Motion control card + servo motor |
| Splitting speed | 0–100 mm/s |
| Milling cutter speed | 0–60,000 RPM |
| Saw blade speed | 0–40,000 RPM |
| Repetitive accuracy | ±0.02 mm |
| Cutting accuracy | ±0.05 mm |
| Plate thickness range | 0–6 mm |
| Working voltage | AC 380V, 5 kW |
| Working air pressure | 0.5–0.7 MPa |
| Vacuum suction method | Upper suction |
| Weight | 800 kg |
| External dimensions | 1800 mm (L) × 1500 mm (W) × 2200 mm (H) |
